SLD-12 Series
Manufacturer: SolaHD
Beta
⌘K
AC/DC CONVERTER +/-12V 24W
| Part | Type | Voltage - Output 2 | Mounting Type | Power (Watts) | Current - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Number of Outputs | Applications | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Current - Output 2 | Size / Dimension | Size / Dimension | Approval Agency | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

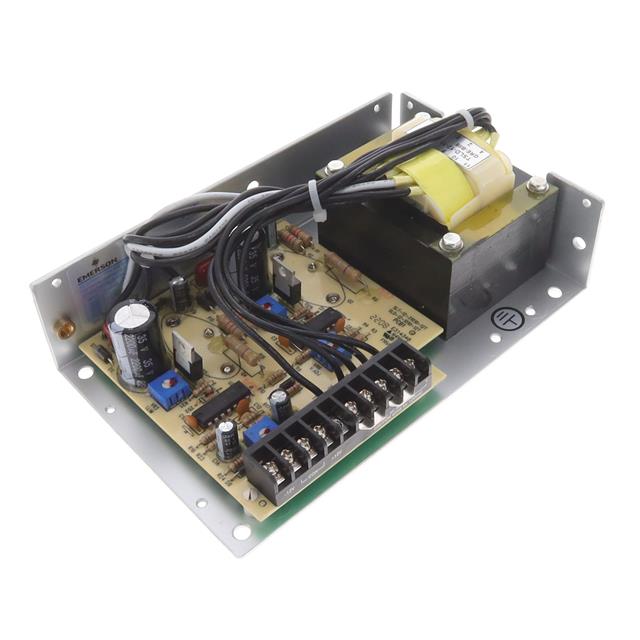

 SolaHD | Open Frame | -12 V | Chassis Mount | 24 W | 1 A | 100 VAC | 240 VAC | 2 | ITE (Commercial) | Adjustable Output Remote Sense | 50 °C | 0 °C | 12 V | 1 A | 6.5 " 41.1 mm 101.6 mm | 1.62 " 4 in 6.5 " | CSA cURus | ||||||||

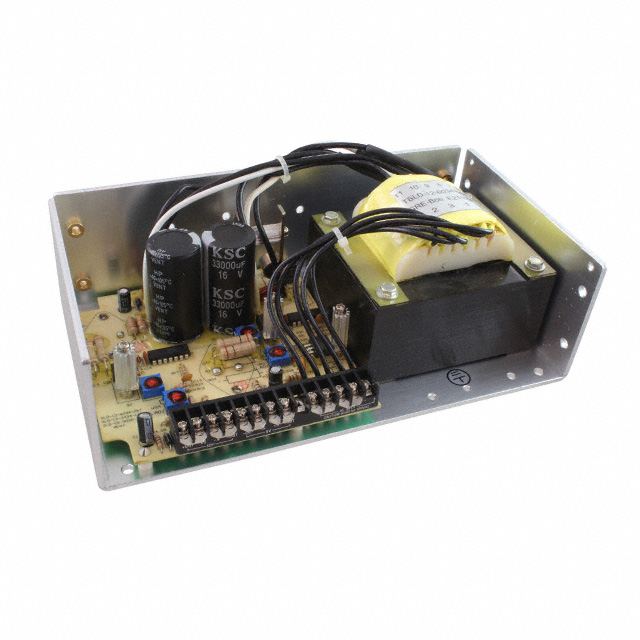

 SolaHD | Open Frame | 12 V | Chassis Mount | 71 W | 6 A | 100 VAC | 240 VAC | 2 | ITE (Commercial) | Adjustable Output Remote Sense | 50 °C | 0 °C | 5 V | 3.4 A | CSA cURus | 4.87 in | 123.7 mm | 9 in | 2.75 in | 69.9 mm | 228.6 mm | ||||

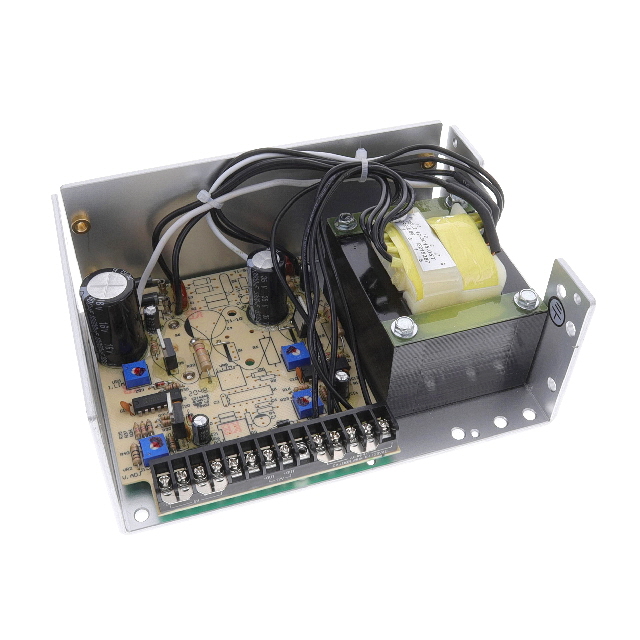

 SolaHD | Open Frame | 12 V | Chassis Mount | 33 W | 3 A | 100 VAC | 240 VAC | 2 | ITE (Commercial) | Adjustable Output Remote Sense | 50 °C | 0 °C | 5 V | 1.5 A | 177.8 mm | CSA cURus | 4.87 in | 7 " | 2.75 in | 69.9 mm | 123.7 mm | ||||

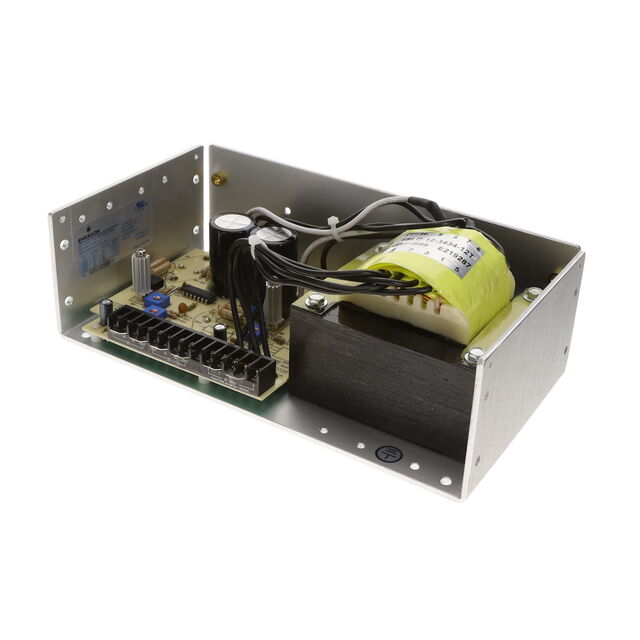

 SolaHD | Open Frame | -12 V | Chassis Mount | 82 W | 3.4 A | 100 VAC | 240 VAC | 2 | ITE (Commercial) | Adjustable Output Remote Sense | 50 °C | 0 °C | 12 V | 3.4 A | CSA cURus | 4.87 in | 123.7 mm | 9 in | 2.75 in | 69.9 mm | 228.6 mm |
