FMA1-08038 Series
Manufacturer: Qualtek
Beta
⌘K

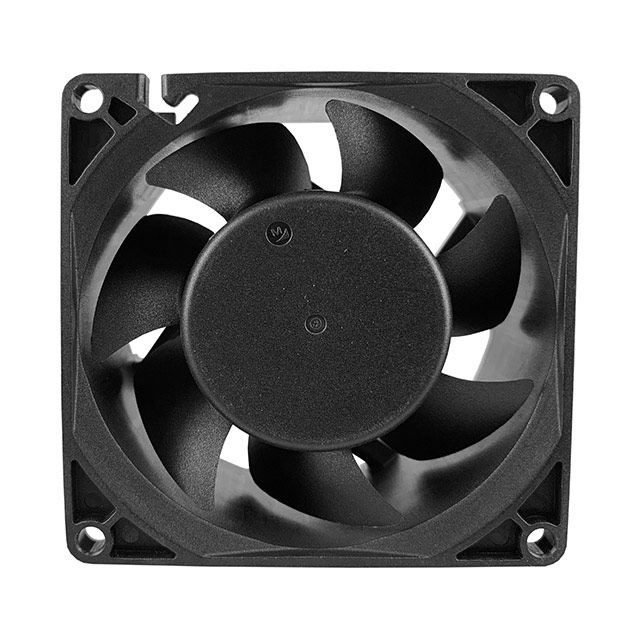

EC FAN, 80X80X38MM, 2-BALL BEARI
| Part | Current Rating (Amps) | Lifetime @ Temp. | Air Flow | Air Flow | Material - Blade | Material - Frame | Termination | RPM | Operating Temperature [Min] | Operating Temperature [Max] | Width [y] | Bearing Type | Ingress Protection | Size / Dimension [z] | Size / Dimension [x] | Power (Watts) | Fan Type | Voltage - Rated [Max] | Voltage - Rated [Min] | Features | Static Pressure | Static Pressure | Approval Agency | Noise | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 0.09 A | 70000 Hrs | 41 CFM | 1.15 m³/min | Plastic | Plastic | 2 Wire Leads | 4000 RPM | -20 ░C | 70 °C | 38 mm | Ball | IP54 - Dust Protected Water Resistant | 80 mm | 80 mm | 5.5 W | Tubeaxial | 240 VAC | 100 VAC | Electronic Commutation (EC) | 0.283 in H2O | 70.5 Pa | CE cURus | 31 dB(A) | |
Qualtek | 0.09 A | 70000 Hrs | 41 CFM | 1.15 m³/min | Plastic | Plastic | 4000 RPM | -20 ░C | 70 °C | 38 mm | Ball | IP54 - Dust Protected Water Resistant | 80 mm | 80 mm | 5.5 W | Tubeaxial | 240 VAC | 100 VAC | Electronic Commutation (EC) | 0.283 in H2O | 70.5 Pa | CE cURus | 31 dB(A) | 2 |
