BGC86 Series
Manufacturer: TE Intercontec
Beta
⌘K

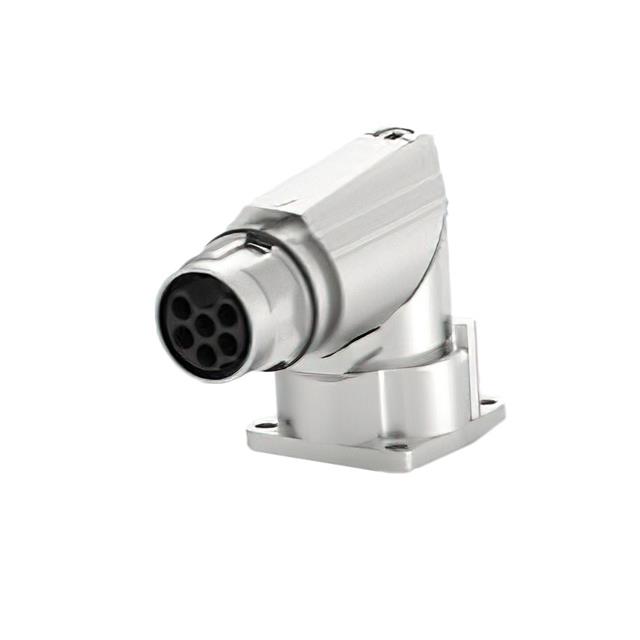

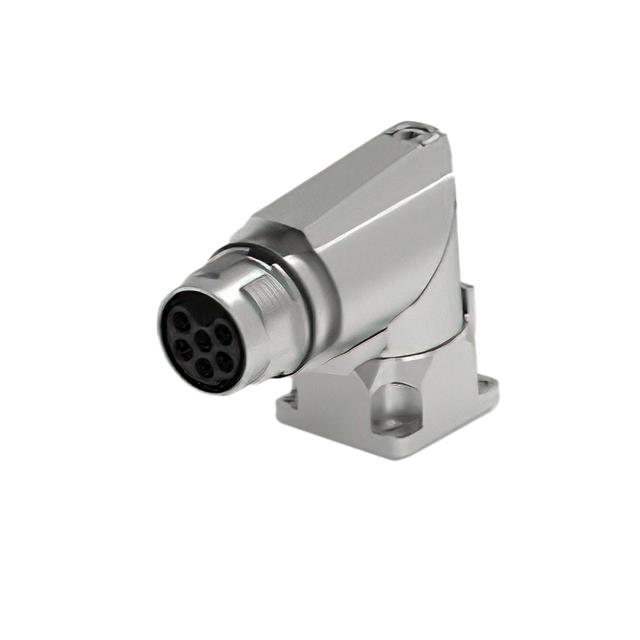

CONN RCPT HSG MALE 7P PNL MT RA
| Part | Type | Note | Shell Material | Mounting Type | Shielding | Number of Positions | Shell Finish | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Housing Color | Shell Size - Insert | Mounting Feature | Insert Material | Contact Shape | Features | Material Flammability Rating | Includes | Fastening Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Intercontec | For Male Pins | Contacts Not Included | Zinc Die Cast | Panel Mount Right Angle | Unshielded | 7 | Chromate | Receptacle Housing | -20 ░C | 130 °C | Keyed | Silver | M17-7 | Flange | Polybutylene Terephthalate (PBT) | Circular | Backshell Rotatable | UL94 V-0 | 1 Backshell 1 Connector 1 O-Ring | Push-Twist | IP66 IP67 |
TE Intercontec | For Male Pins | Contacts Not Included | Zinc Die Cast | Panel Mount Right Angle | Unshielded | 7 | Chromate | Receptacle Housing | -20 ░C | 130 °C | Keyed | Silver | M17-7 | Flange | Polybutylene Terephthalate (PBT) | Circular | Backshell Rotatable | UL94 V-0 | 1 Backshell 1 Connector 1 O-Ring | Push-Twist | IP66 IP67 |
 TE Intercontec | For Male Pins | Contacts Not Included | Zinc Die Cast | Panel Mount Right Angle | Unshielded | 7 | Chromate | Receptacle Housing | -20 ░C | 130 °C | Keyed | Silver | M17-7 | Flange | Polybutylene Terephthalate (PBT) | Circular | Backshell Rotatable | UL94 V-0 | 1 Backshell 1 Connector 1 O-Ring | Push-Twist | IP66 IP67 |
