74F Series

Catalog

FIXED IND 1.2UH 950MA 220MOHM TH

Part	Frequency - Self Resonant	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Type	Shielding	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Tolerance	Package / Case	Inductance	Current Rating (Amps)	Material - Core	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq	DC Resistance (DCR)	Q @ Freq [custom]
Bourns Inc. 74F126AP-RC	174 MHz	Through Hole	-55 C	125 °C	Wirewound	Unshielded	220 mOhm	7.96 MHz	12.7 mm	5.08 mm	0.2 in	0.5 "	20 %	Axial	1.2 µH	950 mA	Phenolic

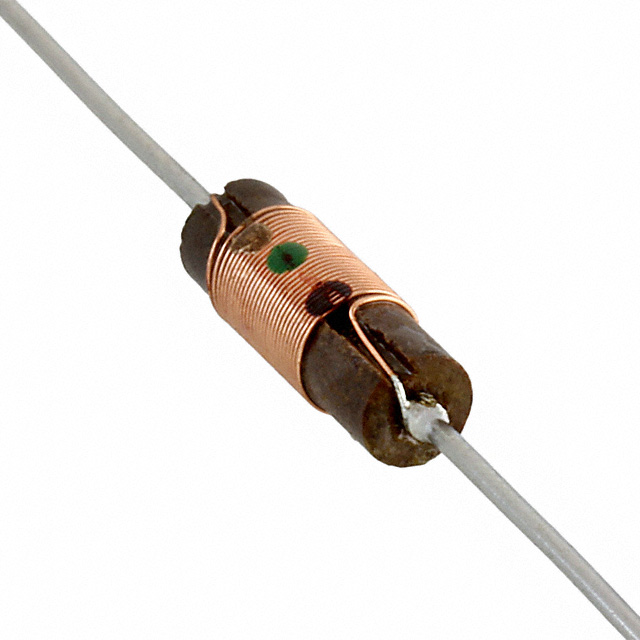

Bourns Inc. 74F156AP-RC	160 MHz	Through Hole	-55 C	125 °C	Wirewound	Unshielded	250 mOhm	7.96 MHz	12.7 mm	5.08 mm	0.2 in	0.5 "	20 %	Axial	1.5 µH	900 mA	Phenolic
Bourns Inc. 74F565AI-RC	18 MHz	Through Hole	-55 C	105 ░C	Drum Core Wirewound	Unshielded	3.75 Ohm	2.52 MHz	12.7 mm	5.08 mm	0.2 in	0.5 "	10 %	Axial	56 µH	0.3 A	Iron	2.52 MHz	90
Bourns Inc. 74F686AP-3%-RC	75 MHz	Through Hole	-55 C	125 °C	Wirewound	Unshielded	1.85 Ohm	7.96 MHz	12.7 mm	5.08 mm	0.2 in	0.5 "	10 %	Axial	6.8 µH	0.3 A	Phenolic			7.96 MHz 50
Bourns Inc. 74F336AP	108 MHz	Through Hole	-55 C	125 °C	Wirewound	Unshielded		7.96 MHz	12.7 mm	5.08 mm	0.2 in	0.5 "	20 %	Axial	3.3 µH	600 mA	Phenolic				700 mOhm
Bourns Inc. 74F566AP-RC		Through Hole	-55 C	125 °C	Wirewound	Unshielded	1.8 Ohm	7.96 MHz	12.7 mm	5.08 mm	0.2 in	0.5 "	10 %	Axial	5.6 µH	350 mA	Phenolic			7.96 MHz 50
Bourns Inc. 74F686AP-3%-TR-RC
Bourns Inc. 74F275AI-RC	26 MHz	Through Hole	-55 C	105 ░C	Drum Core Wirewound	Unshielded	1.85 Ohm	2.52 MHz	12.7 mm	5.08 mm	0.2 in	0.5 "	10 %	Axial	27 µH	0.45 A	Iron			2.52 MHz 80
Bourns Inc. 74F475AI-RC	19 MHz	Through Hole	-55 C	105 ░C	Drum Core Wirewound	Unshielded	3.5 Ohm	2.52 MHz	12.7 mm	5.08 mm	0.2 in	0.5 "	10 %	Axial	47 µH	350 mA	Iron	2.52 MHz	90
Bourns Inc. 74F225AI-RC	28 MHz	Through Hole	-55 C	105 ░C	Drum Core Wirewound	Unshielded	2 Ohm	2.52 MHz	12.7 mm	5.08 mm	0.2 in	0.5 "	10 %	Axial	22 µH	0.5 A	Iron		85			2.52 MHz
