833-027 Series
Manufacturer: EDAC Inc.
Beta
⌘K

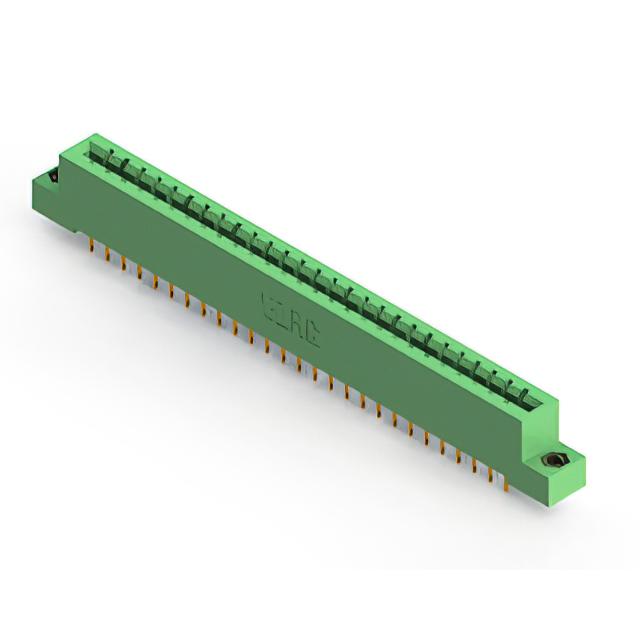

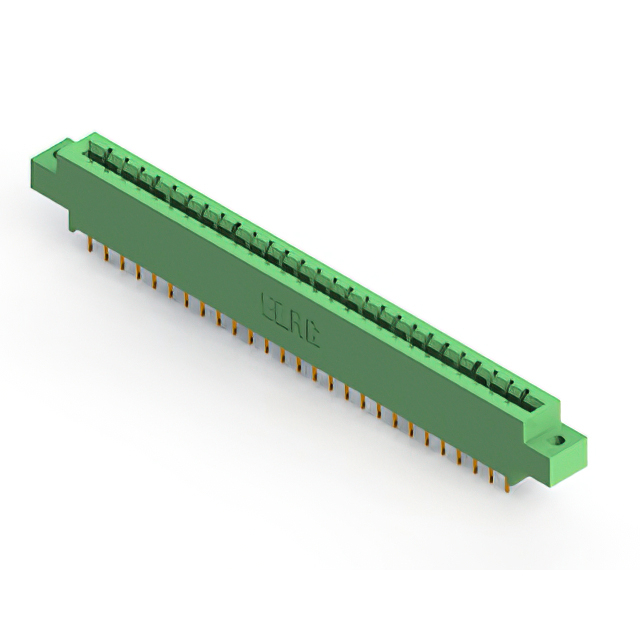

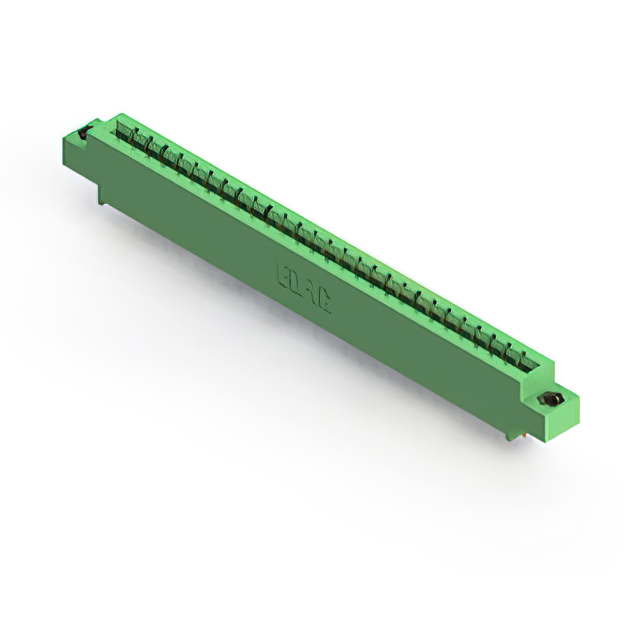

CONN EDGE SGL FMALE 27POS 0.156
| Part | Termination Rows | Material - Insulation | Contact Type | Gender | Number of Positions/Bay/Row | Contact Finish | Read Out | Color | Termination | Card Thickness [Max] | Card Thickness [Min] | Flange Feature | Card Type | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Cantilever | Female | 27 | Gold | Single | Green | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | 27 | 125 °C | -40 C | Right Angle Through Hole | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | Copper Alloy | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Cantilever | Female | 27 | Gold | Single | Green | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Flush Mount | Non Specified - Single Edge | 27 | 125 °C | -40 C | Through Hole | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | Copper Alloy | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Cantilever | Female | 27 | Gold | Single | Green | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Top Mount Opening | Non Specified - Single Edge | 27 | 125 °C | -40 C | Right Angle Through Hole | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | Copper Alloy | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Cantilever | Female | 27 | Gold | Single | Green | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 27 | 125 °C | -40 C | Through Hole | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | Copper Alloy | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Cantilever | Female | 27 | Gold | Single | Green | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | Non Specified - Single Edge | 27 | 125 °C | -40 C | Through Hole | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | Copper Alloy | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Cantilever | Female | 27 | Gold | Single | Green | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 27 | 125 °C | -40 C | Through Hole | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | Copper Alloy | 0.128 " | 3.25 mm | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Cantilever | Female | 27 | Gold | Single | Green | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 27 | 125 °C | -40 C | Right Angle Through Hole | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | Copper Alloy | 0.128 " | 3.25 mm | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Cantilever | Female | 27 | Gold | Single | Green | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Flush Mount | Non Specified - Single Edge | 27 | 125 °C | -40 C | Through Hole | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | Copper Alloy | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Cantilever | Female | 27 | Gold | Single | Green | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 27 | 125 °C | -40 C | Through Hole | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | Copper Alloy | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Cantilever | Female | 27 | Gold | Single | Green | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 27 | 125 °C | -40 C | Through Hole | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | Copper Alloy | 0.156 " | 3.96 mm |
