MPQ8847 Series

Catalog

SWITCHING VOLTAGE REGULATORS 6A, 2.7V-6V, HIGH-EFFICIENCY, SYNCHRONOUS,STEP-DOWN SWITCHER WITH I2C INTERFACEIN 2.5X3MM QFN, AEC-Q100 QUALIFIED

Part	Qualification	Current - Output	Frequency - Switching [Max]	Frequency - Switching [Min]	Supplier Device Package	Voltage - Input (Min) [Min]	Voltage - Output (Min/Fixed)	Number of Outputs	Function	Synchronous Rectifier	Voltage - Output (Max) [Max]	Output Configuration	Output Type	Voltage - Input (Max) [Max]	Package / Case	Mounting Type	Topology	Grade	Operating Temperature [Min]	Operating Temperature [Max]

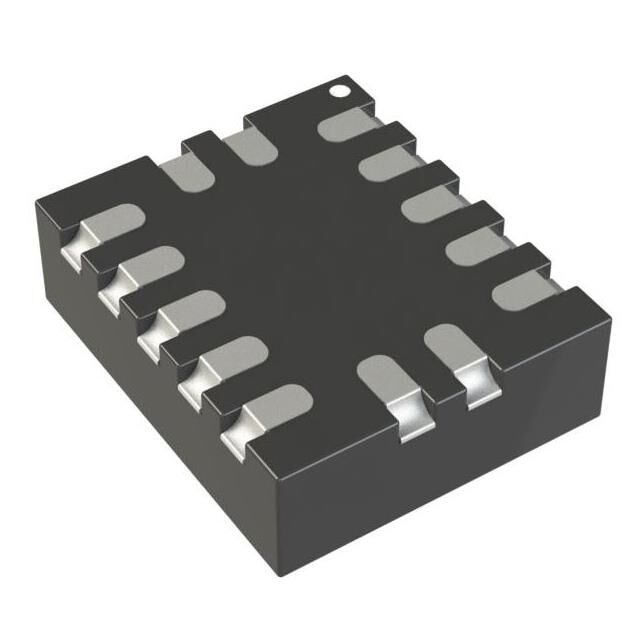

Monolithic Power Systems Inc. MPQ8847AGQB-AEC1-P	AEC-Q100	6 A	2.2 MHz	850 kHz	14-QFN (2.5x3)	2.7 V	0.6 V	1	Step-Down		1.235 V	Positive	Programmable	6 V	14-VFQFN	Surface Mount Wettable Flank	Buck	Automotive	-40 C	125 °C
Monolithic Power Systems Inc. MPQ8847AGQB-AEC1-Z	AEC-Q100	6 A	2.2 MHz	850 kHz	14-QFN (2.5x3)	2.7 V	0.6 V	1	Step-Down		1.235 V	Positive	Programmable	6 V	14-VFQFN	Surface Mount Wettable Flank	Buck	Automotive	-40 C	125 °C
