CFS Series

Manufacturer: Nidec Components Corporation

Catalog

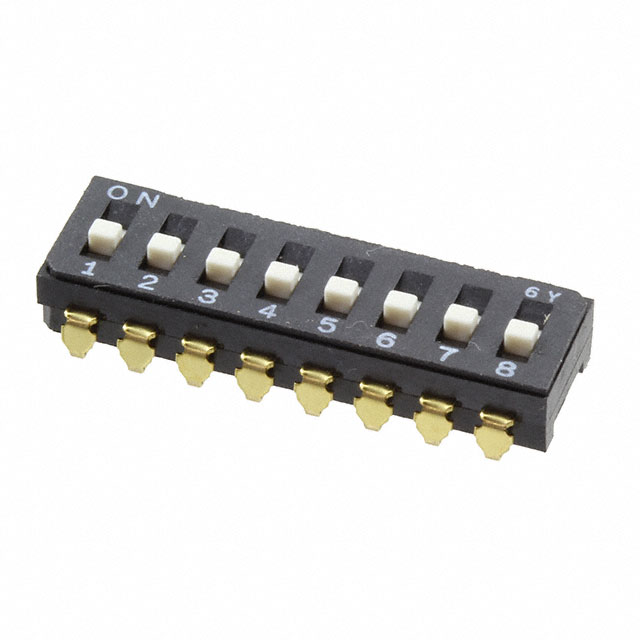

SLIDE SWITCHES OFF-ON 8 POSITION DIP SWITCH, .6MM RAISED ACTUATOR, 100MA @ 6V DC, J-HOOK SMD TERMINALS, T&R 800 PC PACKAGING, NON-WASHABLE

Part	Electrical Life	Body Material	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Height Above Board [z]	Height Above Board [z]	Number of Positions	Actuator Level	Contact Material	Current Rating (Amps)	Pitch	Pitch	Voltage Rating	Mounting Type	Circuit	Actuator Type	Contact Finish	Length	Length	Features	Height Above Board	Height Above Board
Nidec Components Corporation CFS-0802TA	1000 Cycles	Polyphenylene Sulfide (PPS)	21.8 mm	0.858 in	85 °C	-40 C	J Lead	0.177 in	4.5 mm	8	Raised	Copper Alloy	100 mA	2.54 mm	0.1 "	6 V	Surface Mount	SPST	Slide (Standard)	Gold
Nidec Components Corporation CFS-0803MB	1000 Cycles	Polyphenylene Sulfide (PPS)	21.8 mm	0.858 in	85 °C	-40 C	Gull Wing	0.185 in	4.7 mm	8	Raised	Copper Alloy	100 mA	2.54 mm	0.1 "	6 V	Surface Mount	SPST	Slide (Standard)	Gold
Nidec Components Corporation CFS-0301MC	1000 Cycles	Polyphenylene Sulfide (PPS)			85 °C	-40 C	PC Pin	0.177 in	4.5 mm		Flush Recessed	Copper Alloy	100 mA	2.54 mm	0.1 "	6 V	Through Hole	SPST	Slide (Standard)	Gold	0.356 in	9.04 mm

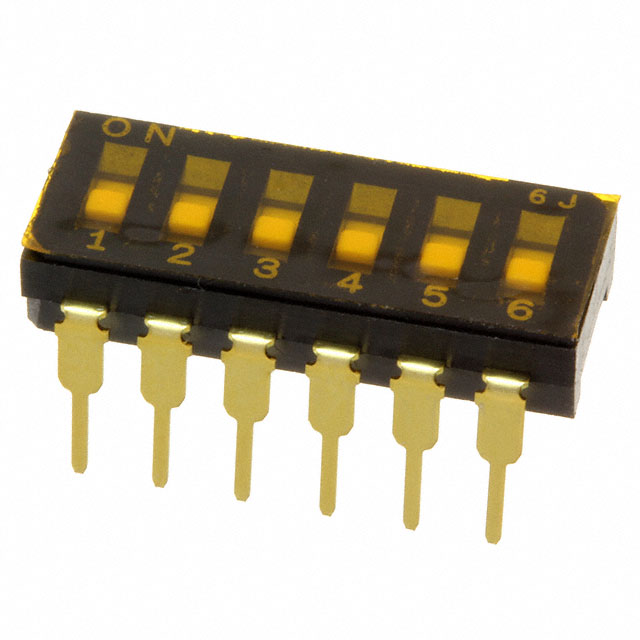

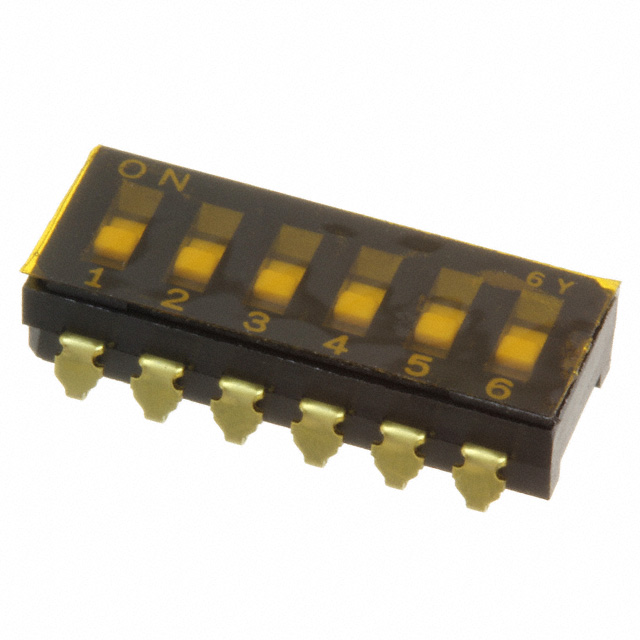

Nidec Components Corporation CFS-0600MC	1000 Cycles	Polyphenylene Sulfide (PPS)		0.657 "	85 °C	-40 C	PC Pin	0.177 in	4.5 mm	6	Flush Recessed	Copper Alloy	100 mA	2.54 mm	0.1 "	6 V	Through Hole	SPST	Slide (Standard)	Gold		16.7 mm	Tape Seal
Nidec Components Corporation CFS-0201TB	1000 Cycles	Polyphenylene Sulfide (PPS)	6.5 mm	0.256 in	85 °C	-40 C	Gull Wing	0.146 in	3.7 mm	2	Flush Recessed	Copper Alloy	100 mA	2.54 mm	0.1 "	6 V	Surface Mount	SPST	Slide (Standard)	Gold
Nidec Components Corporation CFS-0800MC					85 °C	-40 C	PC Pin	0.177 in	4.5 mm	8	Flush Recessed	Copper Alloy	100 mA	2.54 mm	0.1 "	6 V	Through Hole	SPST	Slide (Standard)	Gold			Tape Seal
Nidec Components Corporation CFS-0301MB	1000 Cycles	Polyphenylene Sulfide (PPS)			85 °C	-40 C	Gull Wing	0.146 in	3.7 mm		Flush Recessed	Copper Alloy	100 mA	2.54 mm	0.1 "	6 V	Surface Mount	SPST	Slide (Standard)	Gold	0.356 in	9.04 mm
Nidec Components Corporation CFS-0102MB	1000 Cycles	Polyphenylene Sulfide (PPS)			85 °C	-40 C	Gull Wing			1	Raised	Copper Alloy	100 mA	2.54 mm	0.1 "	6 V	Surface Mount	SPST	Slide (Standard)	Gold	0.156 in	3.96 mm		0.169 in	4.3 mm
Nidec Components Corporation CFS-1002MA	1000 Cycles	Polyphenylene Sulfide (PPS)	26.9 mm	1.059 "	85 °C	-40 C	J Lead	0.178 in	4.52 mm	10	Raised	Copper Alloy	100 mA	2.54 mm	0.1 "	6 V	Surface Mount	SPST	Slide (Standard)	Gold
Nidec Components Corporation CFS-0300MA	1000 Cycles	Polyphenylene Sulfide (PPS)			85 °C	-40 C	J Lead	0.154 in	3.9 mm		Flush Recessed	Copper Alloy	100 mA	2.54 mm	0.1 "	6 V	Surface Mount	SPST	Slide (Standard)	Gold	0.356 in	9.04 mm	Tape Seal
