9207 Series
Manufacturer: Belden Inc.
Beta
⌘K

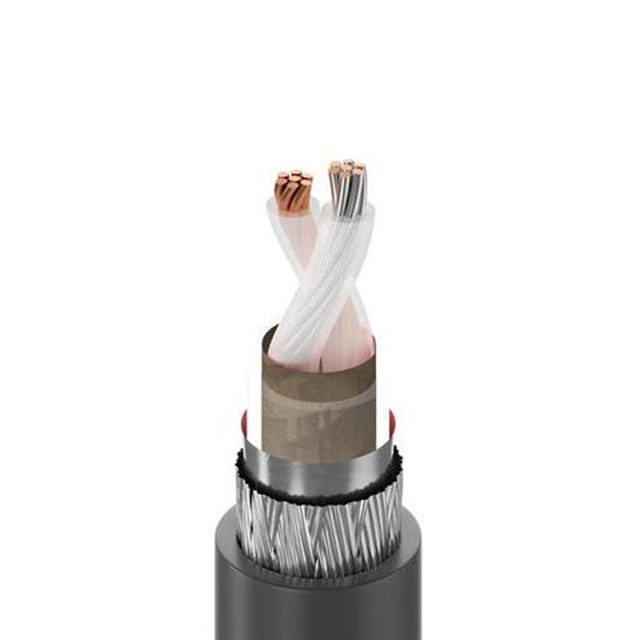

TWINAX 20AWG 100 OHM
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Shield Material | Shield Coverage | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Conductor Material | VoP, Velocity of Propagation | Jacket (Insulation) Material | Impedance | Wire Gauge | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Conductor Strand | Conductor Strand [custom] | Shield Type | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 75 ░C | -30 ░C | Aluminum Copper Tinned | 85 % 100 % | 2.11 mm | 0.083 in | Copper Bare Copper Tinned | 66 | Poly-Vinyl Chloride (PVC) | 100 Ohms | 20 AWG | Twinaxial | 0.33 in | 8.38 mm | Black | 28 AWG (2) | 7 Strands | Braid Foil | ||||
 Belden Inc. | 75 ░C | -30 ░C | Aluminum Copper Tinned | 85 % 100 % | 5.99 mm | 0.236 in | Copper Bare Copper Tinned | 66 | Poly-Vinyl Chloride (PVC) | 100 Ohms | 20 AWG | Twinaxial | 0.33 in | 8.38 mm | Black | 28 AWG (2) | 7 Strands | Braid Foil | 100 ' | 30.48 m | ||
Belden Inc. | 75 ░C | -30 ░C | Aluminum Copper Tinned | 85 % 100 % | 2.11 mm | 0.083 in | Copper Bare Copper Tinned | 66 | Poly-Vinyl Chloride (PVC) | 100 Ohms | 20 AWG | Twinaxial | 0.33 in | 8.38 mm | Black | 28 AWG (2) | 7 Strands | Braid Foil | 152.4 m | 500 ft |
