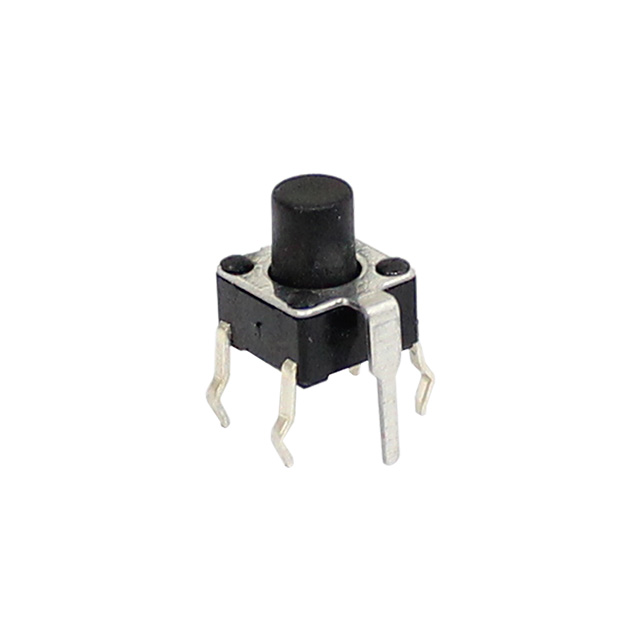

CT1102P7 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Switch Travel	Actuator Material	Contact Rating @ Voltage	Switch Function	Mounting Type	Circuit	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Operating Force	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Illumination	Outline [x]	Outline [y]	Actuator Height off PCB, Vertical
CIT Relay and Switch CT1102P7.0F260	0.25 mm	Nylon 6/6 Polyamide (PA66)	0.05 A 50 VDC	Off-Mom	Through Hole	SPST-NO	PC Pin	85 °C	-40 C	Plunger for Cap	260 gf	Top Actuated	7 mm	Non-Illuminated	6 mm	6 mm

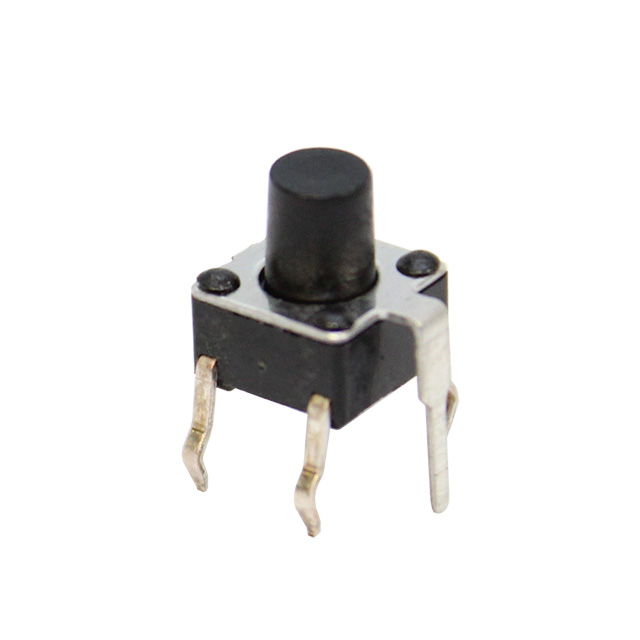

CIT Relay and Switch CT1102P7.5F100	0.25 mm	Nylon 6/6 Polyamide (PA66)	0.05 A 50 VDC	Off-Mom	Through Hole	SPST-NO	PC Pin	85 °C	-40 C	Plunger for Cap	100 gf	Top Actuated		Non-Illuminated	6 mm	6 mm	7.5 mm
CIT Relay and Switch CT1102P7.5F260	0.25 mm	Nylon 6/6 Polyamide (PA66)	0.05 A 50 VDC	Off-Mom	Through Hole	SPST-NO	PC Pin	85 °C	-40 C	Plunger for Cap	260 gf	Top Actuated		Non-Illuminated	6 mm	6 mm	7.5 mm
CIT Relay and Switch CT1102P7.0F100	0.25 mm	Nylon 6/6 Polyamide (PA66)	0.05 A 50 VDC	Off-Mom	Through Hole	SPST-NO	PC Pin	85 °C	-40 C	Plunger for Cap	100 gf	Top Actuated	7 mm	Non-Illuminated	6 mm	6 mm
CIT Relay and Switch CT1102P7.0F160	0.25 mm	Nylon 6/6 Polyamide (PA66)	0.05 A 50 VDC	Off-Mom	Through Hole	SPST-NO	PC Pin	85 °C	-40 C	Plunger for Cap	160 gf	Top Actuated	7 mm	Non-Illuminated	6 mm	6 mm
CIT Relay and Switch CT1102P7.5F160	0.25 mm	Nylon 6/6 Polyamide (PA66)	0.05 A 50 VDC	Off-Mom	Through Hole	SPST-NO	PC Pin	85 °C	-40 C	Plunger for Cap	160 gf	Top Actuated		Non-Illuminated	6 mm	6 mm	7.5 mm
