1408152 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

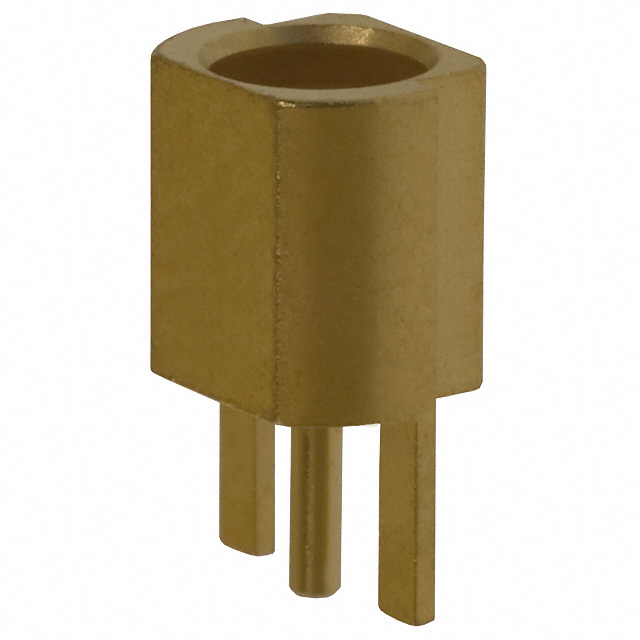

CONN MMCX JACK STR 50OHM EDGEMNT
| Part | Center Contact Plating | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Voltage Rating | Body Finish | Dielectric Material | Connector Type | Contact Termination | Fastening Type | Frequency - Max [Max] | Housing Color | Number of Ports | Shield Termination | Mounting Type | Connector Style | Impedance | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold | Brass | 155 C | -55 C | 500 | 170 V | Gold | Polytetrafluoroethylene (PTFE) | Female Socket Jack | Solder | Snap-On | 6000 MHz | Gold | 1 | Solder | Board Edge Cutout Surface Mount | MMCX | 50 Ohms | Beryllium Copper |
