747051 Series

Catalog

CONN D-SUB RCPT 9POS IDC

Part	Color	Dielectric Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Material Flammability Rating	Number of Rows [custom]	Number of Positions	Features	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish	Flange Feature	Flange Feature	Connector Type	Termination	Connector Style	Mounting Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Shell Size, Connector Layout

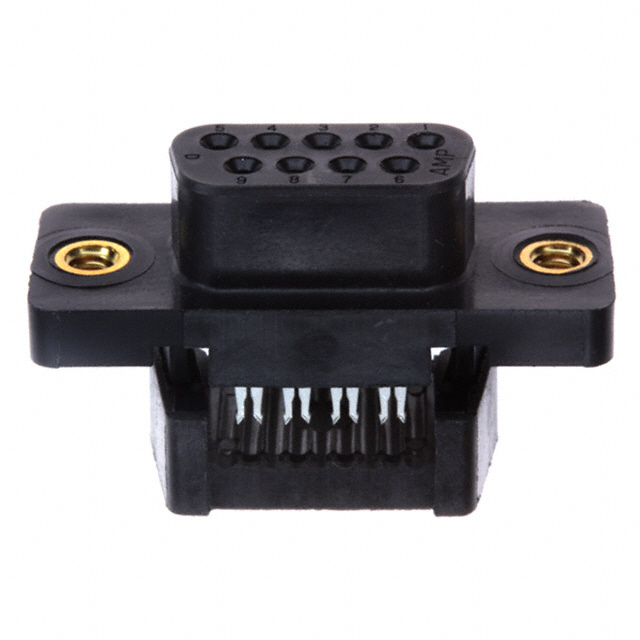

TE Connectivity AMP Connectors 747051-4	Black	Thermoplastic	Phosphor Bronze	-55 C	105 ░C	1.25 A	UL94 V-0	2	9	Feed Through	1	DE E	Gold	Housing/Shell	4-40	Receptacle Female Sockets	IDC Ribbon Cable	D-Sub	Free Hanging (In-Line)	Signal	30 Áin	0.76 Ám

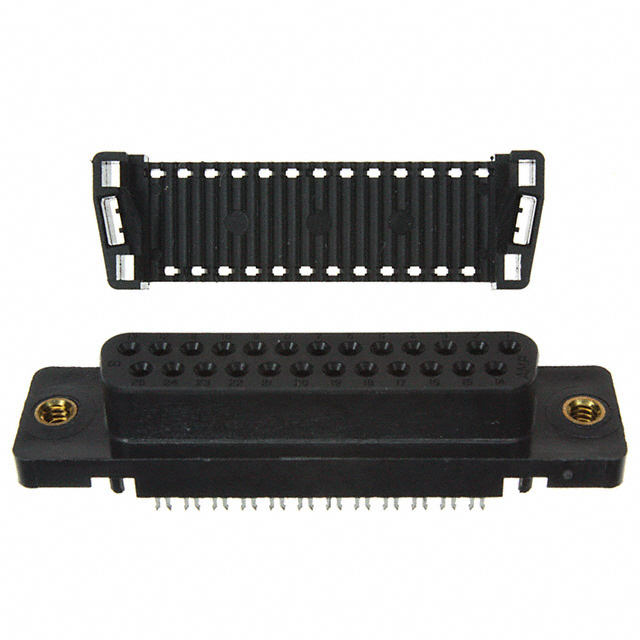

TE Connectivity AMP Connectors 747051-2	Black	Thermoplastic	Phosphor Bronze	-55 C	105 ░C	1.25 A	UL94 V-0	2	25	Feed Through			Gold	Housing/Shell	4-40	Receptacle Female Sockets	IDC Ribbon Cable	D-Sub	Free Hanging (In-Line)	Signal	30 Áin	0.76 Ám	B DB	3

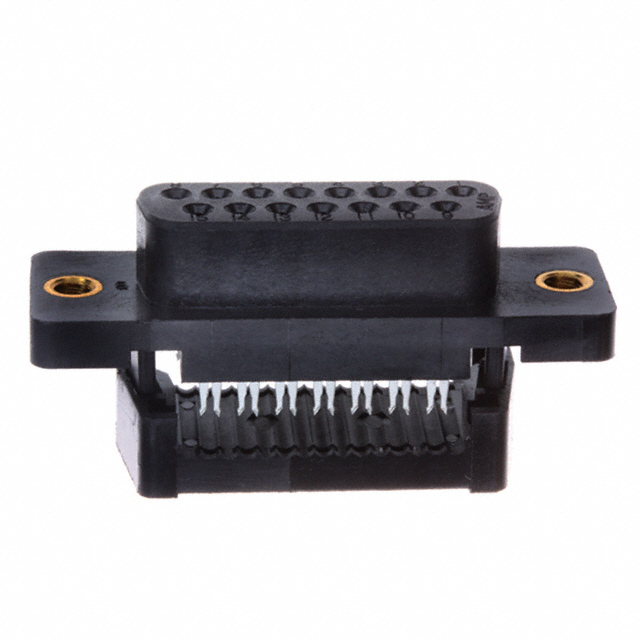

TE Connectivity AMP Connectors 747051-3	Black	Thermoplastic	Phosphor Bronze	-55 C	105 ░C	1.25 A	UL94 V-0	2	15	Feed Through			Gold	Housing/Shell	4-40	Receptacle Female Sockets	IDC Ribbon Cable	D-Sub	Free Hanging (In-Line)	Signal	30 Áin	0.76 Ám			2
