MR30 Series

Catalog

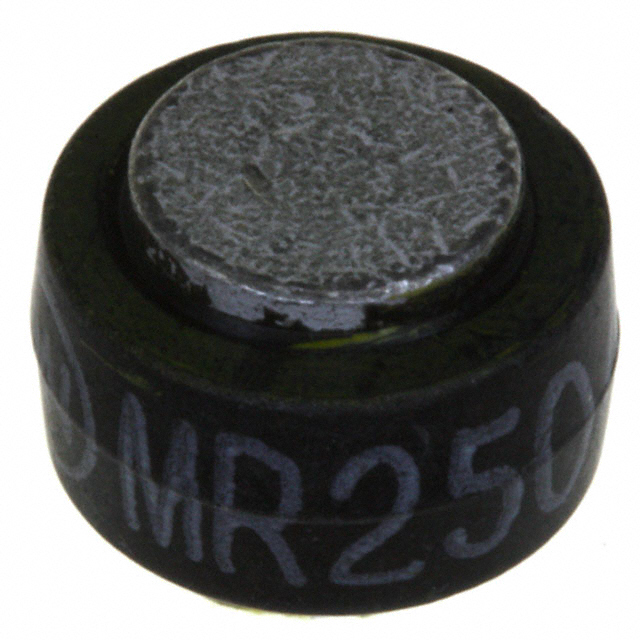

DIODE GP 250V 25A MICRODE BUTTON

Part	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Mounting Type	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Current - Reverse Leakage @ Vr	Supplier Device Package	Wavelength - Peak	Lens Color	Color	Current - Test	Voltage - Forward (Vf) (Typ)	Lens Transparency	Viewing Angle	Height (Max) [Max] [z]	Millicandela Rating	Lens Style	Lens Size	Lens Size	Configuration	Voltage Rating	Lens Type	Current
ON Semiconductor MR3025	1.18 V	25 A	Surface Mount	Standard	175 ░C	-65 C	Standard Recovery >500ns	200 mA	250 V	Microde Button	10 µA	Microde Button
ON Semiconductor MR3051			Through Hole							Radial		T-1 3/4	660 nm	Red	Red	13 mA	12 V	Diffused	60 °	11.56 mm	2 mcd	Round with Domed Top	T-1 3/4	5 mm	Standard
ON Semiconductor MR30509MP5			Through Hole Right Angle												Red						2 mcd	Round with Domed Top	T-1 3/4	5 mm	Single	5 V	Diffused Tinted	13 mA
