78207 Series

Catalog

CONN HEADER R/A 6POS 2.54MM

Part	Mounting Type	Connector Type	Contact Shape	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Material	Insulation Height	Insulation Height	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Style	Contact Finish - Mating	Fastening Type	Number of Rows	Features	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating	Insulation Color
Amphenol ICC (FCI) 78207-506	Through Hole Right Angle	Header	Square	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	Phosphor Bronze	0.303 in	7.7 mm	Male Pin	15 µin	0.38 µm	6	Shrouded - 2 Wall	0.12 in	3.05 mm	All	Board to Cable/Wire	Gold or Gold GXT™	Friction Lock	2	Keying Slot	UL94 V-0	0.23 in	5.84 mm	Black
Amphenol ICC (FCI) 78207-222	Through Hole Right Angle	Header	Square	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	Phosphor Bronze	0.303 in	7.7 mm	Male Pin	15 µin	0.38 µm	22 positions	Shrouded - 2 Wall	0.12 in	3.05 mm	All	Board to Cable/Wire	Gold or Gold GXT™	Friction Lock	2	Keying Slot	UL94 V-0	0.23 in	5.84 mm	Black
Amphenol ICC (FCI) 78207-206HLF	Through Hole Right Angle	Header	Square	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	Phosphor Bronze	0.303 in	7.7 mm	Male Pin	15 µin	0.38 µm	6	Shrouded - 2 Wall	0.12 in	3.05 mm	All	Board to Cable/Wire	Gold or Gold GXT™	Friction Lock	2	Keying Slot	UL94 V-0	0.23 in	5.84 mm	Black

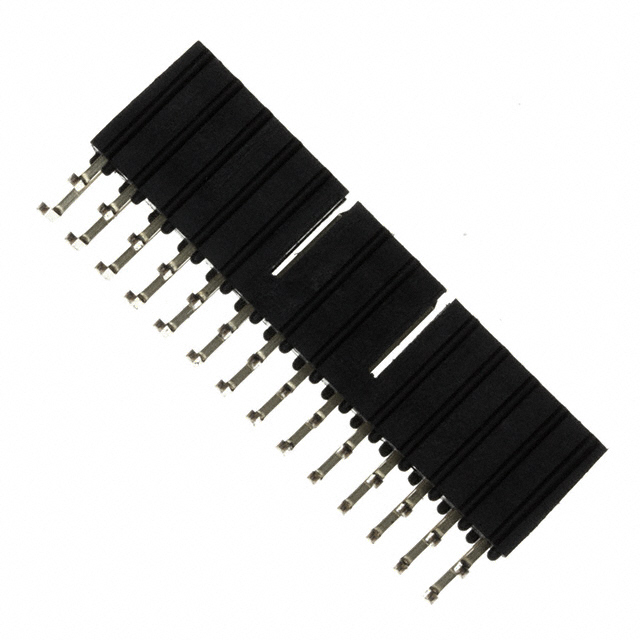

Amphenol ICC (FCI) 78207-128HLF	Through Hole Right Angle	Header	Square	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	Phosphor Bronze	0.303 in	7.7 mm	Male Pin	30 Áin	0.76 Ám	28	Shrouded - 2 Wall	0.12 in	3.05 mm	All	Board to Cable/Wire	Gold or Gold GXT™	Friction Lock	2	Keying Slot	UL94 V-0	0.23 in	5.84 mm	Black
Amphenol ICC (FCI) 78207-512	Through Hole Right Angle	Header	Square	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	Phosphor Bronze	0.303 in	7.7 mm	Male Pin	15 µin	0.38 µm	12	Shrouded - 2 Wall	0.12 in	3.05 mm	All	Board to Cable/Wire	Gold or Gold GXT™	Friction Lock	2	Keying Slot	UL94 V-0	0.23 in	5.84 mm	Black
Amphenol ICC (FCI) 78207-118T	Through Hole Right Angle	Header	Square	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	Phosphor Bronze	0.303 in	7.7 mm	Male Pin	30 Áin	0.76 Ám	18	Shrouded - 2 Wall	0.12 in	3.05 mm	All	Board to Cable/Wire	Gold or Gold GXT™	Friction Lock	2	Keying Slot	UL94 V-0	0.23 in	5.84 mm	Black
Amphenol ICC (FCI) 78207-408	Through Hole Right Angle	Header	Square	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	Phosphor Bronze	0.303 in	7.7 mm	Male Pin	100 çin	2.54 çm	8	Shrouded - 2 Wall	0.12 in	3.05 mm	All	Board to Cable/Wire		Friction Lock	2	Keying Slot	UL94 V-0	0.23 in	5.84 mm	Black
Amphenol ICC (FCI) 78207-414HLF	Through Hole Right Angle	Header	Square	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	Phosphor Bronze	0.303 in	7.7 mm	Male Pin	100 çin	2.54 çm	14	Shrouded - 2 Wall	0.12 in	3.05 mm	All	Board to Cable/Wire		Friction Lock	2	Keying Slot	UL94 V-0	0.23 in	5.84 mm	Black
Amphenol ICC (FCI) 78207-124THLF	Through Hole Right Angle	Header	Square	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	Phosphor Bronze	0.303 in	7.7 mm	Male Pin	30 Áin	0.76 Ám	24	Shrouded - 2 Wall	0.12 in	3.05 mm	All	Board to Cable/Wire	Gold or Gold GXT™	Friction Lock	2	Keying Slot	UL94 V-0	0.23 in	5.84 mm	Black
Amphenol ICC (FCI) 78207-118THLF	Through Hole Right Angle	Header	Square	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	Phosphor Bronze	0.303 in	7.7 mm	Male Pin	30 Áin	0.76 Ám	18	Shrouded - 2 Wall	0.12 in	3.05 mm	All	Board to Cable/Wire	Gold or Gold GXT™	Friction Lock	2	Keying Slot	UL94 V-0	0.23 in	5.84 mm	Black
