SW Series
Manufacturer: NKK Switches
Beta
⌘K

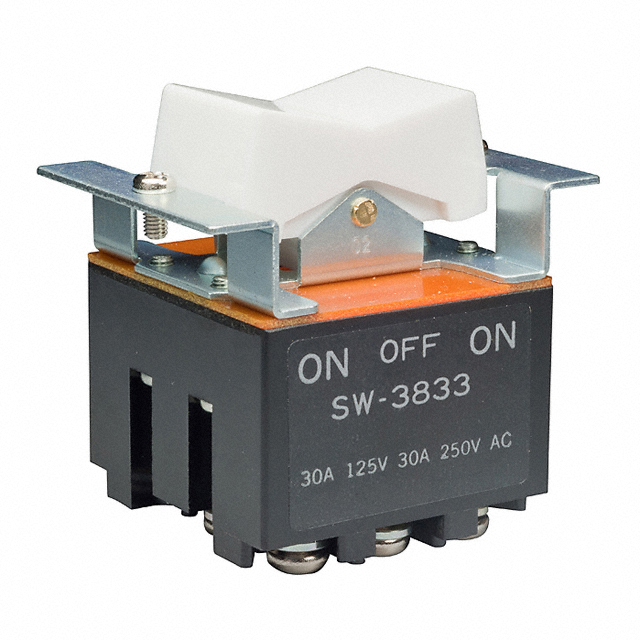

ROCKER SWITCHES 3PDT ON-OFF-ON SCREW TERMINALS 30A W/UL
| Part | Electrical Life | Mechanical Life | Actuator Marking | Mounting Type | Current Rating (Amps) | Actuator Type | Voltage Rating - AC | Voltage Rating - DC | Color - Actuator/Cap | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Circuit | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 50000 Cycles | No Marking | Flange Panel Mount | 30 A | Concave | 125 V | 30 V | White | On-Off-On | 70 °C | -10 °C | Screw Terminal | 3PDT | CSA UL |
 NKK Switches | No Marking | Flange Panel Mount | 30 A | Concave | 125 V | 30 V | White | On-Off | 70 °C | -10 °C | Screw Terminal | 3PST | CSA UL | ||
NKK Switches | No Marking | Flange Panel Mount | Concave | 30 V | White | On-On | 70 °C | -10 °C | Screw Terminal | 3PDT | CSA UL | ||||
NKK Switches | 25000 Steps | 50000 Cycles | No Marking | Flange Panel Mount | 30 A | Concave | 125 V | 30 V | White | On-On | 70 °C | -10 °C | Screw Terminal | DPDT | CSA UL |
