328516 Series

Catalog

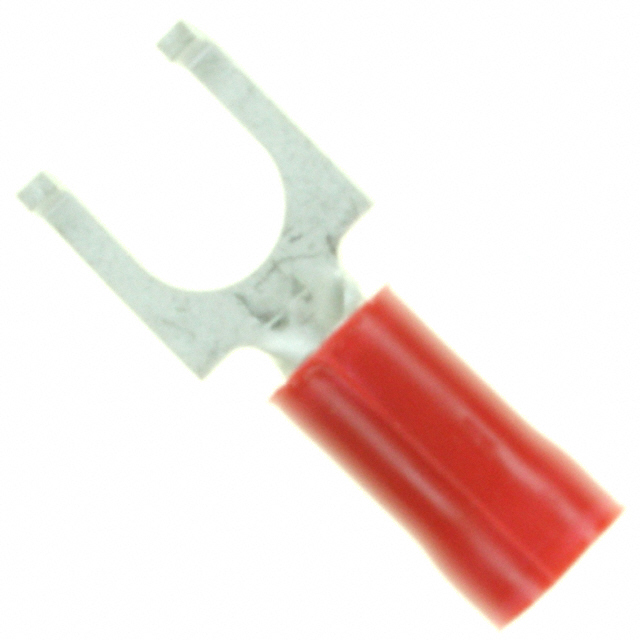

FORK / SPADE TONGUE TERMINAL, PLASTI-GRIP SERIES, 22 AWG, 16 AWG, 1.65 MM², M5, #10

Part	Insulation	Color	Width - Outer Edges [x]	Width - Outer Edges [x]	Features	Stud/Tab Size	Contact Material	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Contact Finish	Length - Overall [x]	Length - Overall [x]	Material - Insulation	Length - Termination	Length - Termination	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Termination	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Mounting Type
TE Connectivity Raychem Cable Protection 8-328516-1	Insulated	Red	0.296 in	7.52 mm	Serrated Termination	10 Stud	Copper	5 mm	0.197 in	Tin	0.749 in	19.02 mm	Poly-Vinyl Chloride (PVC)	10.57 mm	0.416 in	Flanged	22 AWG	16 AWG	0.203 in	5.16 mm	Crimp	0.14 in	0.105 in	3.56 mm	2.67 mm	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 2-328516-1	Insulated	Red	0.296 in	7.52 mm	Serrated Termination	10 Stud	Copper	5 mm	0.197 in	Tin	0.78 in	19.81 mm	Poly-Vinyl Chloride (PVC)	10.57 mm	0.416 in	Flanged	22 AWG	16 AWG	0.203 in	5.16 mm	Crimp	0.14 in	0.105 in	3.56 mm	2.67 mm	Free Hanging (In-Line)
