AX01R060 Series

Catalog

CONN RIGID SIDE STR 60 POS

Part	Pitch	Pitch	Contact Finish	Height Above Board	Height Above Board	Mated Stacking Heights	Number of Rows [custom]	Connector Type	Mounting Type	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights [Min]	Mated Stacking Heights [Max]
JAE Electronics AX01R060VADBR500	0.64 mm	0.025 in	Gold	0.339 in	8.6 mm	10 mm 16 mm 22 mm	2	Plug Outer Shroud Contacts	Surface Mount	Board Guide Solder Retention	0.1 Ám	4 Áin	60

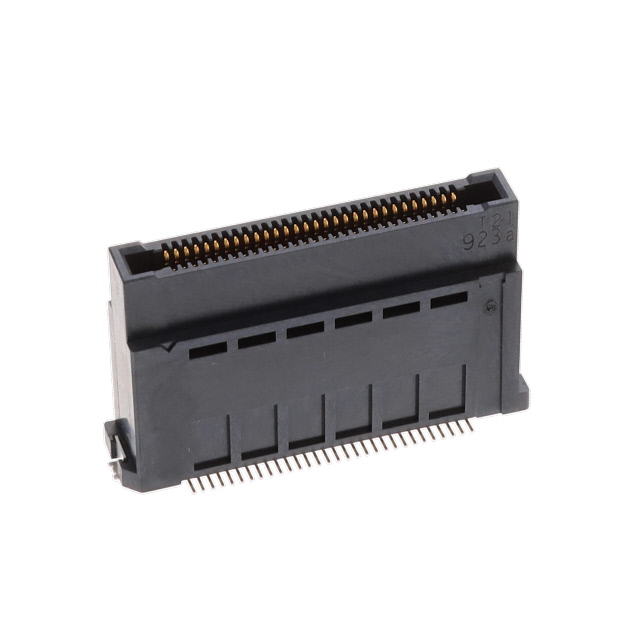

JAE Electronics AX01R060VANBR200	0.64 mm	0.025 in	Gold				2	Plug Outer Shroud Contacts	Surface Mount	Board Guide	0.1 Ám	4 Áin	60	16.6 mm	0.654 in	8 mm	30 mm
