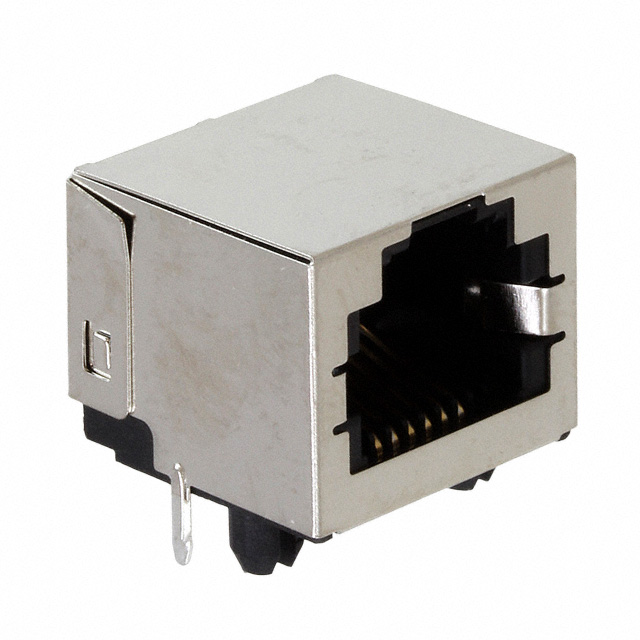

043860 Series
Manufacturer: Molex
Beta
⌘K

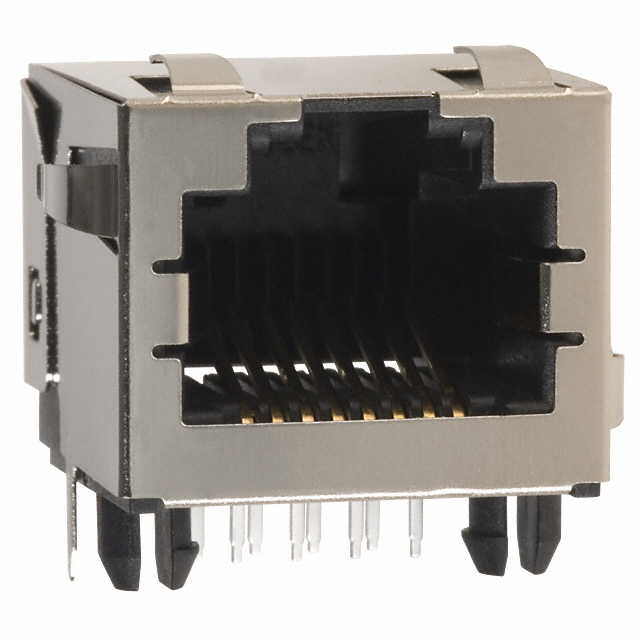

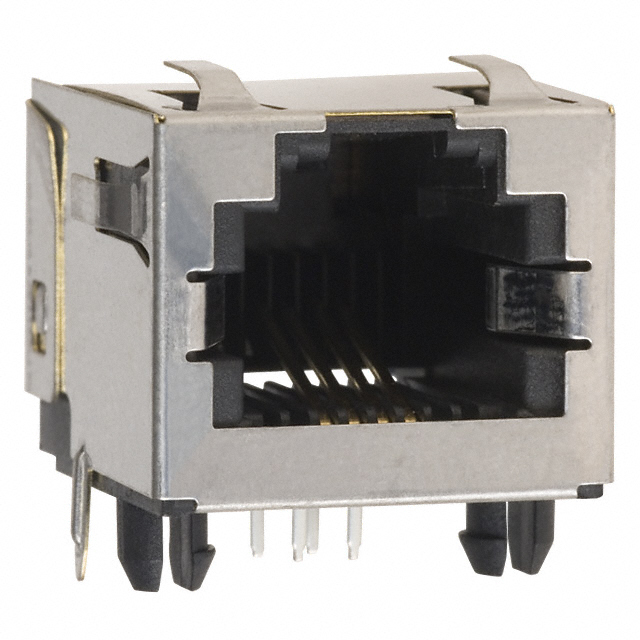

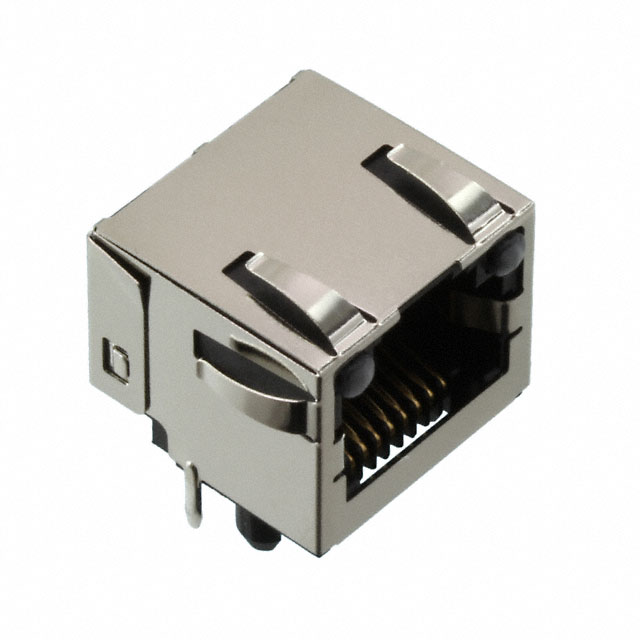

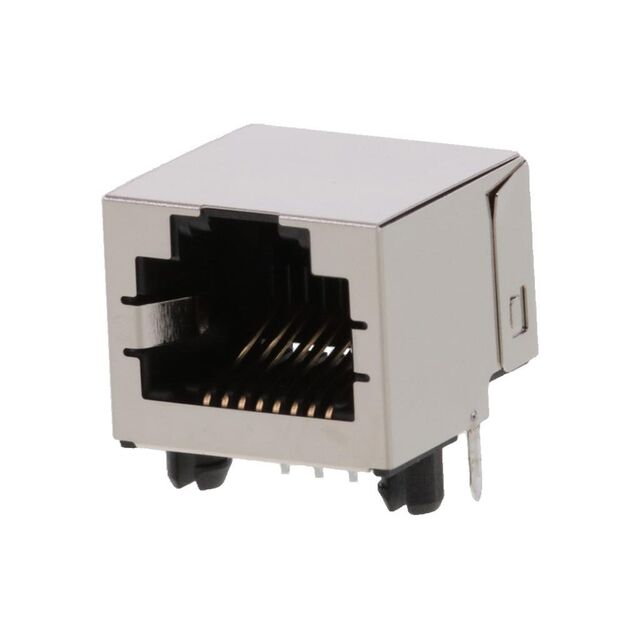

CONN RJ-45 F 8 POS 1.02MM SOLDER RA THRU-HOLE 8 TERMINAL 1 PORT MODULAR JACK 8/8, RJ45 CAT 3 TRAY
| Part | Contact Material | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Number of Rows | Termination | Features | Mounting Type | Orientation | Housing Material | Shielding | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Contacts | Connector Type | LED Color | Number of Ports | Tab Direction | Number of Positions/Contacts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Phosphor Bronze | Gold | 85 °C | -40 °C | Cat3 | 1 | Solder | Board Lock Light Pipe | Through Hole | 90 ° | Polyamide (PA) Nylon Glass Filled | Shielded EMI Finger | 50 µin | 1.27 µm | 8p8c (RJ45 Ethernet) | Jack | Does Not Contain LED | 1 | Up | |
 Molex | Phosphor Bronze | Gold | 85 °C | -40 °C | Cat3 | 1 | Solder | Through Hole | 90 ° | Polyamide (PA) Nylon Glass Filled | Shielded EMI Finger | 50 µin | 1.27 µm | 6p4c | Jack | Does Not Contain LED | 1 | Up | ||
 Molex | Phosphor Bronze | Gold | 85 °C | -40 °C | Cat3 | 1 | Solder | Through Hole | 90 ° | Polyamide (PA) Nylon Glass Filled | Shielded EMI Finger | 50 µin | 1.27 µm | 8p8c (RJ45 Ethernet) | Jack | Does Not Contain LED | 1 | Up | ||
 Molex | Phosphor Bronze | Gold | 85 °C | -40 °C | Cat3 | 1 | Solder | Board Lock Light Pipe | Through Hole | 90 ° | Polyamide (PA) Nylon Glass Filled | Shielded EMI Finger | 50 µin | 1.27 µm | 8p8c (RJ45 Ethernet) | Jack | Does Not Contain LED | 1 | Up | |
Molex | Gold | 1 | Solder | Through Hole | 90 ° | Shielded EMI Finger | 50 µin | 1.27 µm | 6p6c (RJ11 RJ12 RJ14 RJ25) | Jack | Does Not Contain LED | 1 | Up | |||||||
 Molex | Phosphor Bronze | Gold | 85 °C | -40 °C | Cat3 | 1 | Solder | Through Hole | 90 ° | Polyamide (PA) Nylon Glass Filled | Shielded EMI Finger | 50 µin | 1.27 µm | 6p6c (RJ11 RJ12 RJ14 RJ25) | Jack | Does Not Contain LED | 1 | Up | ||
 Molex | Phosphor Bronze | Gold | 85 °C | -40 °C | Cat3 | 1 | Solder | Through Hole | 90 ° | Polyamide (PA) Nylon Glass Filled | Shielded EMI Finger | 50 µin | 1.27 µm | 8p8c (RJ45 Ethernet) | Jack | Does Not Contain LED | 1 | Up | ||
Molex | Phosphor Bronze | Gold | 85 °C | -40 °C | Cat3 | 1 | Solder | Through Hole | 90 ° | Polyamide (PA) Nylon Glass Filled | Shielded EMI Finger | 50 µin | 1.27 µm | 6p4c | Jack | Does Not Contain LED | 1 | Up | ||
Molex | Phosphor Bronze | Gold | 85 °C | -40 °C | Cat3 | 1 | Solder | Board Lock Light Pipe | Through Hole | 90 ° | Polyamide (PA) Nylon Glass Filled | Shielded EMI Finger | 50 µin | 1.27 µm | 6p4c | Jack | Does Not Contain LED | 1 | Up | |
Molex | Phosphor Bronze | Gold | 85 °C | -40 °C | Cat3 | 1 | Solder | Through Hole | 90 ° | Polyamide (PA) Nylon Glass Filled | Shielded EMI Finger | 50 µin | 1.27 µm | Jack | Does Not Contain LED | 1 | Up | 2 6 |
