NPPC332 Series

Catalog

CONN HDR 66POS 0.1 GOLD PCB

Part	Contact Shape	Contact Material	Contact Finish Thickness - Post	Insulation Material	Number of Positions	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Connector Type	Number of Rows [custom]	Mounting Type	Insulation Color	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Voltage Rating	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Contact Finish Thickness - Mating	Contact Type	Current Rating (Amps)	Insulation Height [z]
Sullins Connector Solutions NPPC332LFBN-RC	Square	Phosphor Bronze	Flash	Nylon 6T Polyamide (PA6T)	66	0.1 "	2.54 mm	All	Gold	-40 C	105 ░C	0.335 "	8.51 mm	Header	2	Through Hole	Black	Gold	0.126 "	3.2 mm	UL94 V-0	250 V	Push-Pull	0.1 in	2.54 mm	Solder	Flash	Female Socket	3 A

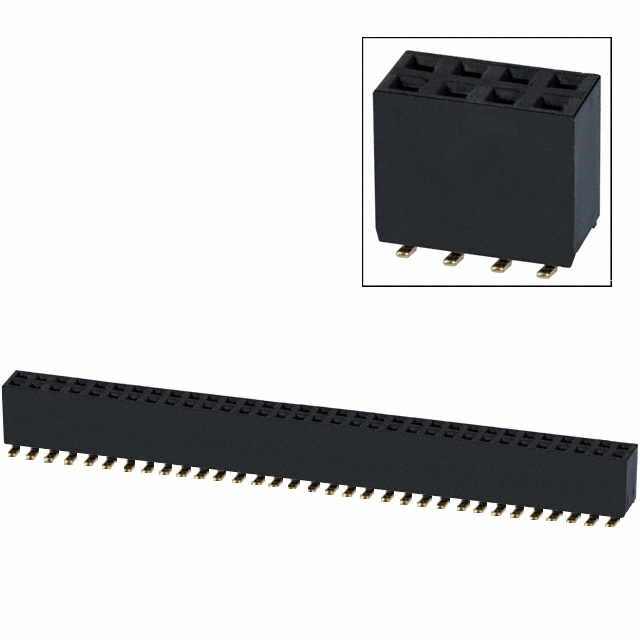

Sullins Connector Solutions NPPC332KFMS-RC	Square	Phosphor Bronze	Flash	Nylon 6T Polyamide (PA6T)	66	0.1 "	2.54 mm	All	Gold	-40 C	125 °C		7.6 mm	Header	2	Surface Mount	Black	Gold			UL94 V-0	250 V	Push-Pull	0.1 in	2.54 mm	Solder	Flash	Female Socket	3 A	0.299 "
