746-039 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 39POS 0.125

Part	Termination Rows	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Read Out	Contact Finish	Number of Positions	Card Type	Pitch	Pitch	Contact Material	Number of Positions/Bay/Row	Termination	Color	Mounting Type	Number of Rows	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 746-039-520-106	1	Polyester Thermoplastic	-40 C	105 ░C	Female	Single	Gold	39	Non Specified - Single Edge	3.18 mm	0.125 in	Copper Alloy	39	Press-Fit	Black	Through Hole	1	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám
EDAC Inc. 746-039-553-101	1	Polyester Thermoplastic	-40 C	105 ░C	Female	Single	Gold	39	Non Specified - Single Edge	3.18 mm	0.125 in	Copper Alloy	39	Press-Fit Wire Wrap	Black	Through Hole	1	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám

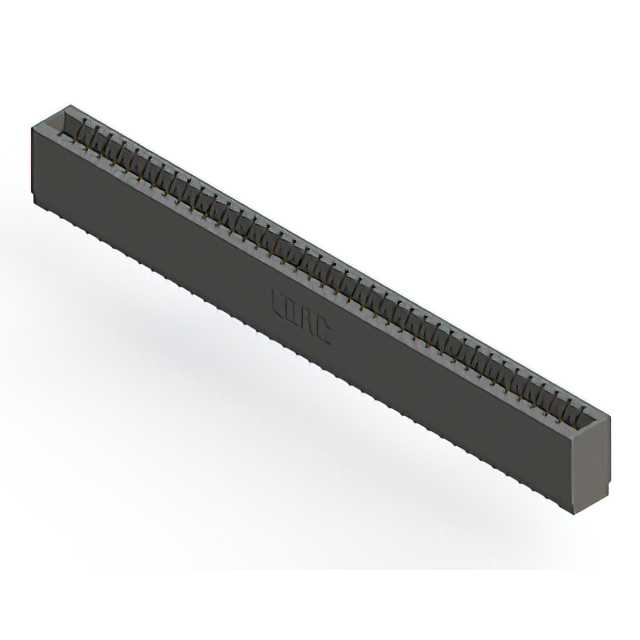

EDAC Inc. 746-039-525-101	1	Polyester Thermoplastic	-40 C	105 ░C	Female	Single	Gold	39	Non Specified - Single Edge	3.18 mm	0.125 in	Copper Alloy	39	Press-Fit	Black	Through Hole	1	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám
EDAC Inc. 746-039-525-106	1	Polyester Thermoplastic	-40 C	105 ░C	Female	Single	Gold	39	Non Specified - Single Edge	3.18 mm	0.125 in	Copper Alloy	39	Press-Fit	Black	Through Hole	1	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám
EDAC Inc. 746-039-541-101	1	Polyester Thermoplastic	-40 C	105 ░C	Female	Single	Gold	39	Non Specified - Single Edge	3.18 mm	0.125 in	Copper Alloy	39	Press-Fit Wire Wrap	Black	Through Hole	1	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám
EDAC Inc. 746-039-527-501	1	Polyester Thermoplastic	-40 C	105 ░C	Female	Single	Gold	39	Non Specified - Single Edge	3.18 mm	0.125 in	Copper Alloy	39	Press-Fit	Black	Through Hole	1	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám
EDAC Inc. 746-039-541-501	1	Polyester Thermoplastic	-40 C	105 ░C	Female	Single	Gold	39	Non Specified - Single Edge	3.18 mm	0.125 in	Copper Alloy	39	Press-Fit Wire Wrap	Black	Through Hole	1	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám
EDAC Inc. 746-039-540-101	1	Polyester Thermoplastic	-40 C	105 ░C	Female	Single	Gold	39	Non Specified - Single Edge	3.18 mm	0.125 in	Copper Alloy	39	Press-Fit Wire Wrap	Black	Through Hole	1	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám
EDAC Inc. 746-039-553-506	1	Polyester Thermoplastic	-40 C	105 ░C	Female	Single	Gold	39	Non Specified - Single Edge	3.18 mm	0.125 in	Copper Alloy	39	Press-Fit Wire Wrap	Black	Through Hole	1	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám
EDAC Inc. 746-039-541-506	1	Polyester Thermoplastic	-40 C	105 ░C	Female	Single	Gold	39	Non Specified - Single Edge	3.18 mm	0.125 in	Copper Alloy	39	Press-Fit Wire Wrap	Black	Through Hole	1	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám
