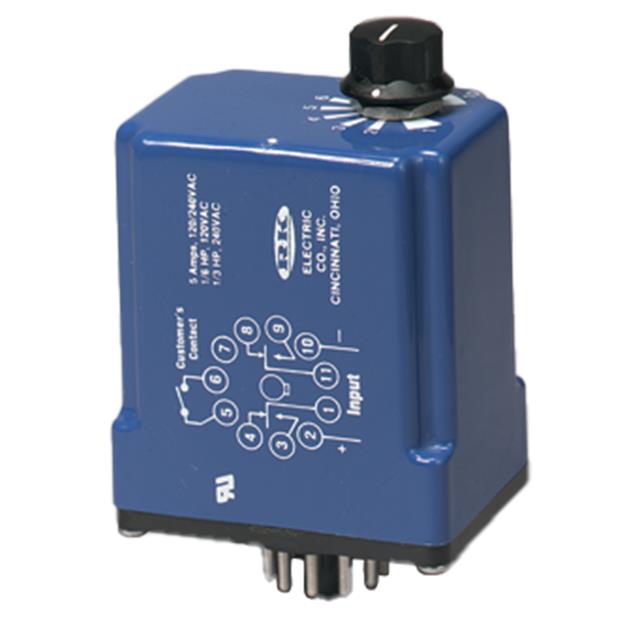

CSB-24D Series

Catalog

RELAY TIME DELAY 10SEC 10A 120V

Part	Function	Relay Type	Timing Initiate Method	Delay Time [Max]	Delay Time [Min]	Contact Rating @ Voltage [Min]	Contact Rating @ Voltage [Max]	Contact Rating @ Voltage	Circuit	Timing Adjustment Method	Voltage - Supply	Mounting Type	Termination Style	Termination Style
R-K Electronics, Inc. CSB-24D-5-10S	One Shot	Mechanical Relay	Input Voltage	10 s	0.1 Sec	120 VAC	240 VAC	10 A	SPDT (1 Form C)	Hand Dial	24 V	Socketable	Plug In
R-K Electronics, Inc. CSB-24D-1-3S	One Shot	Mechanical Relay	Input Voltage			120 VAC	240 VAC	10 A	DPDT (2 Form C)	Fixed	24 V	Socketable	Plug In	11 Pin
R-K Electronics, Inc. CSB-24D-5-10M	One Shot	Mechanical Relay	Input Voltage	10 Min	6 Sec	120 VAC	240 VAC	10 A	SPDT (1 Form C)	Hand Dial	24 V	Socketable	Plug In
R-K Electronics, Inc. CSB-24D-5-1M	One Shot	Mechanical Relay	Input Voltage	1 Year	0.6 Sec	120 VAC	240 VAC	10 A	SPDT (1 Form C)	Hand Dial	24 V	Socketable	Plug In
R-K Electronics, Inc. CSB-24D-2-10S	One Shot	Mechanical Relay	Input Voltage	10 s	0.1 Sec	120 VAC	240 VAC	10 A	DPDT (2 Form C)	Hand Dial	24 V	Socketable	Plug In	11 Pin
R-K Electronics, Inc. CSB-24D-5-1H	One Shot	Mechanical Relay	Input Voltage	1 Year	36 Sec	120 VAC	240 VAC	10 A	SPDT (1 Form C)	Hand Dial	24 V	Socketable	Plug In
R-K Electronics, Inc. CSB-24D-2-5H	One Shot	Mechanical Relay	Input Voltage	5 Hrs	3 Cyc	120 VAC	240 VAC	10 A	DPDT (2 Form C)	Hand Dial	24 V	Socketable	Plug In	11 Pin
R-K Electronics, Inc. CSB-24D-2-5S	One Shot	Mechanical Relay	Input Voltage	5 Sec	0.05 Sec	120 VAC	240 VAC	10 A	DPDT (2 Form C)	Hand Dial	24 V	Socketable	Plug In	11 Pin
R-K Electronics, Inc. CSB-24D-2-1S	One Shot	Mechanical Relay	Input Voltage	1 Sec	0.05 Sec	120 VAC	240 VAC	10 A	DPDT (2 Form C)	Hand Dial	24 V	Socketable	Plug In	11 Pin
R-K Electronics, Inc. CSB-24D-2-30S	One Shot	Mechanical Relay	Input Voltage	30 Sec	0.3 Sec	120 VAC	240 VAC	10 A	DPDT (2 Form C)	Hand Dial	24 V	Socketable	Plug In	11 Pin
