302-S60 Series

Catalog

CONN HEADER VERT 60POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Material Flammability Rating	Fastening Type	Insulation Material	Contact Material	Pitch - Mating	Pitch - Mating	Contact Shape	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Connector Type	Insulation Height	Insulation Height	Number of Rows [custom]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Type	Insulation Color	Number of Positions	Voltage Rating	Style	Contact Finish - Post	Shrouding

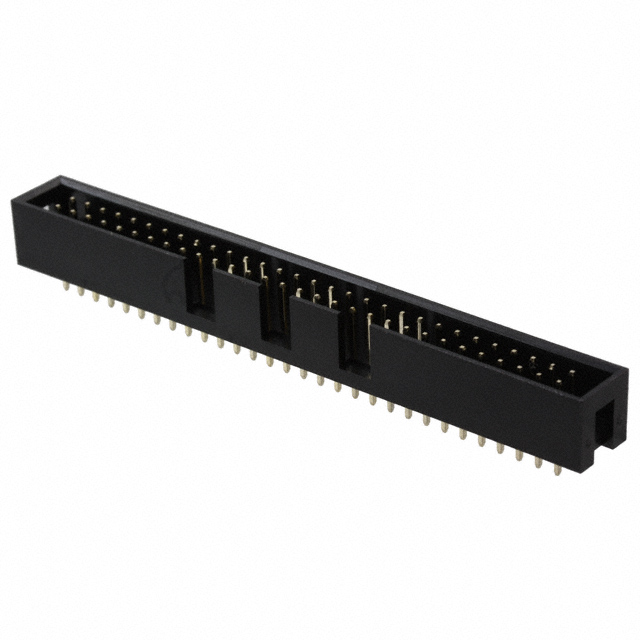

On Shore Technology Inc. 302-S601	1.25 µin	0.032 µm	Through Hole	Keying Slot	-40 C	105 ░C	0.1 in	2.54 mm	All	UL94 V-0	Push-Pull	Polyester Glass Filled	Brass	0.1 "	2.54 mm	Square	Solder	0.122 in	3.1 mm	3 A	Header	0.358 "	9.1 mm	2	Gold	Flash	Male Pin	Black	60	250 V	Board to Cable/Wire	Gold	Shrouded - 4 Wall
