MMI-M1PG Series

Manufacturer: Adam Tech

Catalog

CONN PLUG MALE 4P GOLD SLDR CUP

Part	Contact Material	Insert Material	Mounting Type	Shielding	Voltage Rating	Color	Shell Material	Number of Positions	Features	Primary Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Shell Finish	Contact Finish - Mating	Connector Type	Ingress Protection	Orientation [custom]

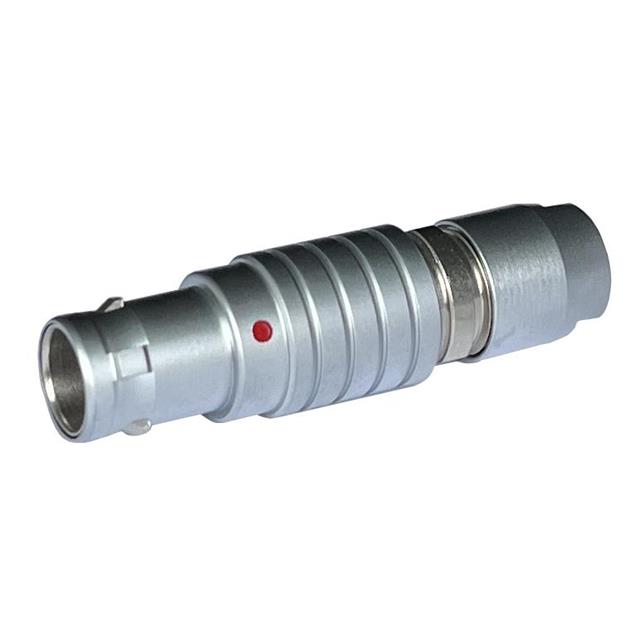

Adam Tech MMI-M1PG04S52	Brass	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)	Unshielded	250 V	Silver	Brass	4	Backshell	Metal	8 A	-55 C	150 °C	Push-Pull	Chrome	Gold	Plug Male Pins	IP50 - Dust Protected	G
Adam Tech MMI-M1PG04S52B	Brass	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)	Unshielded	250 V	Silver	Brass	4	Backshell Strain Relief	Metal	8 A	-55 C	150 °C	Push-Pull	Chrome	Gold	Plug Male Pins	IP50 - Dust Protected	G
Adam Tech MMI-M1PG08S52B	Brass	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)	Unshielded	200 V	Silver	Brass	8	Backshell Strain Relief	Metal	5 A	-55 C	150 °C	Push-Pull	Chrome	Gold	Plug Male Pins	IP50 - Dust Protected	G
Adam Tech MMI-M1PG08S62	Brass	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)	Unshielded	200 V	Silver	Brass	8	Backshell	Metal	5 A	-55 C	150 °C	Push-Pull	Chrome	Gold	Plug Male Pins	IP50 - Dust Protected	G
Adam Tech MMI-M1PG02S52B	Brass	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)	Unshielded	300 VDC	Silver	Brass	2	Backshell Strain Relief	Metal	9 A	-55 C	150 °C	Push-Pull	Chrome	Gold	Plug Male Pins	IP50 - Dust Protected	G

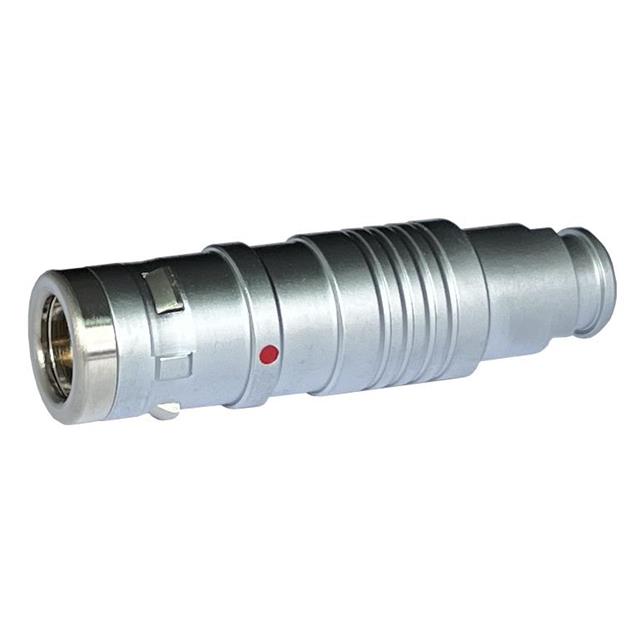

Adam Tech MMI-M1PG10S52B-IP67	Brass	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)	Unshielded	200 V	Silver	Brass	10	Backshell Strain Relief	Metal	2 A	-55 C	150 °C	Push-Pull	Chrome	Gold	Plug Male Pins	IP67 - Dust Tight Waterproof	G
Adam Tech MMI-M1PG10S52B	Brass	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)	Unshielded	200 V	Silver	Brass	10	Backshell Strain Relief	Metal	2 A	-55 C	150 °C	Push-Pull	Chrome	Gold	Plug Male Pins	IP50 - Dust Protected	G
Adam Tech MMI-M1PG08S52	Brass	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)	Unshielded	200 V	Silver	Brass	8	Backshell	Metal	5 A	-55 C	150 °C	Push-Pull	Chrome	Gold	Plug Male Pins	IP50 - Dust Protected	G
Adam Tech MMI-M1PG10S62	Brass	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)	Unshielded	200 V	Silver	Brass	10	Backshell	Metal	2 A	-55 C	150 °C	Push-Pull	Chrome	Gold	Plug Male Pins	IP50 - Dust Protected	G
Adam Tech MMI-M1PG02S52	Brass	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)	Unshielded	300 VDC	Silver	Brass	2	Backshell	Metal	9 A	-55 C	150 °C	Push-Pull	Chrome	Gold	Plug Male Pins	IP50 - Dust Protected	G
