450-10 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN HEADER VERT 20POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Fastening Type	Shrouding	Number of Rows [custom]	Mounting Type	Contact Length - Post	Contact Length - Post	Termination	Contact Type	Number of Positions Loaded	Contact Finish - Post	Contact Shape	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post [custom]	Overall Contact Length	Overall Contact Length	Number of Positions [custom]

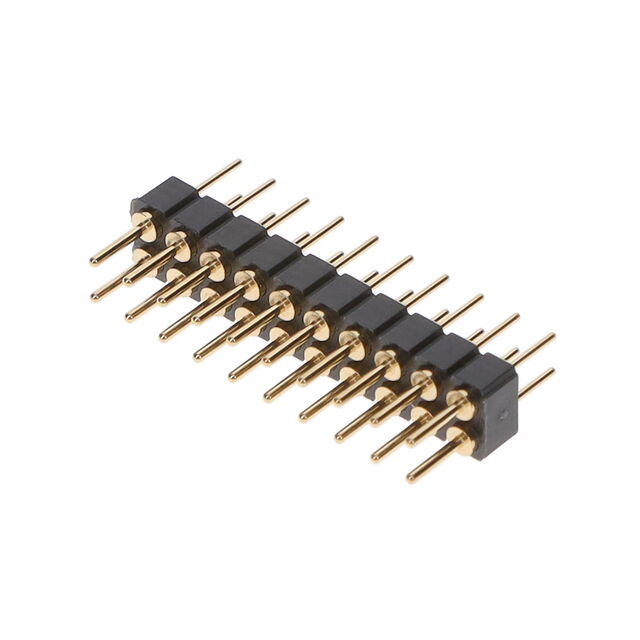

Mill-Max Manufacturing Corp. 450-10-220-00-001000	10 Áin	0.25 çm	Black	Push-Pull	Unshrouded	2	Through Hole	3.96 mm	0.156 "	Solder	Male Pin	All	Gold	Circular	0.1 "	2.54 mm	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	0.1 in	2.54 mm	Brass Alloy	0.25 µm	10 µin	20	4.22 mm	0.166 in	Gold	0.477 in	12.12 mm
Mill-Max Manufacturing Corp. 450-10-234-00-006000	10 Áin	0.25 çm	Black	Push-Pull	Unshrouded	2	Through Hole	2.79 mm		Solder	Male Pin	All	Gold	Circular	0.1 "	2.54 mm	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	0.1 in	2.54 mm	Brass Alloy	0.25 µm	10 µin		3.61 mm	0.142 in	Gold			0.11 in	10 mm	0.394 in	34
Mill-Max Manufacturing Corp. 450-10-214-00-001000	10 Áin	0.25 çm	Black	Push-Pull	Unshrouded	2	Through Hole	3.96 mm	0.156 "	Solder	Male Pin	All	Gold	Circular	0.1 "	2.54 mm	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	0.1 in	2.54 mm	Brass Alloy	0.25 µm	10 µin	14	4.22 mm	0.166 in	Gold	0.477 in	12.12 mm
Mill-Max Manufacturing Corp. 450-10-204-00-006000	10 Áin	0.25 çm	Black	Push-Pull	Unshrouded	2	Through Hole	2.79 mm		Solder	Male Pin	All	Gold	Circular	0.1 "	2.54 mm	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	0.1 in	2.54 mm	Brass Alloy	0.25 µm	10 µin	4	3.61 mm	0.142 in	Gold			0.11 in	10 mm	0.394 in
Mill-Max Manufacturing Corp. 450-10-242-00-106000	10 Áin	0.25 çm	Black	Push-Pull	Unshrouded	2	Surface Mount			Solder	Male Pin	All	Gold	Circular	0.1 "	2.54 mm	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	0.1 in	2.54 mm	Brass Alloy	0.25 µm	10 µin	42	3.61 mm	0.142 in	Gold
Mill-Max Manufacturing Corp. 450-10-238-00-001000	10 Áin	0.25 çm	Black	Push-Pull	Unshrouded	2	Through Hole	3.96 mm	0.156 "	Solder	Male Pin	All	Gold	Circular	0.1 "	2.54 mm	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	0.1 in	2.54 mm	Brass Alloy	0.25 µm	10 µin	38	4.22 mm	0.166 in	Gold	0.477 in	12.12 mm
Mill-Max Manufacturing Corp. 450-10-256-00-106000	10 Áin	0.25 çm	Black	Push-Pull	Unshrouded	2	Surface Mount			Solder	Male Pin	All	Gold	Circular	0.1 "	2.54 mm	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	0.1 in	2.54 mm	Brass Alloy	0.25 µm	10 µin	56	3.61 mm	0.142 in	Gold
Mill-Max Manufacturing Corp. 450-10-222-00-001000	10 Áin	0.25 çm	Black	Push-Pull	Unshrouded	2	Through Hole	3.96 mm	0.156 "	Solder	Male Pin	All	Gold	Circular	0.1 "	2.54 mm	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	0.1 in	2.54 mm	Brass Alloy	0.25 µm	10 µin	22	4.22 mm	0.166 in	Gold	0.477 in	12.12 mm

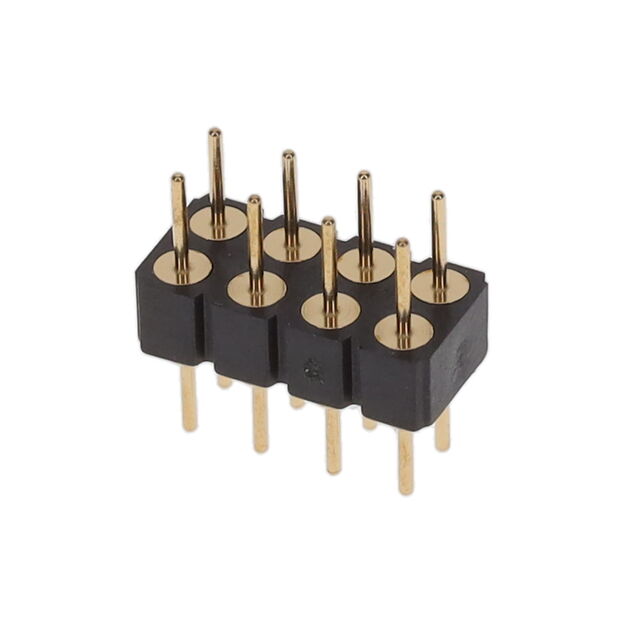

Mill-Max Manufacturing Corp. 450-10-208-00-006000	10 Áin	0.25 çm	Black	Push-Pull	Unshrouded	2	Through Hole	2.79 mm		Solder	Male Pin	All	Gold	Circular	0.1 "	2.54 mm	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	0.1 in	2.54 mm	Brass Alloy	0.25 µm	10 µin	8	3.61 mm	0.142 in	Gold			0.11 in	10 mm	0.394 in
Mill-Max Manufacturing Corp. 450-10-206-00-106000	10 Áin	0.25 çm	Black	Push-Pull	Unshrouded	2	Surface Mount			Solder	Male Pin	All	Gold	Circular	0.1 "	2.54 mm	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	0.1 in	2.54 mm	Brass Alloy	0.25 µm	10 µin	6	3.61 mm	0.142 in	Gold
