GRPB122 Series

Catalog

CONN HEADER R/A 24POS 1.27MM

Part	Contact Finish Thickness - Post	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish - Mating	Termination	Number of Positions	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Type	Shrouding	Insulation Material	Connector Type	Number of Rows [custom]	Contact Finish - Post	Contact Material	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Style	Fastening Type	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]

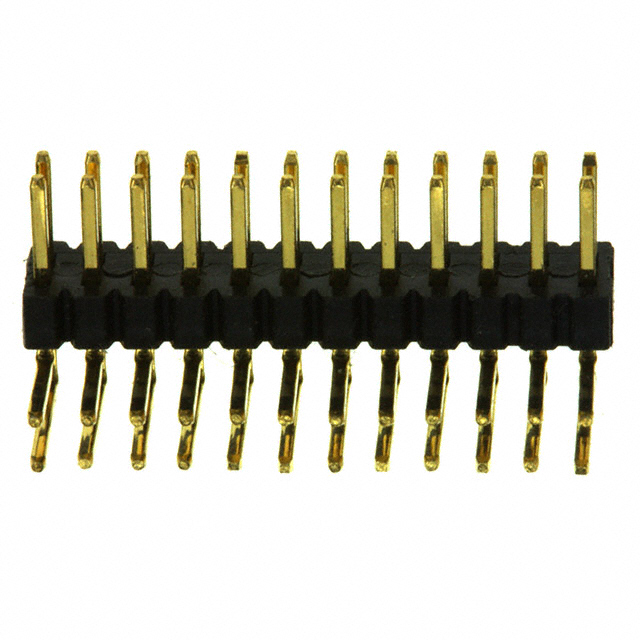

Sullins Connector Solutions GRPB122MWCN-RC	Flash	UL94 V-0	-40 C	105 ░C	1.27 mm	0.05 in	Square	Gold	Solder	24	All	2.5 mm	0.098 in	Flash	Male Pin	Unshrouded	Nylon 9T Polyamide (PA9T)	Header	2	Gold	Brass	Right Angle Through Hole	0.05 in	1.27 mm	Board to Board Cable	Push-Pull	3 mm	0.118 in	0.134 in	3.4 mm

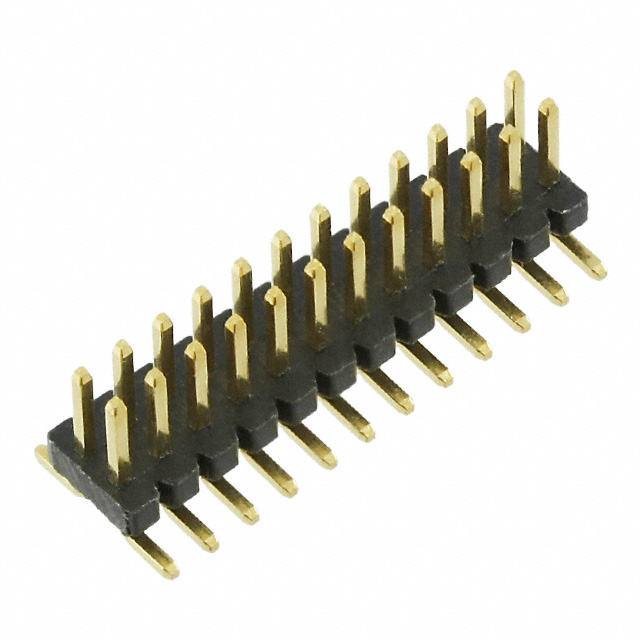

Sullins Connector Solutions GRPB122VWQS-RC	Flash	UL94 V-0	-40 C	105 ░C	1.27 mm	0.05 in	Square	Gold	Solder	24	All			Flash	Male Pin	Unshrouded	Nylon 9T Polyamide (PA9T)	Header	2	Gold	Brass	Surface Mount	0.05 in	1.27 mm	Board to Board Cable	Push-Pull	3 mm	0.118 in			1 mm	0.039 in
Sullins Connector Solutions GRPB122VWVN-RC	Flash	UL94 V-0	-40 C	105 ░C	1.27 mm	0.05 in	Square	Gold	Solder	24	All	2.3 mm		Flash	Male Pin	Unshrouded	Nylon 9T Polyamide (PA9T)	Header	2	Gold	Brass	Through Hole	0.05 in	1.27 mm	Board to Board Cable	Push-Pull	3 mm	0.118 in			1 mm	0.039 in	0.248 in	6.3 mm	0.091 "
