627-2W2 Series
Manufacturer: EDAC Inc.
Beta
⌘K

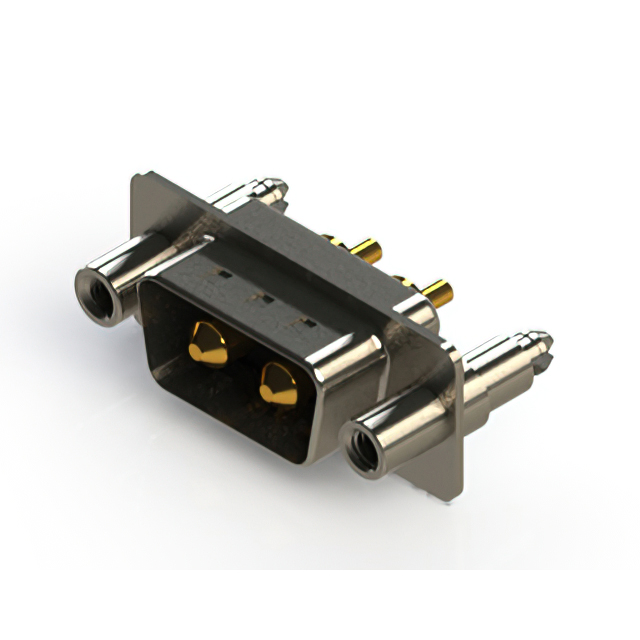

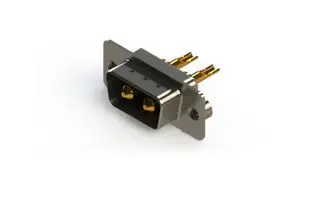

CONN D-SUB PLUG 2P PNL MNT SLDR
| Part | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage Rating | Shell Material, Finish | Features | Shell Size, Connector Layout | Number of Positions | Connector Style | Current Rating (Amps) | Contact Finish Thickness | Connector Type | Material Flammability Rating | Mounting Type | Contact Finish | Flange Feature | Termination | Number of Rows | Contact Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | Nickel Plated Steel | Board Lock Grounding Indents Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Combo D-Sub | 40 A | Flash | Plug Male Pins | UL94 V-0 | Panel Mount Through Hole | Gold | 4-40 | Solder | 1 | Power | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | Grounding Indents Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Combo D-Sub | 30 A | Flash | Plug Male Pins | UL94 V-0 | Panel Mount | Gold | M3 | Solder | 1 | Power | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | Grounding Indents Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Combo D-Sub | 10 A | Plug Male Pins | UL94 V-0 | Free Hanging (In-Line) | Gold | Board Side (4-40) | 1 | Power | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | Nickel Plated Steel | Grounding Indents Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Combo D-Sub | 20 A | Plug Male Pins | UL94 V-0 | Free Hanging (In-Line) | Gold | Board Side (4-40) | 1 | Power | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | Grounding Indents Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Combo D-Sub | 10 A | Flash | Plug Male Pins | UL94 V-0 | Free Hanging (In-Line) | Gold | Housing/Shell (Unthreaded) | 1 | Power | ||||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | Grounding Indents Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Combo D-Sub | 40 A | Plug Male Pins | UL94 V-0 | Free Hanging (In-Line) | Gold | Housing/Shell (Unthreaded) | 1 | Power | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | Nickel Plated Steel | Grounding Indents Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Combo D-Sub | 40 A | Plug Male Pins | UL94 V-0 | Free Hanging (In-Line) | Gold | Board Side (M3) | 1 | Power | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | Nickel Plated Steel | Grounding Indents Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Combo D-Sub | 40 A | Flash | Plug Male Pins | UL94 V-0 | Panel Mount | Gold | Board Side (M3) | Solder | 1 | Power | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | Nickel Plated Steel | Grounding Indents Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Combo D-Sub | 10 A | Plug Male Pins | UL94 V-0 | Panel Mount | Gold | Board Side (M3) | Solder | 1 | Power | 30 Áin | 0.76 Ám | |
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | Nickel Plated Steel | Board Lock Grounding Indents Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Combo D-Sub | 10 A | Plug Male Pins | UL94 V-0 | Panel Mount Through Hole | Gold | M3 | Solder | 1 | Power | 30 Áin | 0.76 Ám |
