Pushbutton Switches PB SQUARE YELLOW SPDT ALT
Pushbutton Switches PB SQUARE YELLOW SPDT ALT
| Part | Mechanical Life | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Illumination Voltage (Nominal) | Mounting Type | Illumination Type, Color | Circuit | Actuator Marking | Current Rating (Amps) | Voltage Rating - AC | Ingress Protection | Termination Style | Actuator Type | Color - Actuator/Cap | Switch Function | Type | Accessory Type | For Use With/Related Products | Contact Rating @ Voltage | Requires | Illumination | Color | Size [x] | Size [y] | Size [z] | Switch Type | Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

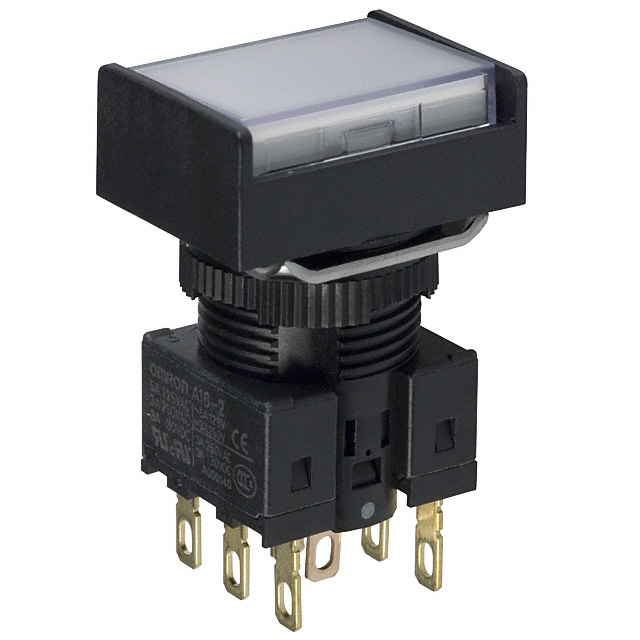

 Omron Automation and Safety | 2000000 Cycles | 100000 Cycles | 55 °C | -10 °C | 16 mm | 24 V | Panel Mount Front | LED White | SPDT | No Marking | 5 A | 125 V | IP40 | Solder Quick Connect - 0.110" (2.8mm) | Button Rectangular | White | On-Mom | Illuminated Standard | |||||||||||

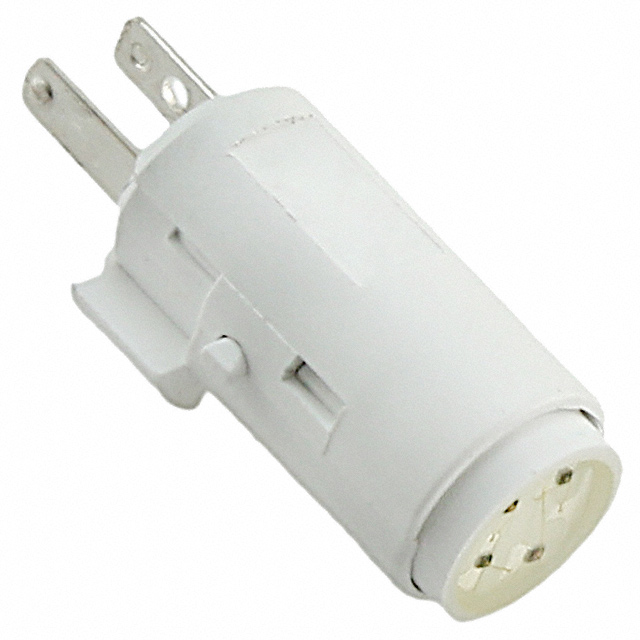

 Omron Automation and Safety | LED | A16 Series | |||||||||||||||||||||||||||
 Omron Automation and Safety | DPDT | Solder Quick Connect - 0.110" (2.8mm) | 5 A 125 VAC | Switch Body | |||||||||||||||||||||||||
Omron Automation and Safety | 16 mm | Pushbutton Round | Momentary | Contact Block(s) | Non-Illuminated | ||||||||||||||||||||||||

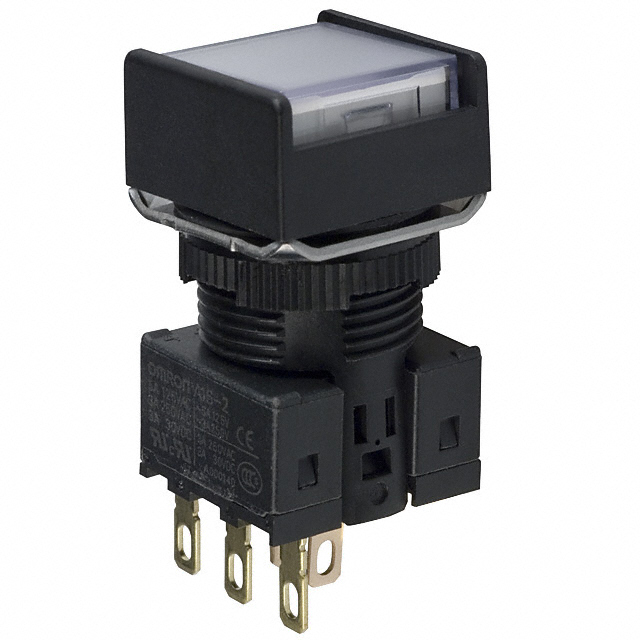

 Omron Automation and Safety | 2000000 Cycles | 100000 Cycles | 55 °C | -10 °C | 16 mm | 24 V | Panel Mount Front | LED White | SPDT | No Marking | 5 A | 125 V | IP40 | Solder Quick Connect - 0.110" (2.8mm) | Button Square | White | On-Mom | Illuminated Standard | |||||||||||
Omron Automation and Safety | 2000000 Cycles | 100000 Cycles | 55 °C | -10 °C | 16 mm | 24 V | Panel Mount Front | LED Yellow | SPDT | No Marking | 5 A | 125 V | IP40 | Solder Quick Connect - 0.110" (2.8mm) | Button Rectangular | Yellow | On-Mom | Illuminated Standard | |||||||||||
Omron Automation and Safety | DPDT | Solder Quick Connect - 0.110" (2.8mm) | 5 A 125 VAC | Switch Body | |||||||||||||||||||||||||

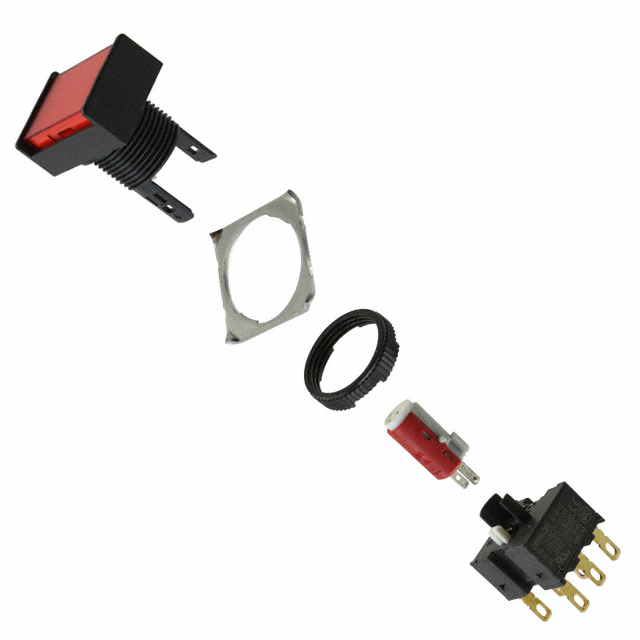

 Omron Automation and Safety | 200000 Cycles | 100000 Cycles | 55 °C | -10 °C | 16 mm | 12 VDC | Panel Mount Front | LED Red | SPDT | No Marking | 5 A | 125 V | IP40 | Solder Quick Connect - 0.110" (2.8mm) | Button Rectangular | Red | On-On | Illuminated Standard | |||||||||||

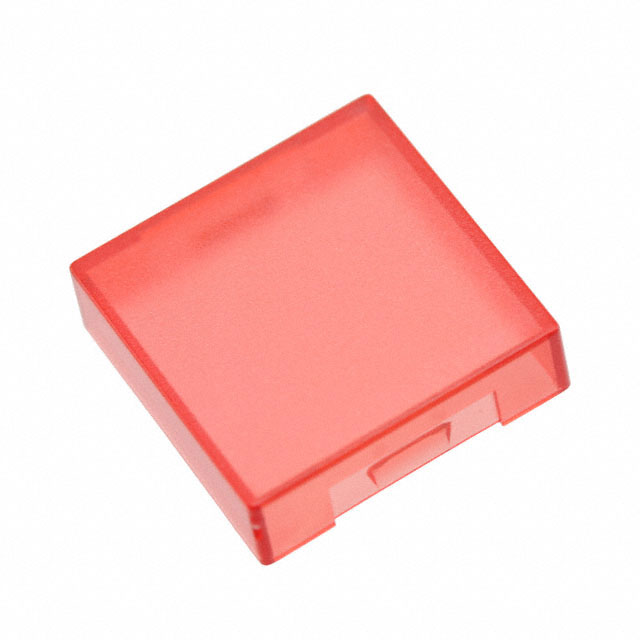

 Omron Automation and Safety | Snap Fit | A16 Series | Illumination Optional | Red | 15.1 mm | 15.1 mm | 3.5 mm | Pushbutton | Square | ||||||||||||||||||||

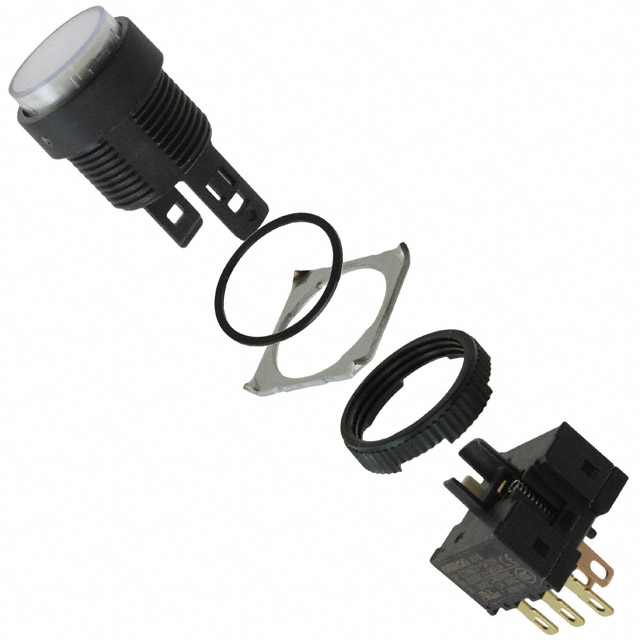

 Omron Automation and Safety | 2000000 Cycles | 100000 Cycles | 55 °C | -10 °C | 16 mm | 12 VDC | Panel Mount Front | LED White | SPDT | No Marking | 5 A | 125 V | IP40 | Solder Quick Connect - 0.110" (2.8mm) | Button Round | White | On-Mom | Illuminated Standard |
