NZ Series
Manufacturer: Amphenol Anytek
Beta
⌘K
WIRE-TO-BOARD TERMINAL BLOCK, 10 MM, 3 POSITIONS, 16 AWG, 6 AWG, PUSH IN LOCK
| Part | Color | Current | Mating Orientation | Clamp Material - Plating | Mounting Type | Voltage | Features | Wire Termination | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Levels | Wire Gauge [Max] | Wire Gauge [Min] | Pitch [x] | Pitch [x] | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

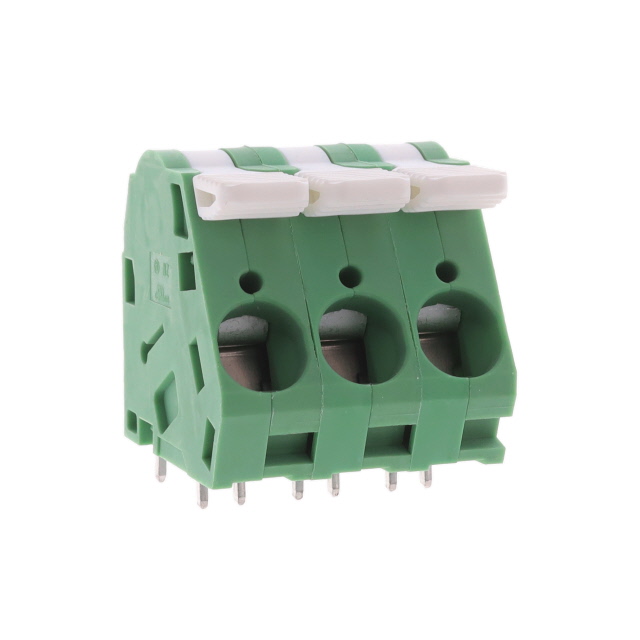

 Amphenol Anytek | Green | 55 A | Horizontal with Board | Stainless Steel | Through Hole | 300 V | Lever Actuated | Push-In Spring Screwless - Leg Spring | Thermoplastic | -40 °C | 115 °C | 1 | 16 AWG | 6 AWG | 0.394 in | 10 mm | 3 |

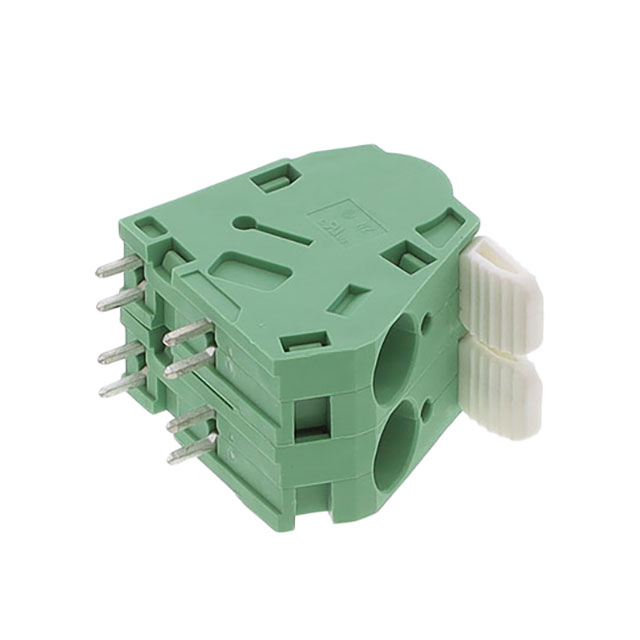

 Amphenol Anytek | Green | 55 A | Horizontal with Board | Stainless Steel | Through Hole | 300 V | Lever Actuated | Push-In Spring Screwless - Leg Spring | Thermoplastic | -40 °C | 115 °C | 1 | 16 AWG | 6 AWG | 0.394 in | 10 mm | 2 |

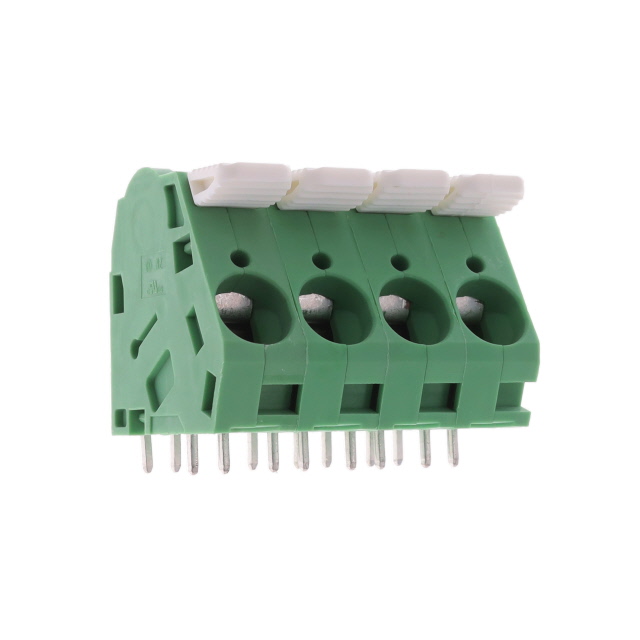

 Amphenol Anytek | Green | 55 A | Horizontal with Board | Stainless Steel | Through Hole | 300 V | Lever Actuated | Push-In Spring Screwless - Leg Spring | Thermoplastic | -40 °C | 115 °C | 1 | 16 AWG | 6 AWG | 0.394 in | 10 mm | 4 |
