W-03 Series

Catalog

BUZZER 2.83V 70MM TH

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Mode	Voltage - Rated	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Sound Pressure Level (SPL)	Voltage Range [Max]	Voltage Range [Min]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Frequency

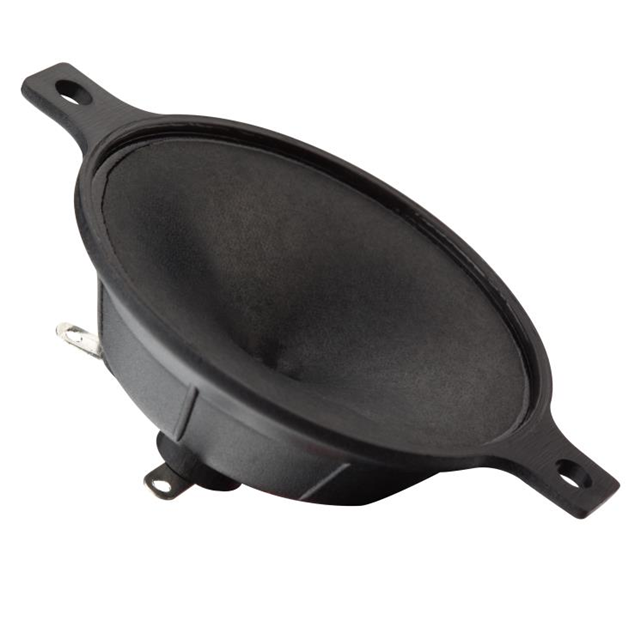

East Electronics W-03A	2.756 in	70 mm	Continuous	2.83 V	PC Pins	18.5 mm	0.728 in	95 dB	8 V	1 V	Through Hole	-20 ░C	70 °C	20 kHz 40 kHz

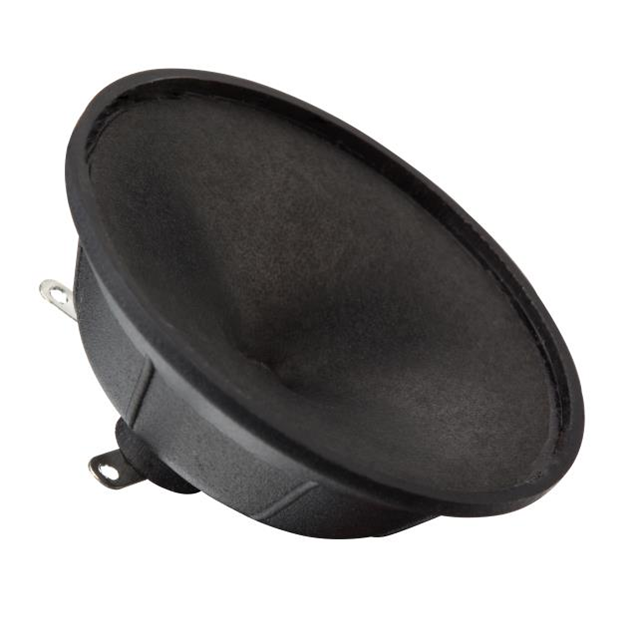

East Electronics W-03B	2.008 in	51 mm	Continuous	2.83 V	PC Pins	18.5 mm	0.728 in	95 dB	8 V	1 V	Through Hole	-20 ░C	70 °C	20 kHz 40 kHz
