1053 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

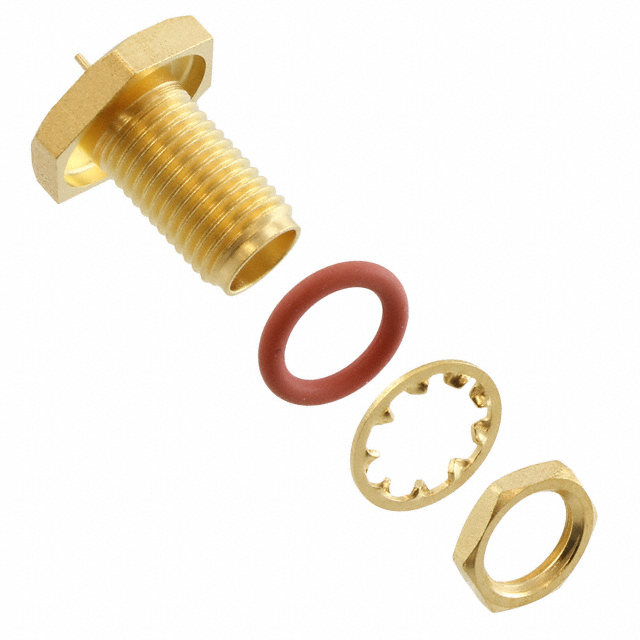

CONN SMA RCPT STR 50 OHM SOLDER
| Part | Center Contact Plating | Body Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Housing Color | Connector Style | Mounting Type | Number of Ports | Shield Termination | Center Contact Material | Impedance | Contact Termination | Fastening Type | Frequency - Max [Max] | Connector Type | Voltage Rating | Mating Cycles | Mounting Feature | Body Finish | Features | Convert To (Adapter End) | Convert From (Adapter End) | Conversion Type | Style | Adapter Type | Adapter Series | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 1 Connector 1 Contact 1 Gasket | Silver | SMA | Panel Mount Threaded | 1 | Solder | Beryllium Copper | 50 Ohms | Solder | Threaded | 18 GHz | Receptacle Female Socket | ||||||||||||
 TE Connectivity AMP Connectors | SMA | ||||||||||||||||||||||||||||
TE Connectivity AMP Connectors | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | -65 ░C | 125 °C | Silver | SMA | Panel Mount | 1 | Solder | Beryllium Copper | 50 Ohms | Turret | Threaded | 12.4 GHz | Female Socket Jack | 335 V | 500 | Flange | ||||||||||
 TE Connectivity AMP Connectors | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | Gold | SMA | Panel Mount Threaded | 1 | Solder | Beryllium Copper | 50 Ohms | Solder | Threaded | Receptacle Female Socket | 500 | Gold | Extended Insulation Hermetically Sealed | |||||||||||||
TE Connectivity AMP Connectors | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Free Hanging (In-Line) | Beryllium Copper | 50 Ohms | 18 GHz | SMA Plug Male Pin | Male Pin SMA Plug | Same Series | Straight | Plug to Plug | OSM to OSM | Male to Male | |||||||||||||
 TE Connectivity AMP Connectors | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 1 Connector 1 Contact 1 Lockwasher 1 Nut | Gold | SMA | Panel Mount | 1 | Solder | Beryllium Copper | 50 Ohms | Solder | Threaded | 18 GHz | Receptacle Female Socket | 335 V | 500 | Bulkhead - Front Side Nut | Gold | ||||||||
 TE Connectivity AMP Connectors | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | -65 ░C | 125 °C | Gold | SMA | Right Angle Through Hole | 1 | Solder | Beryllium Copper | 50 Ohms | Solder | Threaded | 12.4 GHz | Receptacle Female Socket | 335 V | 500 | Gold | ||||||||||
TE Connectivity AMP Connectors | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | -65 ░C | 125 °C | 1 Connector 1 Gasket | Gold | SMA | Panel Mount Threaded | 1 | Solder | Beryllium Copper | 50 Ohms | Solder | Threaded | 26.5 GHz | Receptacle Female Socket | 335 V | 500 | Gold | Extended Insulation Hermetically Sealed |
