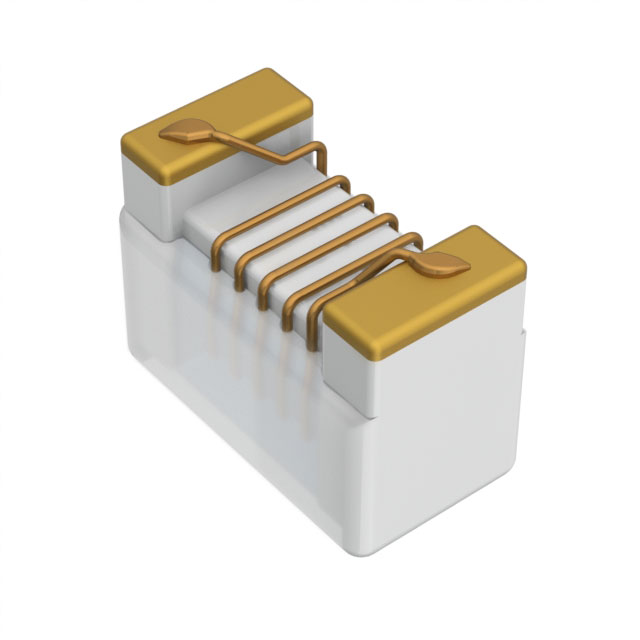

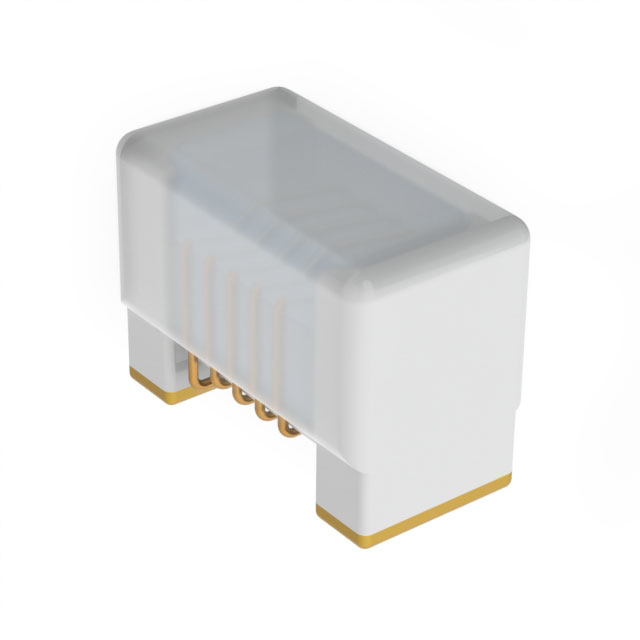

CW105550A Series

Catalog

IND,1X.55X.5MM,2.7NH±.3,0.86A,NON-SHDSMD /TAPE & REEL - 7" REEL ROHS COMPLIANT: YES

Part	Current Rating (Amps)	Material - Core	Type	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Ratings	Tolerance	Frequency - Self Resonant	Supplier Device Package	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance Frequency - Test	Package / Case	Inductance	Q @ Freq	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)
Bourns Inc. CW105550A-2N7D	0.86 A	Ceramic	Wirewound	125 °C	-40 C	Unshielded	0.6 mm	0.024 in	120 mOhm	AEC-Q200	0.3 nH	6 GHz	0402	Surface Mount	0.039 "	0.55 mm	0.022 in	1 mm	250 MHz	0402 (1005 Metric)	2.7 nH	16 250 MHz
Bourns Inc. CW105550A-5N1J	800 mA	Ceramic	Wirewound	125 °C	-40 C	Unshielded	0.6 mm	0.024 in	83 mOhm	AEC-Q200	5 %	5.8 GHz	0402	Surface Mount	0.039 "	0.55 mm	0.022 in	1 mm	250 MHz	0402 (1005 Metric)	5.1 nH	23 250 MHz
Bourns Inc. CW105550A-R12J	110 mA	Ceramic	Wirewound	125 °C	-40 C	Unshielded	0.6 mm	0.024 in	2.66 Ohm	AEC-Q200	5 %	1.1 GHz	0402	Surface Mount	0.039 "	0.55 mm	0.022 in	1 mm	150 MHz	0402 (1005 Metric)	120 nH	20 150 MHz
Bourns Inc. CW105550A-91NJ	120 mA	Ceramic	Wirewound	125 °C	-40 C	Unshielded	0.6 mm	0.024 in	2.3 Ohm	AEC-Q200	5 %	1.35 GHz	0402	Surface Mount	0.039 "	0.55 mm	0.022 in	1 mm	150 MHz	0402 (1005 Metric)	91 nH	20 150 MHz
Bourns Inc. CW105550A-12NJ	0.64 A	Ceramic	Wirewound	125 °C	-40 C	Unshielded	0.6 mm	0.024 in	120 mOhm	AEC-Q200	5 %	3.6 GHz	0402	Surface Mount	0.039 "	0.55 mm	0.022 in	1 mm	250 MHz	0402 (1005 Metric)	12 nH		26	250 MHz
Bourns Inc. CW105550A-2N2D	960 mA	Ceramic	Wirewound	125 °C	-40 C	Unshielded	0.6 mm	0.024 in		AEC-Q200	0.3 nH	6 GHz	0402	Surface Mount	0.039 "	0.55 mm	0.022 in	1 mm	250 MHz	0402 (1005 Metric)		18 250 MHz			70 mOhm
Bourns Inc. CW105550A-4N7J	0.64 A	Ceramic	Wirewound	125 °C	-40 C	Unshielded	0.6 mm	0.024 in		AEC-Q200	5 %	4.775 GHz	0402	Surface Mount	0.039 "	0.55 mm	0.022 in	1 mm	250 MHz	0402 (1005 Metric)	4.7 nH	15 250 MHz			130 mOhm
Bourns Inc. CW105550A-2N0D	1.04 A	Ceramic	Wirewound	125 °C	-40 C	Unshielded	0.6 mm	0.024 in		AEC-Q200	0.3 nH	6 GHz	0402	Surface Mount	0.039 "	0.55 mm	0.022 in	1 mm	250 MHz	0402 (1005 Metric)	2 nH	16 250 MHz			70 mOhm
Bourns Inc. CW105550A-30NJ	400 mA	Ceramic	Wirewound	125 °C	-40 C	Unshielded	0.6 mm	0.024 in	300 mOhm	AEC-Q200	5 %	2.35 GHz	0402	Surface Mount	0.039 "	0.55 mm	0.022 in	1 mm	250 MHz	0402 (1005 Metric)	30 nH		25	250 MHz
Bourns Inc. CW105550A-5N6J	760 mA	Ceramic	Wirewound	125 °C	-40 C	Unshielded	0.6 mm	0.024 in	83 mOhm	AEC-Q200	5 %	5.8 GHz	0402	Surface Mount	0.039 "	0.55 mm	0.022 in	1 mm	250 MHz	0402 (1005 Metric)	5.6 nH	23 250 MHz
