831-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

SKT 2MM STRGT SKT SGL ROW THRU

...

Part	Insulation Material	Contact Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Length - Post	Contact Length - Post	Fastening Type	Number of Rows	Termination	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Material Flammability Rating	Contact Finish - Post	Insulation Height	Insulation Height	Number of Positions	Connector Type	Contact Finish - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Number of Positions [custom]	Number of Positions
Mill-Max Manufacturing Corp. 831-43-010-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	Black	0.125 in	3.18 mm	Push-Pull	1	Solder	Through Hole	0.76 Ám	30 Áin	Female Socket	-55 C	125 °C	3 A	UL94 V-0	Tin	0.165 in	4.2 mm	10	Receptacle	Gold	All	0.079 "	2 mm
Mill-Max Manufacturing Corp. 831-43-007-30-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	Black			Push-Pull	1	Solder	Surface Mount	0.76 Ám	30 Áin	Female Socket	-55 C	125 °C	3 A	UL94 V-0	Tin			7	Receptacle	Gold	All	0.079 "	2 mm	0.228 "	5.8 mm

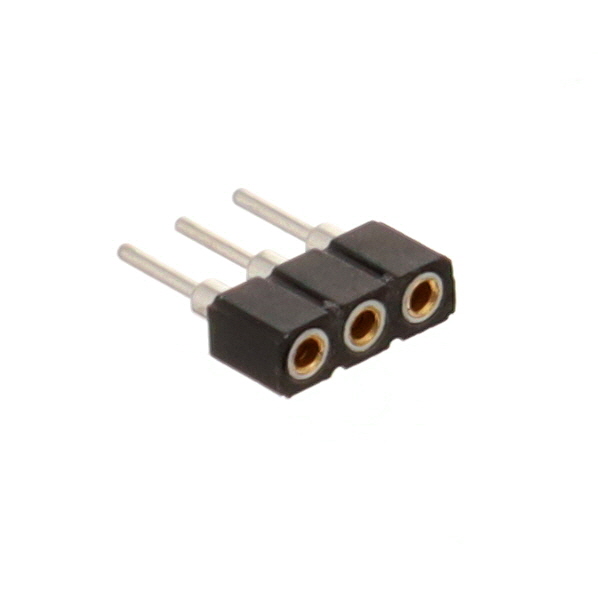

Mill-Max Manufacturing Corp. 831-43-003-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	Black	0.125 in	3.18 mm	Push-Pull	1	Solder	Through Hole	0.76 Ám	30 Áin	Female Socket	-55 C	125 °C	3 A	UL94 V-0	Tin	0.165 in	4.2 mm		Receptacle	Gold	All	0.079 "	2 mm
Mill-Max Manufacturing Corp. 831-43-001-30-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	Black			Push-Pull	1	Solder	Surface Mount	0.76 Ám	30 Áin	Female Socket	-55 C	125 °C	3 A	UL94 V-0	Tin			1	Receptacle	Gold	All			0.228 "	5.8 mm
Mill-Max Manufacturing Corp. 831-43-032-30-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	Black			Push-Pull	1	Solder	Surface Mount	0.76 Ám	30 Áin	Female Socket	-55 C	125 °C	3 A	UL94 V-0	Tin				Receptacle	Gold	All	0.079 "	2 mm	0.228 "	5.8 mm
Mill-Max Manufacturing Corp. 831-43-004-30-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	Black			Push-Pull	1	Solder	Surface Mount	0.76 Ám	30 Áin	Female Socket	-55 C	125 °C	3 A	UL94 V-0	Tin			4	Receptacle	Gold	All	0.079 "	2 mm	0.228 "	5.8 mm
Mill-Max Manufacturing Corp. 831-43-028-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	Black	0.125 in	3.18 mm	Push-Pull	1	Solder	Through Hole	0.76 Ám	30 Áin	Female Socket	-55 C	125 °C	3 A	UL94 V-0	Tin	0.165 in	4.2 mm	28	Receptacle	Gold	All	0.079 "	2 mm
Mill-Max Manufacturing Corp. 831-43-036-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	Black	0.125 in	3.18 mm	Push-Pull	1	Solder	Through Hole	0.76 Ám	30 Áin	Female Socket	-55 C	125 °C	3 A	UL94 V-0	Tin	0.165 in	4.2 mm	36	Receptacle	Gold	All	0.079 "	2 mm
Mill-Max Manufacturing Corp. 831-43-031-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	Black	0.125 in	3.18 mm	Push-Pull	1	Solder	Through Hole	0.76 Ám	30 Áin	Female Socket	-55 C	125 °C	3 A	UL94 V-0	Tin	0.165 in	4.2 mm		Receptacle	Gold	All	0.079 "	2 mm			31
Mill-Max Manufacturing Corp. 831-43-047-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	Black	0.125 in	3.18 mm	Push-Pull	1	Solder	Through Hole	0.76 Ám	30 Áin	Female Socket	-55 C	125 °C	3 A	UL94 V-0	Tin	0.165 in	4.2 mm		Receptacle	Gold	All	0.079 "	2 mm				47
