787780 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

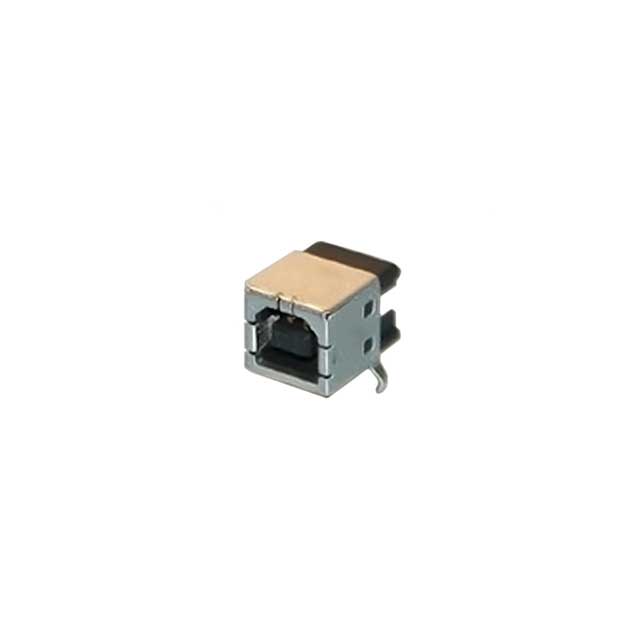

CONN RCPT TYPEB 4POS R/A
| Part | Material Flammability Rating | Shell/Shielding Material | Contact Finish | Insulation Color | Voltage - Rated | Connector Type | Mounting Feature | Termination | Mating Cycles | Current Rating (Amps) | Mounting Type | Shielding | Gender | Number of Ports | Features | Operating Temperature [Min] | Operating Temperature [Max] | Number of Contacts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | UL94 V-0 | Copper Alloy | Gold | Black | 30 VAC | USB-B (USB TYPE-B) | Horizontal | Solder | 1500 | 1 A | Right Angle Through Hole | Shielded | Receptacle | 1 | Board Lock | -55 C | 85 °C | 4 |
TE Connectivity AMP Connectors | UL94 V-0 | Copper Alloy | Gold Gold-Palladium | Black | 30 VAC | USB-B (USB TYPE-B) | Horizontal | Solder | 1500 | 1 A | Right Angle Through Hole | Shielded | Receptacle | 1 | Board Lock | -55 C | 85 °C | 4 |
TE Connectivity AMP Connectors | UL94 V-0 | Copper Alloy | Gold Gold-Palladium | Black | 30 VAC | USB-B (USB TYPE-B) | Horizontal | Solder | 1500 | 1 A | Right Angle Through Hole | Shielded | Receptacle | 1 | Board Lock | -55 C | 85 °C | 4 |
