C01510D006 Series
Manufacturer: Amphenol Tuchel Industrial
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

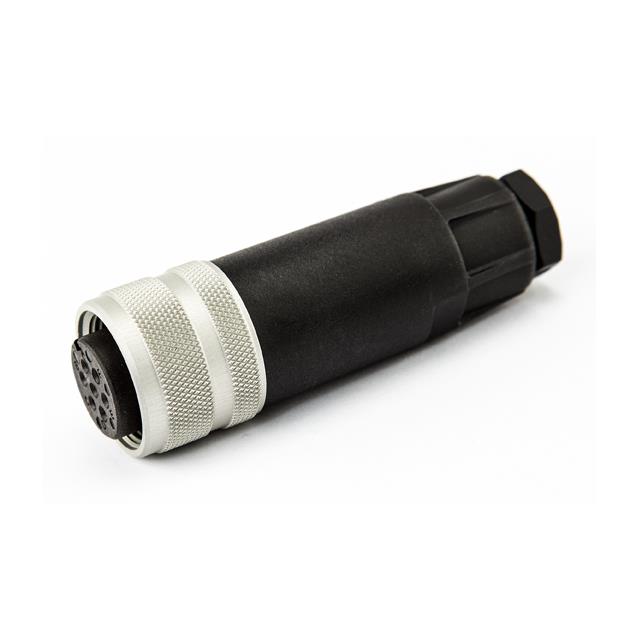

CONN PLUG HSNG FMALE 6POS INLINE
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Shell Material | Type | Fastening Type | Includes | Includes Total Count | Number of Positions | Connector Type | Ingress Protection IP Rating | Ingress Protection Description | Note | Material Flammability Rating | Contact Shape | Features | Shielding | Housing Color | Contact Type | Contact Size | Insert Material | Orientation | Mounting Type | Position Types |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Tuchel Industrial | 100 °C | -40 °C | Aluminum | For Female Sockets | Threaded | Backshell Cable Clamp Cable Nut Connector Gasket Screws Washer | 9 pcs | 6 | Plug Housing | IP65 | Dust Tight Water Resistant | Contacts Not Included | UL94 V-0 | Circular | Backshell Cable Clamp Coupling Nut | Unshielded | Black Silver | Crimp | 1.6 mm | Nylon 6/6 PA66 Polyamide | Keyed | Free Hanging (In-Line) | |
 Amphenol Tuchel Industrial | 100 °C | -40 °C | Aluminum | For Female Sockets | Threaded | Backshell Cable Clamp Cable Nut Connector Gasket Screws Washer | 9 pcs | 7 | Plug Housing | IP65 | Dust Tight Water Resistant | Contacts Not Included | UL94 V-0 | Circular | Backshell Cable Clamp Coupling Nut | Unshielded | Black Silver | Crimp | 1.6 mm | Nylon 6/6 PA66 Polyamide | Keyed | Free Hanging (In-Line) | PE |
