BA10358 Series

Catalog

OP AMP DUAL GP ±16V/32V 8-PIN SOP T/R

Part	Supplier Device Package	Amplifier Type	Slew Rate	Operating Temperature [Max]	Operating Temperature [Min]	Current - Input Bias	Voltage - Supply Span (Min) [Min]	Voltage - Input Offset	Package / Case	Current - Supply	Number of Circuits	Current - Output / Channel	Mounting Type	Voltage - Supply Span (Max) [Max]	Gain Bandwidth Product	Package / Case	Package / Case
Rohm Semiconductor BA10358F-E1	8-SOP	General Purpose	0.2 V/µs	85 °C	-40 C	45 nA	3 V	2 mV	8-SOIC (0.173" 4.40mm Width)	700 µA	2	20 mA	Surface Mount	32 V	500 kHz
Rohm Semiconductor BA10358F-E2	8-SOP	General Purpose	0.2 V/µs	85 °C	-40 C	45 nA	3 V	2 mV	8-SOIC (0.173" 4.40mm Width)	700 µA	2	20 mA	Surface Mount	32 V	500 kHz

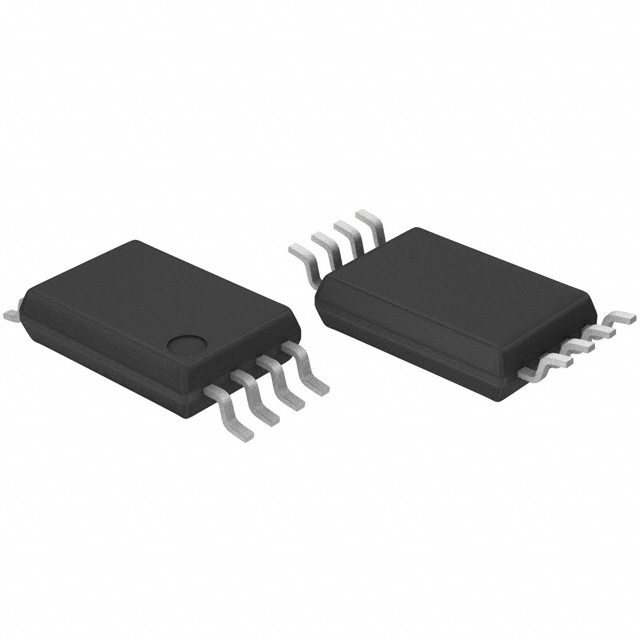

Rohm Semiconductor BA10358FV-E2	8-SSOP-B	General Purpose	0.2 V/µs	85 °C	-40 C	45 nA	3 V	2 mV	8-LSSOP (0.173" 4.40mm Width)	700 µA	2	20 mA	Surface Mount	32 V	500 kHz
Rohm Semiconductor BA10358	8-DIP	General Purpose	0.2 V/µs	85 °C	-40 C	45 nA	3 V	2 mV	8-DIP (0.300" 7.62mm)	700 µA	2	20 mA	Through Hole	32 V	500 kHz
Rohm Semiconductor BA10358FJ-GE2	8-SOP-J	General Purpose	0.2 V/µs	85 °C	-40 C	45 nA	3 V	2 mV	8-SOIC	500 µA	2	20 mA	Surface Mount	32 V	500 kHz	0.154 in	3.9 mm
