80110 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

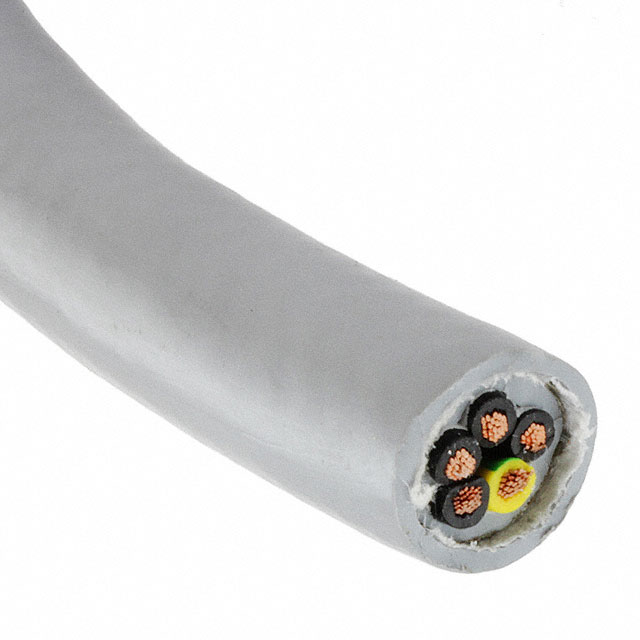

CABLE 5CON 24AWG SLATE SHLD 100'
| Part | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Coverage | Length [x] | Length [x] | Wire Gauge | Shield Type | Jacket Color | Number of Conductors | Conductor Insulation | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Material | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 90 °C | -50 °C | Multi-Conductor | 5.54 mm | 0.218 in | 85 % | 30.5 m | 100 ft | 24 AWG | Braid | Slate | 5 | Polyphenylene Ether (PPE) | Polyurethane (PU) | 0.0319 in | 0.81 mm | Copper Tinned | 600 V |
