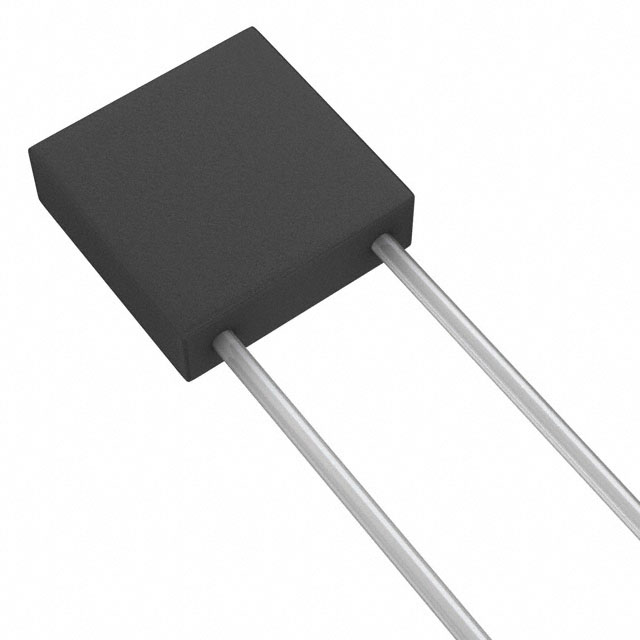

C062C1 Series

Manufacturer: KEMET

Catalog

.100UF 100V ROHS COMPLIANT: YES

Part	Voltage - Rated	Temperature Coefficient	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Tolerance	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max)	Capacitance	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Lead Style	Features
KEMET C062C104K1R5TA	100 V	X7R	Radial	0.29 "	2.29 mm	7.37 mm	0.09 "	Through Hole	10 %	0.2 in	5.08 mm	0.3 in	7.62 mm	100000 pF	General Purpose	-55 C	125 °C	Straight
KEMET C062C103J1G5TA	100 V	C0G NP0	Radial	0.29 "	2.29 mm	7.37 mm	0.09 "	Through Hole	5 %	0.2 in	5.08 mm	0.3 in	7.62 mm	10000 pF	General Purpose	-55 C	125 °C	Straight	Low ESL
KEMET C062C105K5R5TA	50 VDC	X7R	Radial	0.29 "	2.29 mm	7.37 mm	0.09 "	Through Hole	10 %	0.2 in	5.08 mm	0.3 in	7.62 mm	1 µF	General Purpose	-55 C	125 °C	Straight
KEMET C062C104K1R5TA7301	100 V	X7R	Radial	0.29 "	2.29 mm	7.37 mm	0.09 "	Through Hole	10 %	0.2 in	5.08 mm			100000 pF	General Purpose	-55 C	125 °C	Straight
KEMET C062C103F1G5CA	100 V	C0G NP0	Radial	0.29 "	2.29 mm	7.37 mm	0.09 "	Through Hole	1 %	0.2 in	5.08 mm			10000 pF	General Purpose	-55 C	125 °C	Straight	Low ESL
KEMET C062C105J5R5CA	50 VDC	X7R	Radial	0.29 "	2.29 mm	7.37 mm	0.09 "	Through Hole	5 %	0.2 in	5.08 mm	0.3 in	7.62 mm	1 µF	General Purpose	-55 C	125 °C	Straight
