L6R160 Series

Catalog

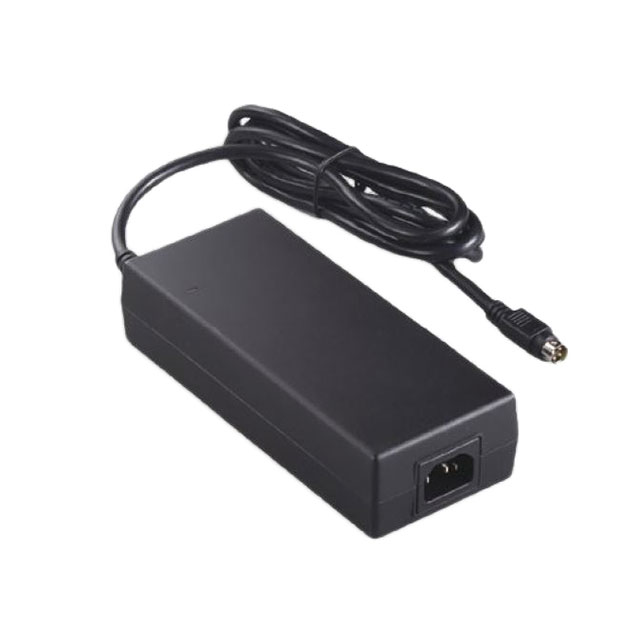

AC/DC DESKTOP ADAPTER 48V 158W

Part	Weight [custom]	Weight [custom]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Input Type	Approval Agency	Output Connector	Current - Output (Max) [Max]	Region Utilized	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Efficiency	Applications	Voltage - Output	No Load Power Consumption	Form	Power (Watts)	Input Connector	Standard Number
Tri-Mag, LLC L6R160D-480-C6	700 g	1.543 lb	175 mm	1.65 "	6.89 in	2.91 in	74 mm	42 mm	Cord (Sold Separately)	CE cULus EN FCC TUV	Power DIN 4 Pin	3.33 A	International	1.5 m	59 in	264 VAC	90 VAC	40 °C	CoC Tier 2 Level VI	ITE (Commercial)	48 V	150 mW	Desktop (Class I)	160 W	IEC 320-C6	62368-1
Tri-Mag, LLC L6R160D-120-C6	700 g	1.543 lb	175 mm	1.65 "	6.89 in	2.91 in	74 mm	42 mm	Cord (Sold Separately)	CE cULus EN FCC TUV	Power DIN 4 Pin	12.5 A	International	1.2 m	47.2 in	264 VAC	90 VAC	40 °C	CoC Tier 2 Level VI	ITE (Commercial)	12 V	150 mW	Desktop (Class I)	150 W	IEC 320-C6	62368-1
Tri-Mag, LLC L6R160D-240-C6	700 g	1.543 lb	175 mm	1.65 "	6.89 in	2.91 in	74 mm	42 mm	Cord (Sold Separately)	CE cULus EN FCC TUV	Power DIN 4 Pin	6.67 A	International	1.5 m	59 in	264 VAC	90 VAC	40 °C	CoC Tier 2 Level VI	ITE (Commercial)	24 V	150 mW	Desktop (Class I)	160 W	IEC 320-C6	62368-1
Tri-Mag, LLC L6R160D-560-C6	700 g	1.543 lb	175 mm	1.65 "	6.89 in	2.91 in	74 mm	42 mm	Cord (Sold Separately)	CE cULus EN FCC TUV	Power DIN 4 Pin	2.86 A	International	1.5 m	59 in	264 VAC	90 VAC	40 °C	CoC Tier 2 Level VI	ITE (Commercial)	56 V	150 mW	Desktop (Class I)	160 W	IEC 320-C6	62368-1
