8734 Series
Manufacturer: Belden Inc.
Beta
⌘K

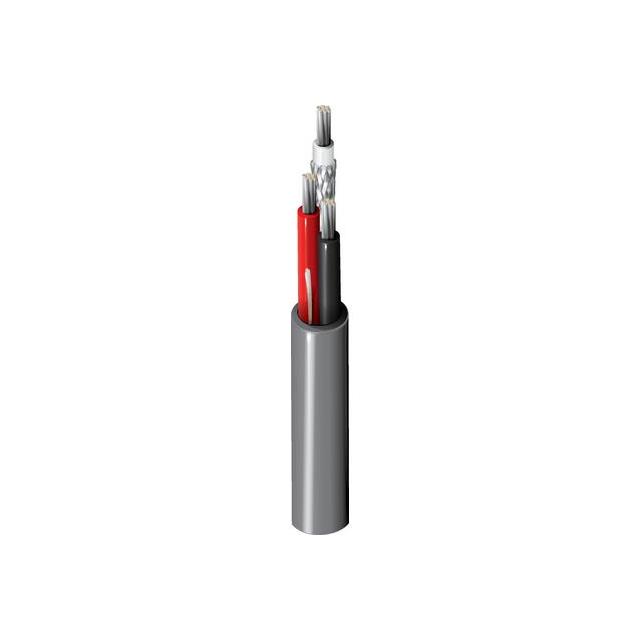

CABLE 3COND 22AWG CHRM SHD
| Part | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Ratings | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Usage | Voltage | Shield Type | Length | Length | Conductor Material | Jacket (Insulation) Material | Number of Conductors | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 80 % | Copper Tinned | 80 °C | -20 ░C | 0.635 mm | 0.025 in | Chrome | UL Style 2785 | 22 AWG | 30 AWG | 7 | Multi-Conductor | Audio Control Instrumentation | 300 VDC | Braid | 304.8 m | 1000 ft | Copper Tinned | Poly-Vinyl Chloride (PVC) | 3 | Poly-Vinyl Chloride (PVC) | 0.194 in | 4.93 mm |
