5853/19 Series

Catalog

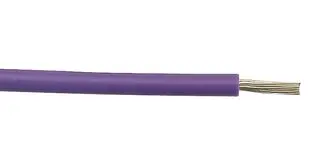

WIRE, PTFE, VIOLET, 26 AWG, 0.15 MM², 100 FT

Part	Jacket (Insulation) Material	Wire Gauge	Ratings	Qualification	Length [x]	Length [x]	Cable Type	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length
ALPHA WIRE 5853/19 VI005	Polytetrafluoroethylene (PTFE)	26 AWG	UL Style 1213	MIL-W-16878/4 Type E	100 ft	30.5 m	Hook-Up	Violet	19	38	-60 °C	200 °C	0.99 mm	0.039 in	600 V	Copper Silver Coated	0.25 mm	0.01 in
ALPHA WIRE 5853/19 BR001	Polytetrafluoroethylene (PTFE)	26 AWG	UL Style 1213	MIL-W-16878/4 Type E			Hook-Up	Brown	19	38	-60 °C	200 °C	0.99 mm	0.039 in	600 V	Copper Silver Coated	0.25 mm	0.01 in	304.8 m	1000 ft
ALPHA WIRE 5853/19 YL005	Polytetrafluoroethylene (PTFE)	26 AWG	UL Style 1213	MIL-W-16878/4 Type E	100 ft	30.5 m	Hook-Up	Yellow	19	38	-60 °C	200 °C	0.99 mm	0.039 in	600 V	Copper Silver Coated	0.25 mm	0.01 in
ALPHA WIRE 5853/19 YL001	Polytetrafluoroethylene (PTFE)	26 AWG	UL Style 1213	MIL-W-16878/4 Type E			Hook-Up	Yellow	19	38	-60 °C	200 °C	0.99 mm	0.039 in	600 V	Copper Silver Coated	0.25 mm	0.01 in	304.8 m	1000 ft
ALPHA WIRE 5853/19 OR005	Polytetrafluoroethylene (PTFE)	26 AWG	UL Style 1213	MIL-W-16878/4 Type E	100 ft	30.5 m	Hook-Up	Orange	19	38	-60 °C	200 °C	0.99 mm	0.039 in	600 V	Copper Silver Coated	0.25 mm	0.01 in
ALPHA WIRE 5853/19 BK005	Polytetrafluoroethylene (PTFE)	26 AWG	UL Style 1213	MIL-W-16878/4 Type E	100 ft	30.5 m	Hook-Up	Black	19	38	-60 °C	200 °C	0.99 mm	0.039 in	600 V	Copper Silver Coated	0.25 mm	0.01 in
ALPHA WIRE 5853/19 BK001	Polytetrafluoroethylene (PTFE)	26 AWG	UL Style 1213	MIL-W-16878/4 Type E			Hook-Up	Black	19	38	-60 °C	200 °C	0.99 mm	0.039 in	600 V	Copper Silver Coated	0.25 mm	0.01 in	304.8 m	1000 ft
ALPHA WIRE 5853/19 WH001	Polytetrafluoroethylene (PTFE)	26 AWG	UL Style 1213	MIL-W-16878/4 Type E			Hook-Up	White	19	38	-60 °C	200 °C	0.99 mm	0.039 in	600 V	Copper Silver Coated	0.25 mm	0.01 in	304.8 m	1000 ft
