Kss0 Series Series

Tactile Switches SPST NO-G LEAD 200g Subminiature SMT Side Actuated

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Tactile Switches SPST NO-G LEAD 200g Subminiature SMT Side Actuated

Part	Mounting Type	Illumination	Switch Travel [custom]	Switch Function	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Termination Style	Contact Rating @ Voltage	Ingress Protection	Actuator Orientation	Circuit	Actuator Type	Outline [y]	Outline [x]	Features
Littelfuse/Commercial Vehicle Products KSS231GLFS	Surface Mount Right Angle	Non-Illuminated	0.3 mm	Off-Mom	100000 Cycles	85 °C	-40 °C	0.25 kgf	Gull Wing	0.05 A 50 VDC	IP40	Side Actuated	SPST-NO	Rectangular Button	3.7 mm	7.6 mm	Tactile Feedback
Littelfuse/Commercial Vehicle Products KSS321GLFS	Surface Mount Right Angle	Non-Illuminated	0.3 mm	Off-Mom	100000 Cycles	85 °C	-40 °C	200 gf	Gull Wing	0.05 A 50 VDC	IP40	Side Actuated	SPST-NO	Rectangular Button	3.7 mm	7.6 mm	Tactile Feedback
Littelfuse/Commercial Vehicle Products KSS233GLFG	Surface Mount Right Angle	Non-Illuminated	0.3 mm	Off-Mom	100000 Cycles	125 °C	-40 °C	0.25 kgf	Gull Wing	0.01 A 50 VDC	IP40	Side Actuated	SPST-NO	Rectangular Button	3.7 mm	7.6 mm	Tactile Feedback
Littelfuse/Commercial Vehicle Products KSS333G LFG	Surface Mount Right Angle	Non-Illuminated	0.3 mm	Off-Mom	100000 Cycles	125 °C	-40 °C	0.25 kgf	Gull Wing	0.01 A 50 VDC	IP40	Side Actuated	SPST-NO	Rectangular Button	3.7 mm	7.6 mm	Tactile Feedback

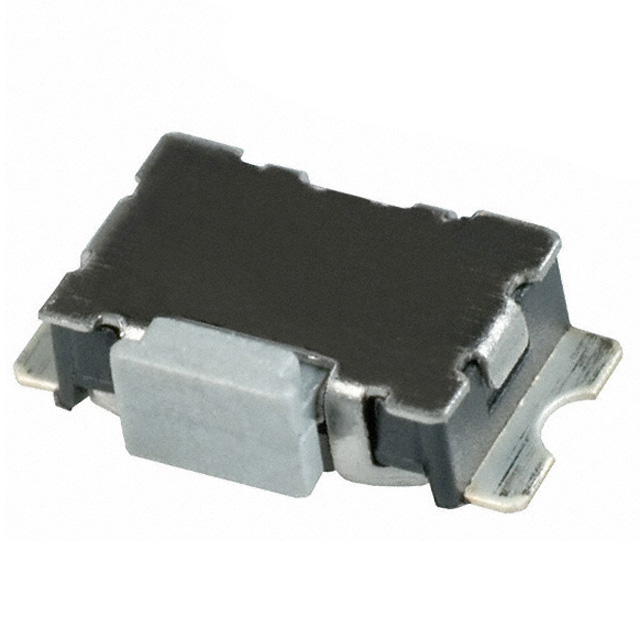

Littelfuse/Commercial Vehicle Products KSS341GLFS	Surface Mount Right Angle	Non-Illuminated	0.3 mm	Off-Mom	100000 Cycles	85 °C	-40 °C	400 gf	Gull Wing	0.05 A 50 VDC	IP40	Side Actuated	SPST-NO	Rectangular Button	3.7 mm	7.6 mm	Tactile Feedback
Littelfuse/Commercial Vehicle Products KSS331GLFS	Surface Mount Right Angle	Non-Illuminated	0.3 mm	Off-Mom	100000 Cycles	85 °C	-40 °C	0.25 kgf	Gull Wing	0.05 A 50 VDC	IP40	Side Actuated	SPST-NO	Rectangular Button	3.7 mm	7.6 mm	Tactile Feedback

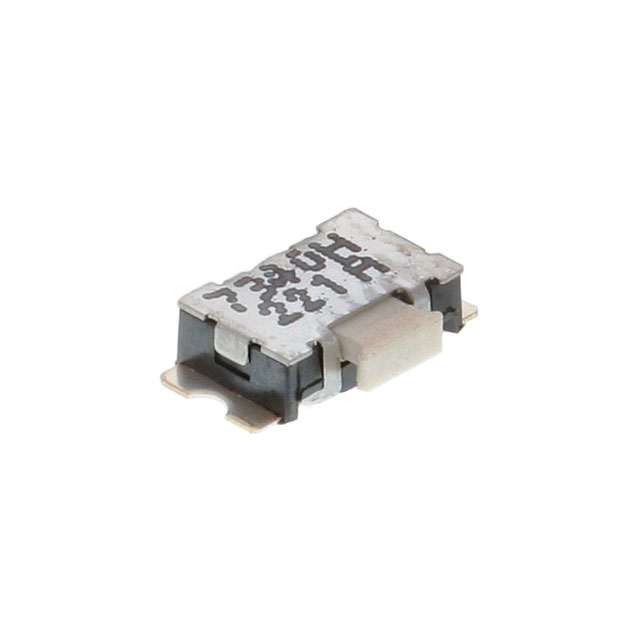

Littelfuse/Commercial Vehicle Products KSS221GLFS	Surface Mount Right Angle	Non-Illuminated	0.3 mm	Off-Mom	100000 Cycles	85 °C	-40 °C	200 gf	Gull Wing	0.05 A 50 VDC	IP40	Side Actuated	SPST-NO	Rectangular Button	3.7 mm	7.6 mm	Tactile Feedback
Littelfuse/Commercial Vehicle Products KSS223GLFG	Surface Mount Right Angle	Non-Illuminated	0.3 mm	Off-Mom	100000 Cycles	125 °C	-40 °C	200 gf	Gull Wing	0.01 A 50 VDC	IP40	Side Actuated	SPST-NO	Rectangular Button	3.7 mm	7.6 mm	Tactile Feedback

Catalog

Tactile Switches SPST NO-G LEAD 200g Subminiature SMT Side Actuated

Key Features

• Low profile of 1.7 mm

• High shear force

• Large flat top

Description

The KSS series subminiature SMT side actuated switch from C&K features a large flat top, has a low profile of 1.7 mm and can withstand high shear forces, making it ideal for products that are exposed to harsh environmental conditions, including health diagnostics, industrial electronics and consumer devices such as cell phones.
