857-022 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 22POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Termination	Pitch	Pitch	Read Out	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Gender	Number of Positions/Bay/Row	Card Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows [custom]	Number of Positions	Mounting Type	Contact Type	Contact Material	Contact Finish	Termination Rows	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Features

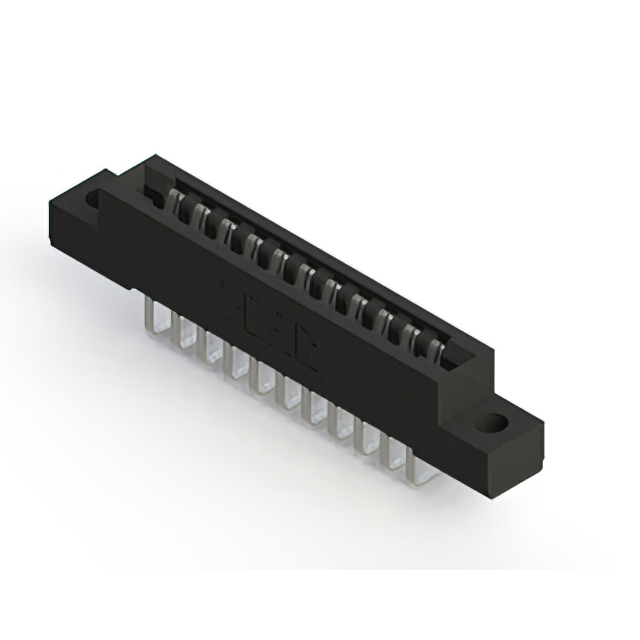

EDAC Inc. 857-022-459-202	Polyphenylene Sulfide (PPS)	2	Solder	3.96 mm	0.156 in	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Black	Female	11	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	2	22	Right Angle Through Hole	Semi Bellows	Copper Alloy	Tin
EDAC Inc. 857-022-420-202	Polyphenylene Sulfide (PPS)	2	Solder	3.96 mm	0.156 in	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Black	Female	11	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	2	22	Through Hole	Semi Bellows	Copper Alloy	Tin

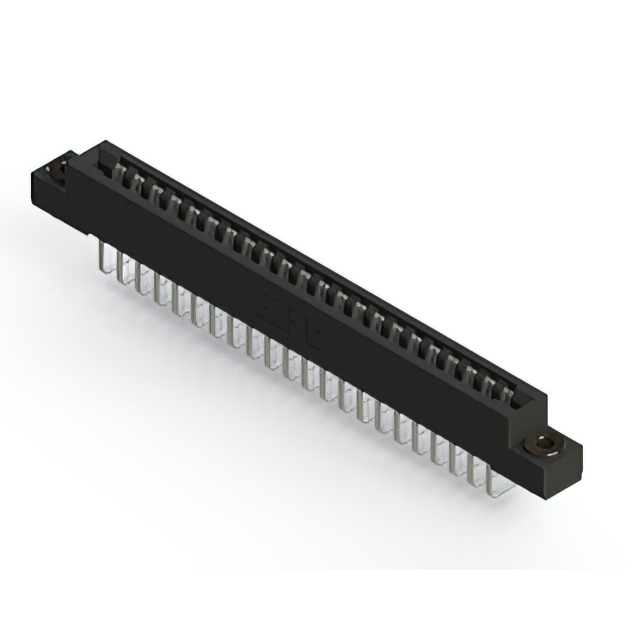

EDAC Inc. 857-022-458-103	Polyphenylene Sulfide (PPS)		Solder	3.96 mm	0.156 in	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Black	Female	22	Non Specified - Single Edge	Floating Bobbin Flush Mount	2.95 mm	0.116 "		22	Right Angle Through Hole	Semi Bellows	Copper Alloy	Tin	1	1

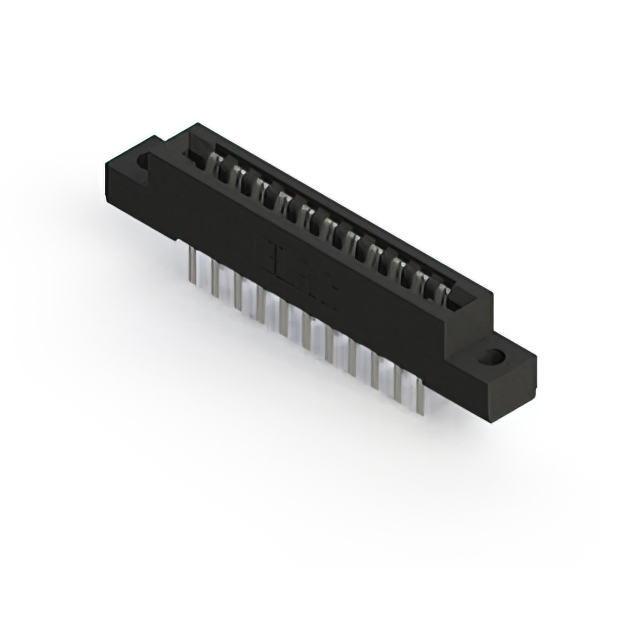

EDAC Inc. 857-022-440-202	Polyphenylene Sulfide (PPS)	2	Wire Wrap	3.96 mm	0.156 in	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Black	Female	11	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	2	22	Through Hole	Semi Bellows	Copper Alloy	Tin
EDAC Inc. 857-022-541-103	Polyphenylene Sulfide (PPS)		Wire Wrap	3.96 mm	0.156 in	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Black	Female	22	Non Specified - Dual Edge	Floating Bobbin Flush Mount	2.95 mm	0.116 "	2	44	Through Hole	Semi Bellows	Copper Alloy	Gold	1		0.25 Ám	10 Áin

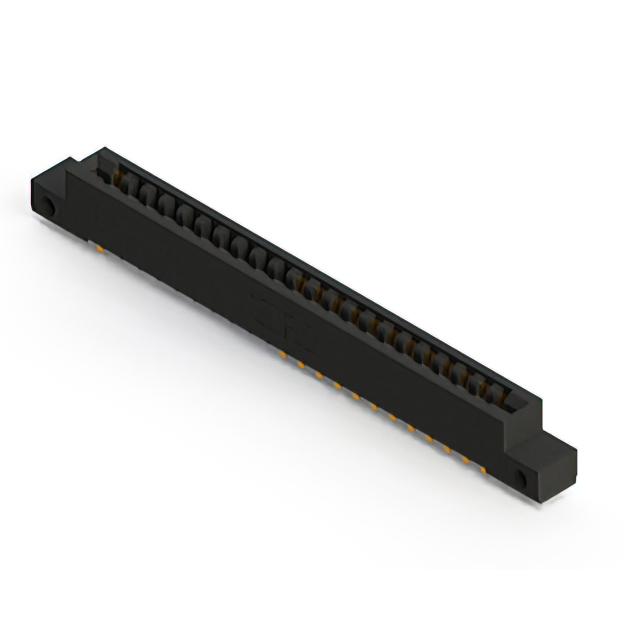

EDAC Inc. 857-022-559-112	Polyphenylene Sulfide (PPS)		Solder	3.96 mm	0.156 in	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Black	Female	22	Non Specified - Single Edge	Side Mount Opening Unthreaded	3.25 mm	0.128 "		22	Right Angle Through Hole	Semi Bellows	Copper Alloy	Gold	1	1	0.25 Ám	10 Áin

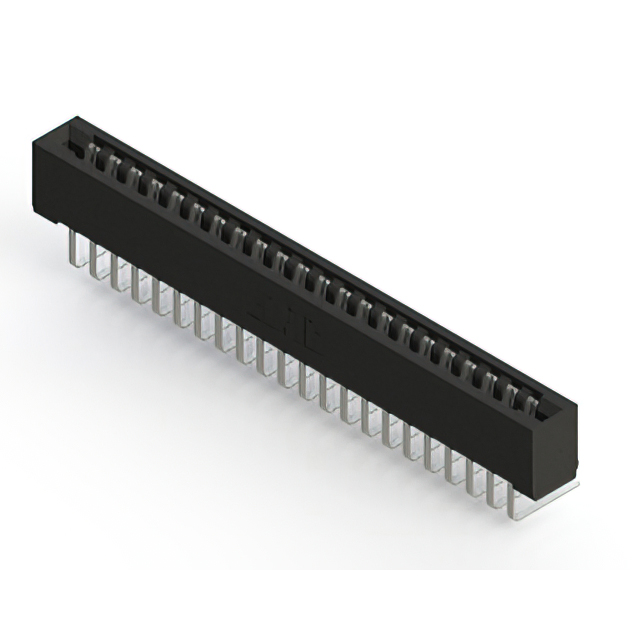

EDAC Inc. 857-022-458-101	Polyphenylene Sulfide (PPS)		Solder	3.96 mm	0.156 in	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Black	Female	22	Non Specified - Single Edge					22	Right Angle Through Hole	Semi Bellows	Copper Alloy	Tin	1	1

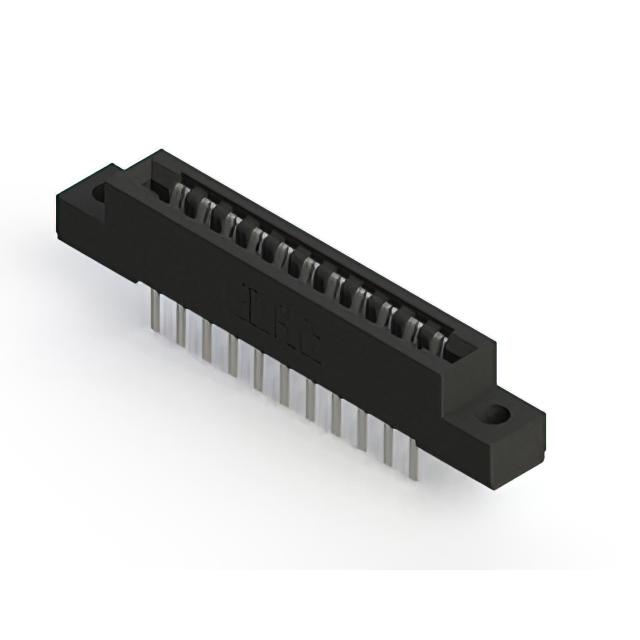

EDAC Inc. 857-022-458-202	Polyphenylene Sulfide (PPS)	2	Solder	3.96 mm	0.156 in	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Black	Female	11	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	2	22	Right Angle Through Hole	Semi Bellows	Copper Alloy	Tin

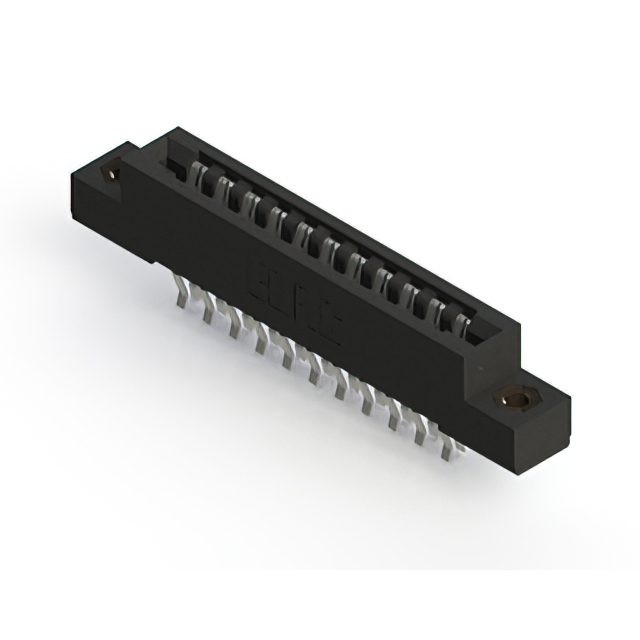

EDAC Inc. 857-022-460-207	Polyphenylene Sulfide (PPS)	2	Solder	3.96 mm	0.156 in	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Black	Female	11	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening			2	22	Board Edge Straddle Mount	Semi Bellows	Copper Alloy	Tin					Card Extender

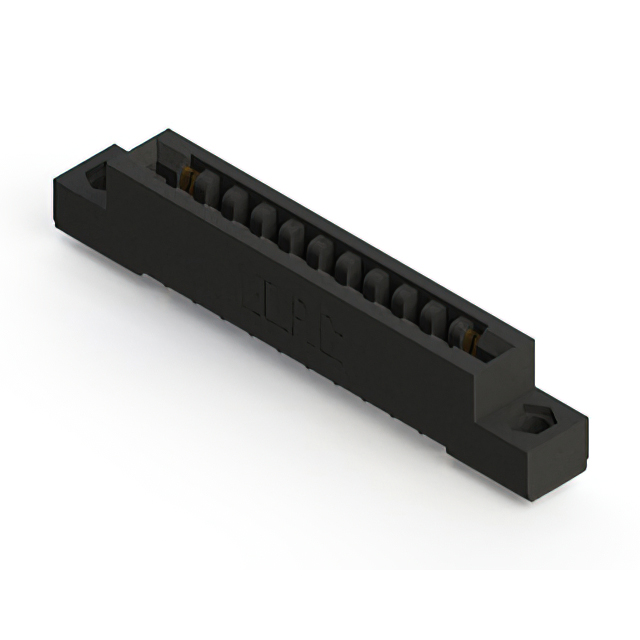

EDAC Inc. 857-022-556-204	Polyphenylene Sulfide (PPS)	2	Solder	3.96 mm	0.156 in	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Black	Female	11	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	2	22	Board Edge Straddle Mount	Semi Bellows	Copper Alloy	Gold			0.25 Ám	10 Áin	Card Extender
