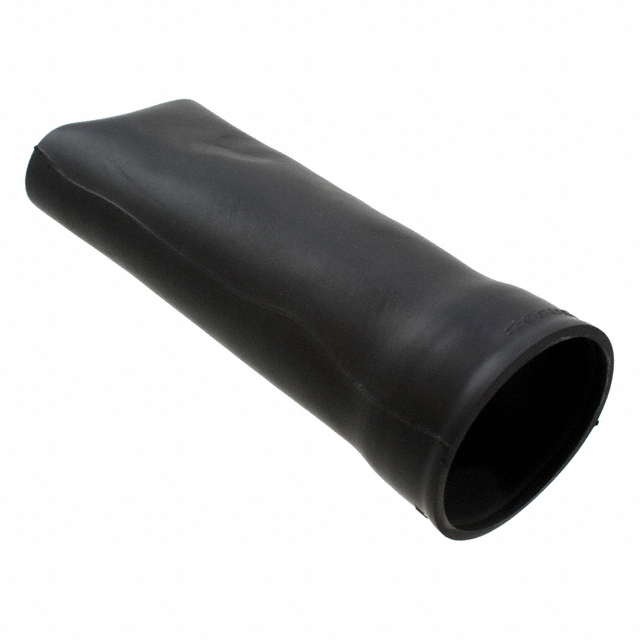

202D242 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

HEATSHRINK BOOT SZ42 BLACK

Part	Features	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Material	Color	Type	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Large Recovered Length	Large Recovered Length	Total Length Recovered	Total Length Recovered	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Small Recovered Length [x]	Small Recovered Length	Shell Size - Insert	Large Recovered Length [x]	Large Recovered Length [x]	Total Length Recovered [x]	Total Length Recovered [x]	Small Recovered Length
TE Connectivity Aerospace, Defense and Marine 202D242-4-22-0	Flame Retardant Fluid Resistant Heat Resistant Lip	1.34 in	34.04 mm	Polyolefin (PO) Flexible Irradiated	Black	Boot	1.34 in	34.04 mm	9.7 mm	0.382 "	0.48 in	12.19 mm	101.6 mm	4 "	22.91 mm	0.902 in	2.87 in	72.9 mm	42
TE Connectivity Aerospace, Defense and Marine 202D242-3-22-0	Flame Retardant Fluid Resistant Heat Resistant Lip	1.34 in	34.04 mm	Polyolefin (PO) Semi-Rigid Irradiated	Black	Boot	1.34 in	34.04 mm	9.7 mm	0.382 "	0.48 in	12.19 mm	101.6 mm	4 "	22.91 mm	0.902 in	2.87 in	72.9 mm	42
TE Connectivity Aerospace, Defense and Marine 202D242-4-32-0	Flame Retardant Fluid Resistant Heat Resistant Lip Potting (Injection) Port Vent Port	1.34 in	34.04 mm	Polyolefin (PO) Flexible Irradiated	Black	Boot	1.34 in	34.04 mm	9.7 mm	0.382 "			101.6 mm	4 "	22.91 mm	0.902 in			42	15.7 mm	0.618 "
TE Connectivity Aerospace, Defense and Marine 202D242-12-0-CS5349	Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Lip	0.839 "	21.31 mm	Fluoroelastomer (FKM) Flexible Irradiated	Black	Boot	1.34 in	34.04 mm	9.7 mm	0.382 "					22.91 mm	0.902 in		130.81 mm	42	15.7 mm	0.618 "	6.28 in	159.51 mm	5.15 in
TE Connectivity Aerospace, Defense and Marine 202D242-12-92-0	Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Lip	1.34 in	34.04 mm	Fluoroelastomer (FKM) Flexible Irradiated	Black	Boot	1.34 in	34.04 mm	9.7 mm	0.382 "					22.91 mm	0.902 in		130.81 mm	42	15.7 mm	0.618 "	6.28 in	159.51 mm	5.15 in
TE Connectivity Aerospace, Defense and Marine 202D242-12-22-CS-2094-0	Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Lip			Fluoroelastomer (FKM) Flexible Irradiated	Black	Boot													42
TE Connectivity Aerospace, Defense and Marine 202D242-4-61/42-0-CS5077	Adhesive Coating Drain Holes Flame Retardant Fluid Resistant Heat Resistant Lip Strain Resistant	1.34 in	34.04 mm	Polyolefin (PO) Flexible Irradiated	Black Red	Boot	1.34 in	34.04 mm	9.7 mm	0.382 "	0.48 in	12.19 mm			22.91 mm	0.902 in		130.81 mm	42			6.28 in	159.51 mm	5.15 in
TE Connectivity Aerospace, Defense and Marine 202D242-25-08-0	Abrasion Resistant Chemical Resistant Flame Retardant Fluid Resistant Heat Resistant Lip Strain Resistant	1.34 in	34.04 mm	Elastomer Semi-Rigid Irradiated	Black	Boot	1.34 in	34.04 mm	9.7 mm	0.382 "	0.48 in	12.19 mm			22.91 mm	0.902 in	0.67 in	17.02 mm	42			1.8 in	45.72 mm
TE Connectivity Aerospace, Defense and Marine 202D242-4-0-CS5349	Flame Retardant Fluid Resistant Heat Resistant Lip	1.34 in	34.04 mm	Polyolefin (PO) Flexible Irradiated	Black	Boot	1.34 in	34.04 mm	9.7 mm	0.382 "					22.91 mm	0.902 in		130.81 mm	42	15.7 mm	0.618 "	6.28 in	159.51 mm	5.15 in
TE Connectivity Aerospace, Defense and Marine 202D242-4/86-0	Adhesive Coating Flame Retardant Fluid Resistant Heat Resistant Lip Strain Resistant	1.34 in	34.04 mm	Polyolefin (PO) Flexible Irradiated	Black	Boot	1.34 in	34.04 mm	9.7 mm	0.382 "					22.91 mm	0.902 in		130.81 mm	42	15.7 mm	0.618 "	6.28 in	159.51 mm	5.15 in
