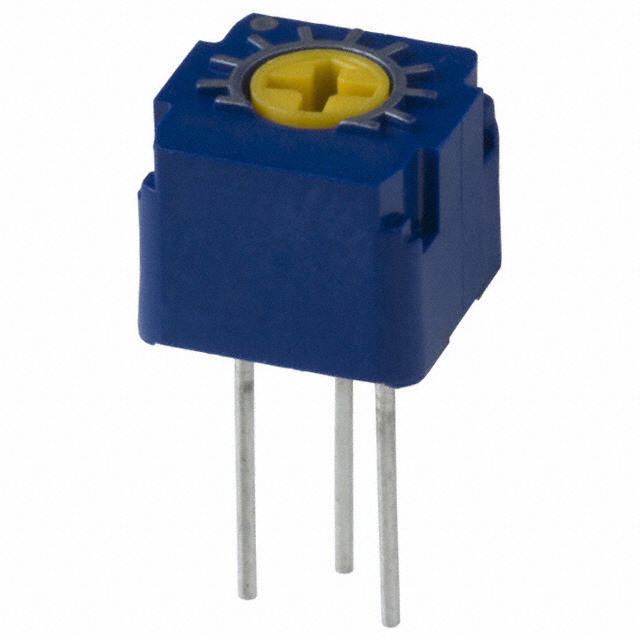

CT6EW Series

Catalog

TRIMMER 500K OHM 0.5W PC PIN TOP

Part	Power (Watts)	Power (Watts)	Number of Turns	Resistive Material	Temperature Coefficient	Termination Style	Tolerance	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Adjustment Type	Resistance
Nidec Components Corporation CT-6EW504	0.5 W	0.5 W	1	Cermet	100 ppm/°C	PC Pins	10 %	Through Hole	7 mm	0.276 in	0.276 in	7 mm	Top Adjustment
Nidec Components Corporation CT-6EW202	0.5 W	0.5 W	1	Cermet	100 ppm/°C	PC Pins	10 %	Through Hole	7 mm	0.276 in	0.276 in	7 mm	Top Adjustment	2 kOhms
Nidec Components Corporation CT-6EW503	0.5 W	0.5 W	1	Cermet	100 ppm/°C	PC Pins	10 %	Through Hole	7 mm	0.276 in	0.276 in	7 mm	Top Adjustment	50 kOhms
Nidec Components Corporation CT-6EW205	0.5 W	0.5 W	1	Cermet	100 ppm/°C	PC Pins	10 %	Through Hole	7 mm	0.276 in	0.276 in	7 mm	Top Adjustment	2 MOhms
Nidec Components Corporation CT-6EW104	0.5 W	0.5 W	1	Cermet	100 ppm/°C	PC Pins	10 %	Through Hole	7 mm	0.276 in	0.276 in	7 mm	Top Adjustment	100 kOhms
Nidec Components Corporation CT-6EW204	0.5 W	0.5 W	1	Cermet	100 ppm/°C	PC Pins	10 %	Through Hole	7 mm	0.276 in	0.276 in	7 mm	Top Adjustment	200000 Ohms
Nidec Components Corporation CT-6EW102	0.5 W	0.5 W	1	Cermet	100 ppm/°C	PC Pins	10 %	Through Hole	7 mm	0.276 in	0.276 in	7 mm	Top Adjustment	1000 Ohms
Nidec Components Corporation CT-6EW201	0.5 W	0.5 W	1	Cermet	100 ppm/°C	PC Pins	10 %	Through Hole	7 mm	0.276 in	0.276 in	7 mm	Top Adjustment	200 Ohms
Nidec Components Corporation CT-6EW100	0.5 W	0.5 W	1	Cermet	250 ppm/°C	PC Pins	10 %	Through Hole	7 mm	0.276 in	0.276 in	7 mm	Top Adjustment	10 Ohms
