PTEA404120 Series

50-W, 48-V Input, 12-V Output, Isolated DC/DC Converter

Catalog

50-W, 48-V Input, 12-V Output, Isolated DC/DC Converter

Part	Voltage - Isolation	Voltage - Output 1	Number of Outputs	Applications	Voltage - Input (Max) [Max]	Package / Case	Mounting Type	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Power (Watts)	Efficiency	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]

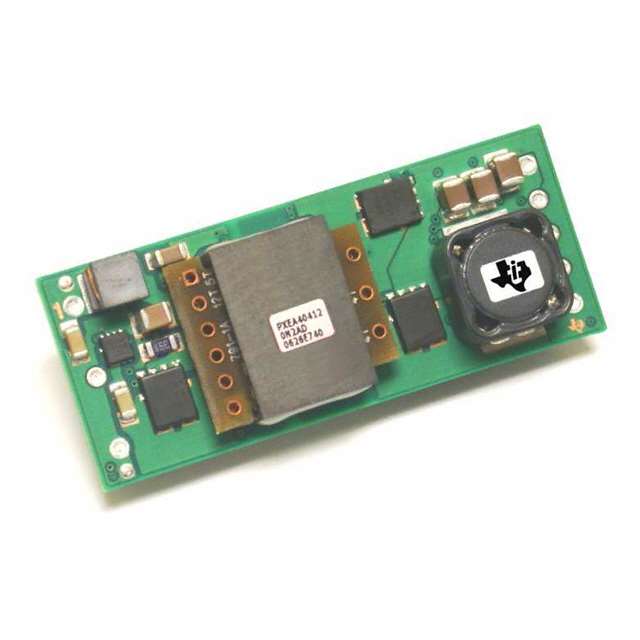

Texas Instruments PTEA404120N2AD	1.5 kV	12 V	1	ITE (Commercial)	75 V	1/8 Brick 8-DIP Module	Through Hole	Isolated Module	22.9 mm	0.52 "	56.4 mm	0.9 "	2.22 in	13.2 mm	35 V	50 W	91 %	4.2 A	85 °C	-40 °C

Catalog

50-W, 48-V Input, 12-V Output, Isolated DC/DC Converter

Key Features

• 50-W OutputInput Voltage Range: 36 V to 75 V91% Efficiency1500 VDCIsolationOn/Off ControlOvercurrent ProtectionDifferential Remote SenseAdjustable Output VoltageOutput Overvoltage ProtectionOver-Temperature ShutdownUndervoltage LockoutStandard 1/8-Brick FootprintUL Safety Agency Approval50-W OutputInput Voltage Range: 36 V to 75 V91% Efficiency1500 VDCIsolationOn/Off ControlOvercurrent ProtectionDifferential Remote SenseAdjustable Output VoltageOutput Overvoltage ProtectionOver-Temperature ShutdownUndervoltage LockoutStandard 1/8-Brick FootprintUL Safety Agency Approval

Description

The PTEA404120 power module is a single-output isolated DC/DC converter, housed in an industry standard one-eighth brick package. This module is rated up to 50 W with a maximum load current of 4.2 A. The PTEA404120 operates from a standard 48-V telecom central office (CO) supply and occupies less than 2.0 in2of PCB area. The modules offer OEMs a compact and flexible high-output power source in an industry standard footprint. They are suitable for distributed power applications in both telecom and computing environments, and may be used for intermediate bus converter architectures. Features include a remote On/Off control with optional logic polarity, an undervoltage lockout (UVLO), a differential remote sense, and an industry standard output voltage adjustment using an external resistor. Protection features include output overcurrent protection (OCP), overvoltage protection (OVP), and thermal shutdown (OTP). The modules are fully integrated for stand-alone operation, and require no additional components. The PTEA404120 power module is a single-output isolated DC/DC converter, housed in an industry standard one-eighth brick package. This module is rated up to 50 W with a maximum load current of 4.2 A. The PTEA404120 operates from a standard 48-V telecom central office (CO) supply and occupies less than 2.0 in2of PCB area. The modules offer OEMs a compact and flexible high-output power source in an industry standard footprint. They are suitable for distributed power applications in both telecom and computing environments, and may be used for intermediate bus converter architectures. Features include a remote On/Off control with optional logic polarity, an undervoltage lockout (UVLO), a differential remote sense, and an industry standard output voltage adjustment using an external resistor. Protection features include output overcurrent protection (OCP), overvoltage protection (OVP), and thermal shutdown (OTP). The modules are fully integrated for stand-alone operation, and require no additional components.
