0919-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

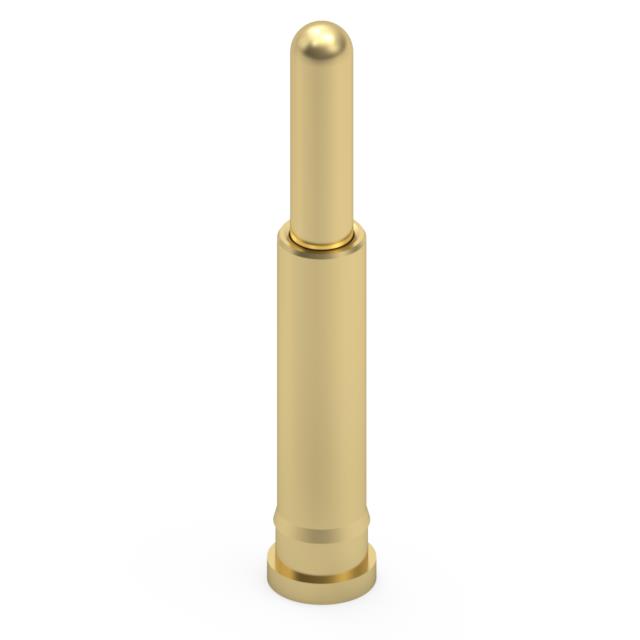

STANDARD SPRING LOADED PIN
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Finish Thickness | Contact Finish Thickness | Operating Force - Initial | Current Rating (Amps) | Recommended Working Height | Recommended Working Height [custom] | Mounting Type | Operating Force - Mid Compression | Contact Finish | Mating Cycles | Contact Material | Pad Layout Dimension | Pad Layout Dimension | Minimum Working Height [Min] | Minimum Working Height [Min] | Plunger Size [diameter] | Plunger Size [diameter] | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 10.64 mm | 0.419 " | 20 µin | 0.51 µm | 25 gf | 5.2 A | 9.14 mm | 0.36 in | Surface Mount | 100 gf | Gold | 1000000 | Brass Alloy | 0.072 in | 1.83 mm | 7.65 mm | 0.301 in | 0.042 in | 1.07 mm | Sleeve & Plunger (Pogo Pins) |
