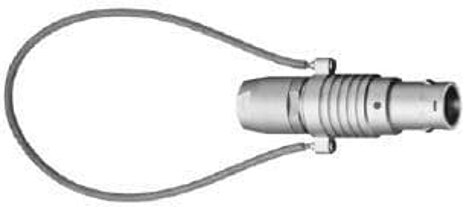

FNG.2B Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 14P GOLD SLDR CUP

Part	Shell Material	Number of Positions	Features	Color	Insert Material	Current Rating (Amps)	Shell Size - Insert	Contact Finish - Mating	Material Flammability Rating	Orientation [custom]	Connector Type	Contact Material	Shell Finish	Primary Material	Ingress Protection	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Mounting Type	Backshell Material, Plating	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Shielding	Cable Opening [Min]	Cable Opening [Max]	Shell Size - Insert [custom]
LEMO FNG.2B.314.CLAD62	Brass	14	Backshell Lanyard	Silver	Polyetheretherketone (PEEK)	6.5 A	314	Gold	UL94 V-0	G	Plug Male Pins	Brass	Chrome	Metal	IP50 - Dust Protected	Push-Pull	-55 C	250 °C	39.4 µin	1 µm	Free Hanging (In-Line)	Brass Chrome	6.2 mm	5.2 mm	0.205 in	0.244 "	Shielded
LEMO FNG.2B.310.CLAD62Z	Brass	10	Backshell Lanyard	Silver	Polyetheretherketone (PEEK)	8 A	310	Gold	UL94 V-0	G	Plug Male Pins	Brass	Chrome	Metal	IP50 - Dust Protected	Push-Pull	-55 C	250 °C	39.4 µin	1 µm	Free Hanging (In-Line)	Brass Chrome	6.2 mm	5.2 mm	0.205 in	0.244 "	Shielded
LEMO FNG.2B.304.CLAD62Z	Brass	4	Backshell Lanyard	Silver	Polyetheretherketone (PEEK)	15 A	304	Gold	UL94 V-0	G	Plug Male Pins	Brass	Chrome	Metal	IP50 - Dust Protected	Push-Pull	-55 C	250 °C	39.4 µin	1 µm	Free Hanging (In-Line)	Brass Chrome	6.2 mm	5.2 mm	0.205 in	0.244 "	Shielded
LEMO FNG.2B.304.CLAD72	Brass	4	Backshell Lanyard	Silver	Polyetheretherketone (PEEK)	15 A	304	Gold	UL94 V-0	G	Plug Male Pins	Brass	Chrome	Metal	IP50 - Dust Protected	Push-Pull	-55 C	250 °C	39.4 µin	1 µm	Free Hanging (In-Line)	Brass Chrome	7.2 mm	6.2 mm			Shielded	0.244 in	0.283 in
LEMO FNG.2B.303.CLAD62	Brass		Backshell Lanyard	Silver	Polyetheretherketone (PEEK)	17 A	303	Gold	UL94 V-0	G	Plug Male Pins	Brass	Chrome	Metal	IP50 - Dust Protected	Push-Pull	-55 C	250 °C	39.4 µin	1 µm	Free Hanging (In-Line)	Brass Chrome	6.2 mm	5.2 mm	0.205 in	0.244 "	Shielded
LEMO FNG.2B.316.CLAD92	Brass	16	Backshell Lanyard	Silver	Polyetheretherketone (PEEK)	6 A		Gold	UL94 V-0	G	Plug Male Pins	Brass	Chrome	Metal	IP50 - Dust Protected	Push-Pull	-55 C	250 °C	39.4 µin	1 µm	Free Hanging (In-Line)	Brass Chrome	9.2 mm	8.2 mm	0.323 in	0.362 in	Shielded			316
LEMO FNG.2B.302.CLAD72Z	Brass	2	Backshell Lanyard	Silver	Polyetheretherketone (PEEK)	25 A	302	Gold	UL94 V-0	G	Plug Male Pins	Brass	Chrome	Metal	IP50 - Dust Protected	Push-Pull	-55 C	250 °C	39.4 µin	1 µm	Free Hanging (In-Line)	Brass Chrome	7.2 mm	6.2 mm			Shielded	0.244 in	0.283 in
LEMO FNG.2B.304.CLAD52	Brass	4	Backshell Lanyard	Silver	Polyetheretherketone (PEEK)	15 A	304	Gold	UL94 V-0	G	Plug Male Pins	Brass	Chrome	Metal	IP50 - Dust Protected	Push-Pull	-55 C	250 °C	39.4 µin	1 µm	Free Hanging (In-Line)	Brass Chrome	5.2 mm	4.2 mm	0.165 "	0.205 in	Shielded
LEMO FNG.2B.310.CLAM42	Brass	10	Backshell Lanyard	Silver	Polyetheretherketone (PEEK)	8 A	310	Gold	UL94 V-0	G	Plug Male Pins	Brass	Chrome	Metal	IP50 - Dust Protected	Push-Pull	-55 C	250 °C	39.4 µin	1 µm	Free Hanging (In-Line)	Brass Chrome	4 mm	3.1 mm	0.122 in	0.157 in	Shielded
LEMO FNG.2B.326.CLAD72Z	Brass	26	Backshell Lanyard	Silver	Polyetheretherketone (PEEK)	2 A	326	Gold	UL94 V-0	G	Plug Male Pins	Brass	Chrome	Metal	IP50 - Dust Protected	Push-Pull	-55 C	250 °C	39.4 µin	1 µm	Free Hanging (In-Line)	Brass Chrome	7.2 mm	6.2 mm			Shielded	0.244 in	0.283 in
