10SVPB Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

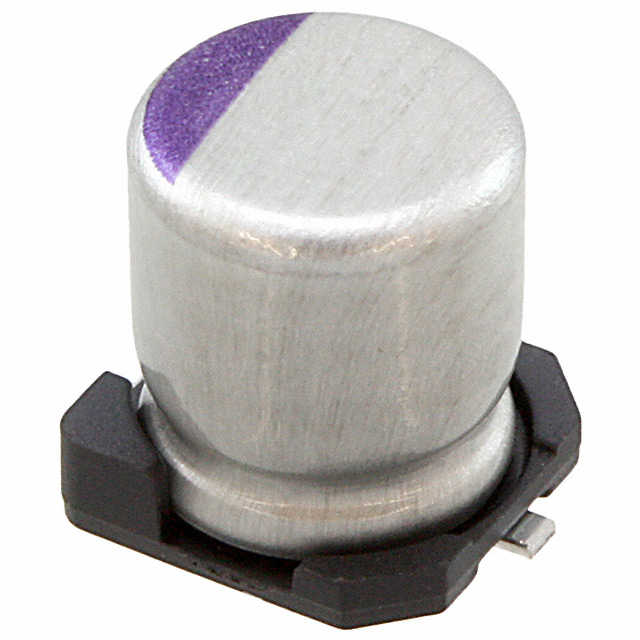

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 56 ΜF, 10 V, RADIAL CAN - SMD, 0.04 OHM
| Part | Tolerance | Ripple Current @ Low Frequency | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Type | Ripple Current @ High Frequency | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Mounting Type | Voltage - Rated | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Applications | Capacitance | Size / Dimension [diameter] | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 20 % | 83.5 mA | 40 mOhm | 1000 Hrs | Polymer | 1.67 A | 0.26 in | 6.6 mm | 6.6 mm | 0.26 in | Surface Mount | 10 V | 0.197 in | 5 mm | -55 C | 105 ░C | Radial Can - SMD | General Purpose | 56 µF | 0.248 " | 6.3 mm |
