K5v0 Series Series

Tactile Switches SWITCH TACTILE Illuminated Tact Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Tactile Switches SWITCH TACTILE Illuminated Tact Switch

Part	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Contact Rating @ Voltage	Actuator Orientation	Outline [y]	Outline [x]	Switch Function	Circuit	Actuator Type	Mounting Type	Ingress Protection	Illumination	Features	Switch Travel	Termination Style	Illumination Type, Color	Actuator Length, Right Angle [custom]	Actuator Length, Right Angle	Actuator Height off PCB, Vertical [z]
Littelfuse/Commercial Vehicle Products K5V1RG43T	25000 Steps	85 °C	-40 °C	400 gf	0.1 A 32 VDC	Side Actuated	10.1 mm	8 mm	On-Mom	SPDT	Translucent	Through Hole Right Angle	IP40	Illuminated	Tactile Feedback	1.2 mm	PC Pin	Green/Red LED	12.4 mm

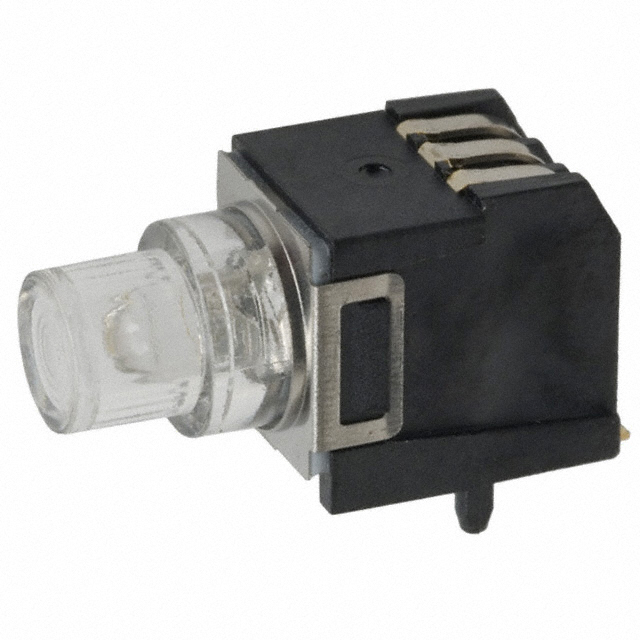

Littelfuse/Commercial Vehicle Products K5V1RD43G	25000 Steps	85 °C	-40 °C	400 gf	0.1 A 32 VDC	Side Actuated	10.1 mm	8 mm	On-Mom	SPDT	Translucent	Surface Mount Right Angle	IP40	Illuminated	Tactile Feedback	1.2 mm	Gull Wing	LED Red		17.1 mm

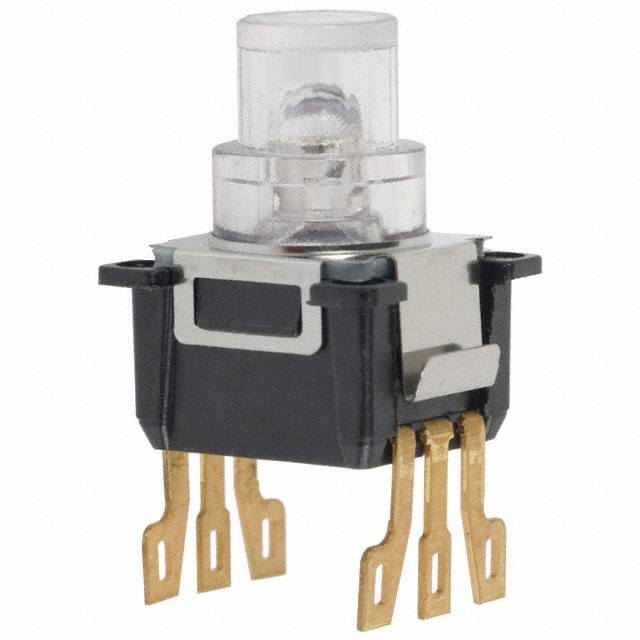

Littelfuse/Commercial Vehicle Products K5V1YG43P	25000 Steps	85 °C	-40 °C	400 gf	0.1 A 32 VDC	Top Actuated	8.5 mm	9.7 mm	On-Mom	SPDT	Translucent		IP40	Illuminated	Tactile Feedback	1.2 mm	Solder Lug	Green LED Yellow			13.35 mm

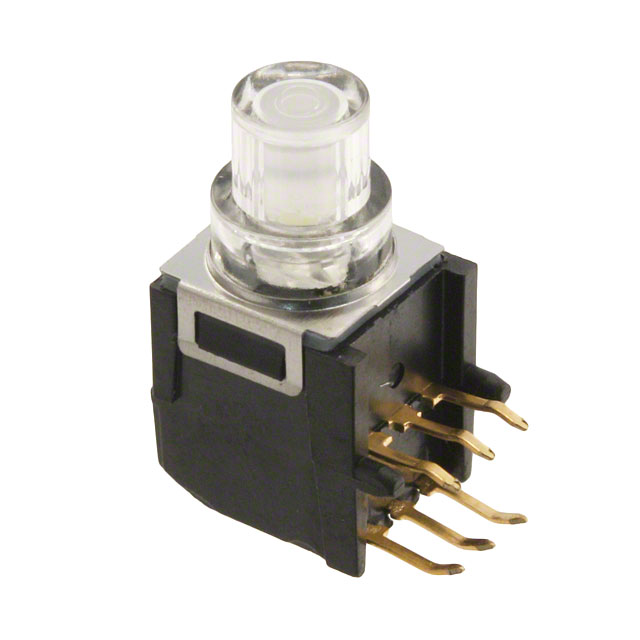

Littelfuse/Commercial Vehicle Products K5V1WS43T	25000 Steps	85 °C	-40 °C	400 gf	0.1 A 32 VDC	Side Actuated	10.1 mm	8 mm	On-Mom	SPDT	Translucent	Through Hole Right Angle	IP40	Illuminated	Tactile Feedback	1.2 mm	PC Pin	LED White	12.4 mm
Littelfuse/Commercial Vehicle Products K5V2GN43TP3	25000 Steps	85 °C	-40 °C	400 gf	0.1 A 32 VDC	Side Actuated	10.1 mm	8 mm	On-Mom	SPDT	Translucent	Through Hole Right Angle	IP40	Illuminated	Tactile Feedback	1.2 mm	PC Pin	Green LED	12.4 mm
Littelfuse/Commercial Vehicle Products K5V19023P	25000 Steps	85 °C	-40 °C	200 gf	0.1 A 32 VDC	Top Actuated	8.5 mm	9.7 mm	On-Mom	SPDT	Round Button		IP40	Non-Illuminated	Tactile Feedback	1.2 mm	Solder Lug				13.35 mm
Littelfuse/Commercial Vehicle Products K5V2WX43G	25000 Steps	85 °C	-40 °C	400 gf	0.1 A 32 VDC	Side Actuated	10.1 mm	8 mm	On-Mom	SPDT	Translucent	Surface Mount Right Angle	IP40	Illuminated	Tactile Feedback	1.2 mm	Gull Wing	LED White		17.1 mm
Littelfuse/Commercial Vehicle Products K5V1YE43G	25000 Steps	85 °C	-40 °C	400 gf	0.1 A 32 VDC	Side Actuated	10.1 mm	8 mm	On-Mom	SPDT	Translucent	Surface Mount Right Angle	IP40	Illuminated	Tactile Feedback	1.2 mm	Gull Wing	LED Yellow		17.1 mm
Littelfuse/Commercial Vehicle Products K5V1RD43P	25000 Steps	85 °C	-40 °C	400 gf	0.1 A 32 VDC	Top Actuated	8.5 mm	9.7 mm	On-Mom	SPDT	Translucent		IP40	Illuminated	Tactile Feedback	1.2 mm	Solder Lug	LED Red			13.35 mm
Littelfuse/Commercial Vehicle Products K5V1GN43G	25000 Steps	85 °C	-40 °C	400 gf	0.1 A 32 VDC	Side Actuated	10.1 mm	8 mm	On-Mom	SPDT	Translucent	Surface Mount Right Angle	IP40	Illuminated	Tactile Feedback	1.2 mm	Gull Wing	Green LED		17.1 mm

Catalog

Tactile Switches SWITCH TACTILE Illuminated Tact Switch

Key Features

• Reduced space usage on board

• Excellent ergonomics

• High bright leds

Description

C&K’s K5V series illuminated tact switch comes with high, bright LEDs that are able to meet customization requirements. With its reduced space usage on board – and excellent ergonomics – the K5V is perfect for network infrastructure, automotive and medical applications.
