IC Series

Pluggable Terminal Blocks 3 Pos 5.08mm Invert Plug 24-12AWG Screw

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 3 Pos 5.08mm Invert Plug 24-12AWG Screw

Catalog

Pluggable Terminal Blocks 3 Pos 5.08mm Invert Plug 24-12AWG Screw

Part	Number of Levels	Positions Per Level	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Current - IEC	Mounting Type	Features	Contact Mating Finish	Number of Positions	Pitch	Pitch	Voltage - IEC	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Color	Plug Wire Entry	Termination Style	Insulation Height [custom]	Insulation Height [custom]	Screw Size	Housing Material	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Material Flammability Rating	Wire Strip Length	Voltage - UL	Current - UL	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Insulation Height	Insulation Height	Contact Tail Length	Contact Tail Length	Type	Header Orientation
Phoenix Contact 1993750	1	2	2.5 mm²	0.2 mm²	12 A	Free Hanging (In-Line)	Mating Flange	Tin	2	5.08 mm	0.2 in	630 V	30 AWG	12 AWG	Black	180 °	Screw - Rising Cage Clamp

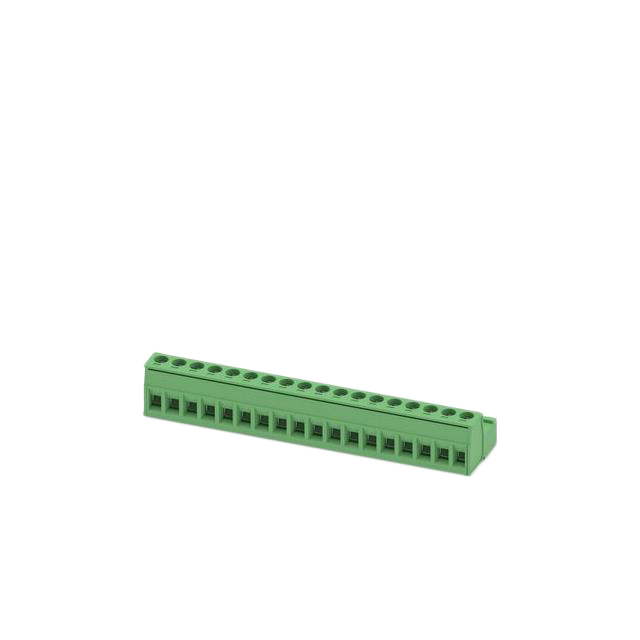

Phoenix Contact 1786336	1	18	2.5 mm²	0.2 mm²	12 A	Free Hanging (In-Line)		Tin	18	5.08 mm	0.2 in	630 V	30 AWG	12 AWG	Green	180 °	Screw - Rising Cage Clamp	0.591 in	15 mm	M3	Polyamide (PA) Nylon	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	UL94 V-0	7 mm	300 V	10 A
Phoenix Contact 1825323	1	3	2.5 mm²	0.2 mm²	12 A	Free Hanging (In-Line)	Mating Flange	Tin		5.08 mm	0.2 in	630 V	30 AWG	12 AWG	Green	180 °	Screw - Rising Cage Clamp	0.591 in	15 mm	M3	Polyamide (PA) Nylon	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	UL94 V-0	7 mm	300 V	10 A	2.5 mm˛	0.2 mm˛
Phoenix Contact 1825527	1	4	2.5 mm²	0.2 mm²	12 A	Free Hanging (In-Line)	Mating Flange	Tin	4	5.08 mm	0.2 in	630 V	30 AWG	12 AWG	Green	180 °	Screw - Rising Cage Clamp											300 V	10 A
Phoenix Contact 1825624	1	14	2.5 mm²	0.2 mm²	12 A	Free Hanging (In-Line)	Mating Flange	Tin	14	5.08 mm	0.2 in	630 V	30 AWG	12 AWG	Green	180 °	Screw - Rising Cage Clamp											300 V	10 A
Phoenix Contact 1825475	1	18	2.5 mm²	0.2 mm²	12 A	Free Hanging (In-Line)	Mating Flange	Tin	18	5.08 mm	0.2 in	630 V	30 AWG	12 AWG	Green	180 °	Screw - Rising Cage Clamp											300 V	10 A
Phoenix Contact 1735626	1	4			12 A	Through Hole	Mating and Mounting Flange Retention Latches	Gold	4	5.08 mm	0.2 in	630 V			Green		Solder				Polyamide (PA) Nylon					UL94 V-0		300 V	10 A			10.2 mm	0.402 in	0.138 in	3.5 mm	Header Female Sockets	90° Right Angle
Phoenix Contact 1786420	1	4			12 A	Through Hole	Retention Latches	Tin	4	5.08 mm	0.2 in	630 V			Green		Solder											300 V	10 A							Header Female Sockets	90° Right Angle

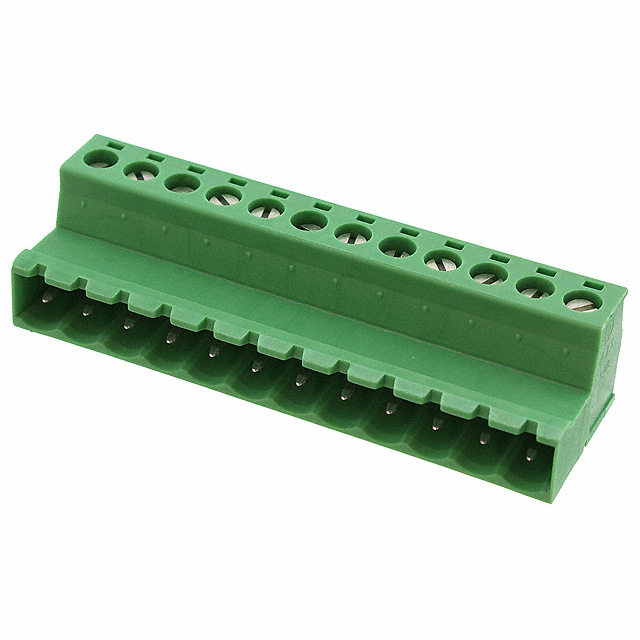

Phoenix Contact 1786271	1	12	2.5 mm²	0.2 mm²	12 A	Free Hanging (In-Line)		Tin	12	5.08 mm	0.2 in	630 V	30 AWG	12 AWG	Green	180 °	Screw - Rising Cage Clamp	0.591 in	15 mm	M3	Polyamide (PA) Nylon	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	UL94 V-0	7 mm	300 V	10 A	2.5 mm˛	0.2 mm˛
Phoenix Contact 1786530	1	15			12 A	Through Hole	Retention Latches	Tin	15	5.08 mm	0.2 in	630 V			Green		Solder											300 V	10 A							Header Female Sockets	90° Right Angle
