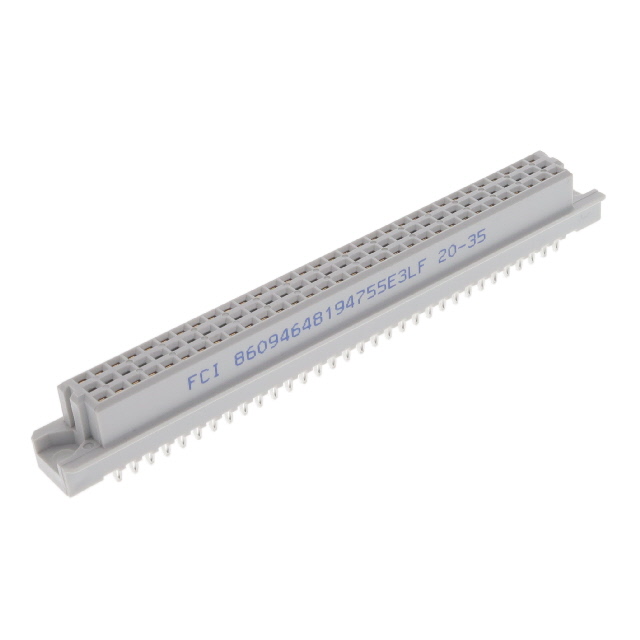

8609464819 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
DIN STR RECEPT PRESSFIT
| Part | Current Rating (Amps) | Number of Rows | Level, Class | Pitch [x] | Pitch [x] | Termination | Number of Positions Loaded | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Material Flammability Rating | Mounting Type | Connector Type | Material - Insulation | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 1.5 A | 3 | 1 | 2.54 mm | 0.1 in | Press-Fit | 64 | 96 | -55 °C | 125 °C | Gold | UL94 V-0 | Through Hole | Receptacle Female Sockets | Polyester Thermoplastic | C |
Amphenol ICC (FCI) | 1.5 A | 3 | 2.54 mm | 0.1 in | Press-Fit | 64 | 96 | -55 °C | 125 °C | Gold | UL94 V-0 | Through Hole | Receptacle Female Sockets | Polyester Thermoplastic | C | |
 Amphenol ICC (FCI) | 1.5 A | 3 | 2.54 mm | 0.1 in | Press-Fit | 64 | 96 | -55 °C | 125 °C | Gold | UL94 V-0 | Through Hole | Receptacle Female Sockets | Polyester Thermoplastic | C | |
Amphenol ICC (FCI) | 1.5 A | 3 | 3 | 2.54 mm | 0.1 in | Press-Fit | 64 | 96 | -55 °C | 125 °C | Gold | UL94 V-0 | Through Hole | Receptacle Female Sockets | Polyester Thermoplastic | C |
Amphenol ICC (FCI) | 1.5 A | 3 | 1 | 2.54 mm | 0.1 in | Press-Fit | 64 | 96 | -55 °C | 125 °C | Gold | UL94 V-0 | Through Hole | Receptacle Female Sockets | Polyester Thermoplastic | C |
Amphenol ICC (FCI) | 1.5 A | 3 | 3 | 2.54 mm | 0.1 in | Press-Fit | 64 | 96 | -55 °C | 125 °C | Gold | UL94 V-0 | Through Hole | Receptacle Female Sockets | Polyester Thermoplastic | C |
Amphenol ICC (FCI) | 1.5 A | 3 | 2.54 mm | 0.1 in | Press-Fit | 64 | 96 | -55 °C | 125 °C | Gold | UL94 V-0 | Through Hole | Receptacle Female Sockets | Polyester Thermoplastic | ||
Amphenol ICC (FCI) | 1.5 A | 3 | 1 | 2.54 mm | 0.1 in | Press-Fit | 64 | 96 | -55 °C | 125 °C | Gold | UL94 V-0 | Through Hole | Receptacle Female Sockets | Polyester Thermoplastic | C |
Amphenol ICC (FCI) | 1.5 A | 3 | 2.54 mm | 0.1 in | Press-Fit | 64 | 96 | -55 °C | 125 °C | Gold | UL94 V-0 | Through Hole | Receptacle Female Sockets | Polyester Thermoplastic | C | |
Amphenol ICC (FCI) | 1.5 A | 3 | 3 | 2.54 mm | 0.1 in | Press-Fit | 64 | 96 | -55 °C | 125 °C | Gold | UL94 V-0 | Through Hole | Receptacle Female Sockets | Polyester Thermoplastic | C |
